MS-E20
Masung
The E20 supports a variety of compatible self-adhesive media, including gap labels, continuous paper, perforated paper, and waybill-style labels. This flexibility allows the printer to handle different label formats and materials for shipping, product identification, warehouse management, and automated labeling applications.
Using direct thermal printing technology, the E20 delivers 300 dpi output at speeds of up to 250 mm/s. Its maximum print width of 104 mm accommodates a broad range of label formats, while adjustable printing speed and print-density settings allow users to balance output speed and print quality according to application requirements.
For industrial labeling, the E20 can produce barcodes, product information, shipping details, warehouse identification labels, and other variable data directly onto compatible thermal media.
The E20 integrates an automatic label peeler to separate printed adhesive labels from their backing material after printing. This helps operators access individual labels more efficiently and can make the printer easier to integrate into workflows where labels need to be applied immediately after printing.
The automatic peeling function is particularly useful for repetitive product identification, packaging, order fulfillment, and workstation labeling tasks where manually separating each label can slow down the process.
The E20 is designed to accommodate different types of label media, including gap labels, continuous paper, perforated paper, and waybill-style media. A transmissive sensor helps detect compatible media, while the printer can support different post-printing workflows depending on the application.
This makes the E20 suitable for businesses that need one embedded printer platform for multiple label formats rather than a dedicated printer for only one type of adhesive label.

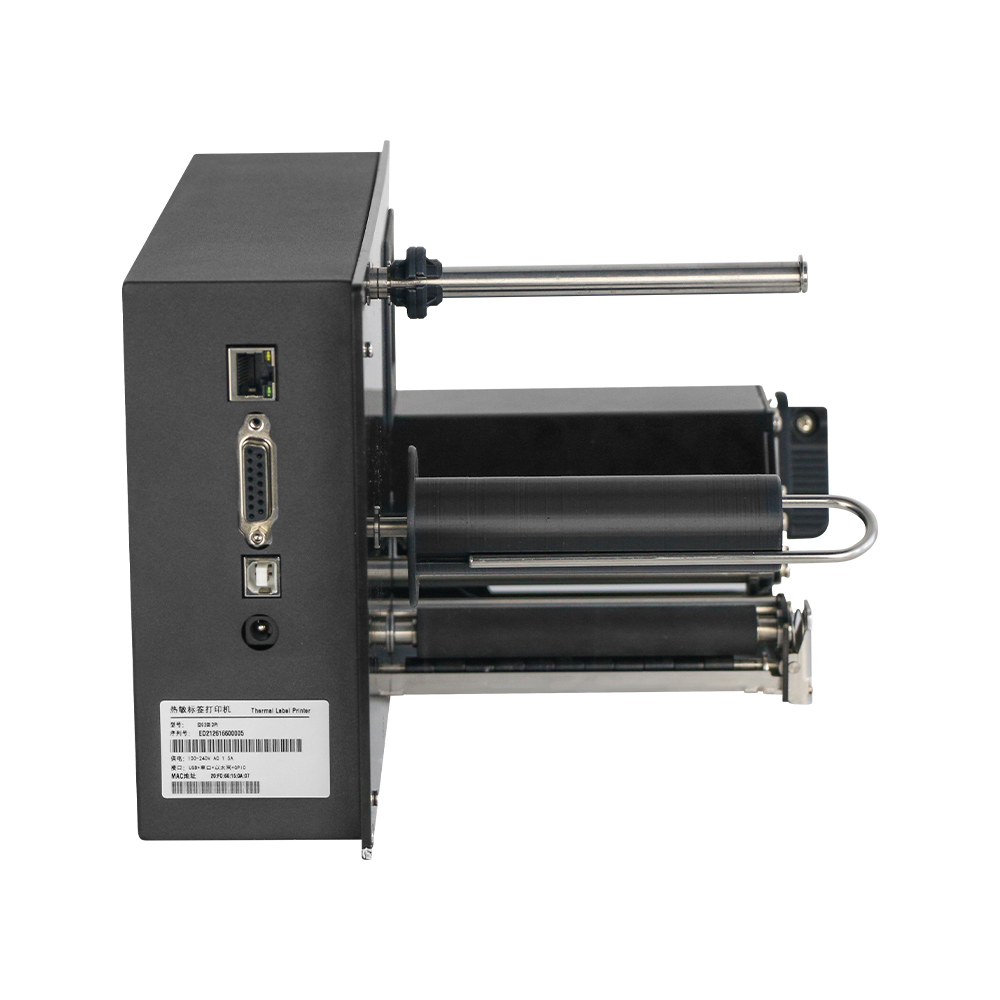

The E20 can be integrated into different equipment and labeling systems through USB, Ethernet, and GPIO connectivity. The GPIO interface provides an option for communication with automated equipment, while Ethernet supports network-based printing environments.
Its color touchscreen provides a practical interface for printer configuration and daily operation. Firmware updates, print-density adjustment, and other configuration functions further support integration into changing industrial workflows.
The Masung E20 is suitable for warehousing, distribution, shipping and logistics, food and beverage, retail, product identification, packaging, and goods labeling. It can be embedded into packing stations, self-service equipment, automated labeling machines, kiosks, production lines, and other customized systems.
As a customizable embedded thermal label printer, the E20 can also be adapted for OEM/ODM projects, including mechanical integration, enclosure design, label specifications, software integration, communication interfaces, GPIO control, firmware, and branding.
Model | E20 |
Printer Type | Embedded Thermal Label Printer |
Printing Method | Direct Thermal Printing |
Print Resolution | 300 dpi |
Maximum Printing Speed | 250 mm/s |
Maximum Print Width | 104 mm |
Label Width | 50–110 mm |
Minimum Label Height | 20 mm |
Label Thickness | 0.06–0.35 mm |
Maximum Paper Roll Diameter | 150 mm |
Supported Label Types | Gap Labels, Continuous Paper, Perforated Paper, Waybill Labels |
Media Detection | Transmissive Sensor |
Post-Printing Action | Automatic Peeling / Tear-Off |
Interfaces | USB, Ethernet, GPIO (DB15) |
Processor Frequency | 800+ MHz |
Input Power | AC 100–240 V, 50/60 Hz |
Output Power | DC 24 V, 4.17 A |
Operating Temperature | 0–45°C |
Operating Humidity | 25–85% RH, non-condensing |
Customization | OEM/ODM, Mechanical Integration, Software Integration, GPIO, Firmware, Branding |
Typical Applications | Warehousing, Distribution, Shipping & Logistics, Food & Beverage, Retail, Product & Goods Labelling |
Dimensions | 340 × 270 × 210 mm |
Weight | 4 kg |
