MS-LP212
MASUNG
With a 300 DPI resolution, 56 mm maximum printing width, and printing speeds of up to 120 mm/s, the MS-LP212 delivers sharp text, barcodes, and numerical information on self-adhesive weighing labels. It is suitable for printing product weights, prices, dates, and identification information directly from connected weighing scales.
The integrated automatic peeling mechanism separates printed adhesive labels from their backing paper, making them easier to collect and apply to weighed products. The liner recycling system collects used backing paper, helping maintain a cleaner and more organised weighing and labelling process.
Equipped with intelligent sensors for label gap detection, printhead temperature monitoring, and cover status detection, the MS-LP212 supports stable printing during repeated weighing operations. Its industrial-grade construction and 100 km rated printing life make it suitable for demanding retail weighing environments.

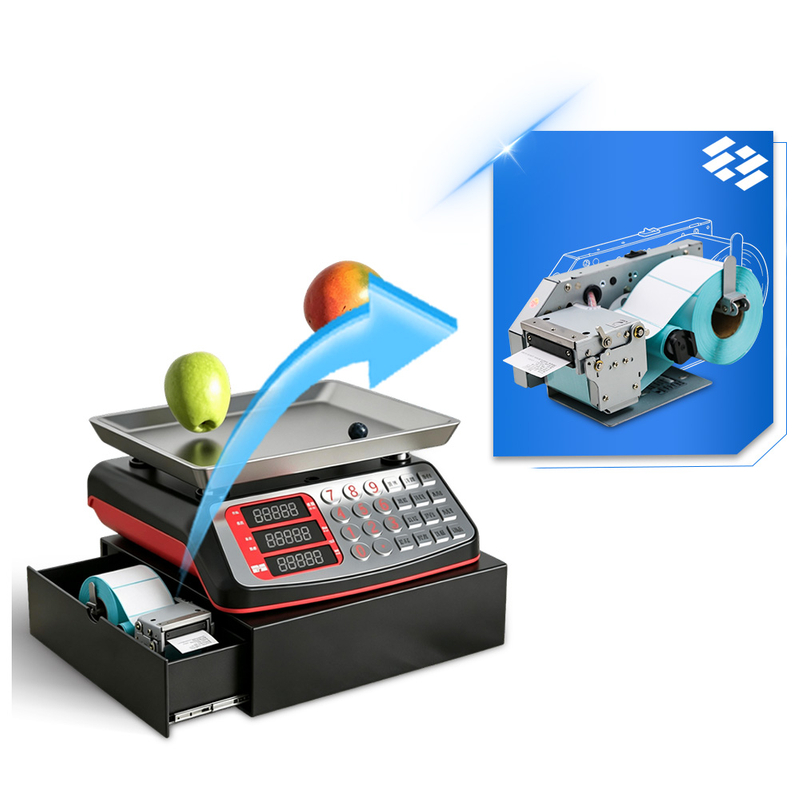

The compact embedded structure supports integration into electronic price-computing scales, supermarket weighing scales, and automatic weighing and labelling equipment. With USB and RS232 communication interfaces, the printer can connect to compatible weighing control systems for automatic label printing after weight and price calculations.
The MS-LP212 Embedded Weighing Scale Label Printer is designed for supermarket weighing scales, fresh produce scales, meat and seafood weighing stations, deli counters, and automatic weighing and labelling systems. Masung provides OEM/ODM customisation options for weighing scale manufacturers, including mechanical integration, communication interfaces, firmware adaptation, and label format configuration to meet specific equipment requirements.
| Model | MS-LP212 |
|---|---|
| Main Control Board | EP802_3_TU |
| Printing Method | Line thermal printing |
| Resolution | 300 dpi |
| Dots per Line | 448 dots/line |
| Printing Width | 56 mm (max) |
| Paper Roll Width / Thickness | 35–60 mm / 0.06–0.16 mm |
| Paper Feeding Method | Manual feed (horizontal 180°) |
| Printing Length | 100 KM |
| Printing Speed | 120 mm/s |
| Paper Output | Automatic peel |
| Print Formats | Inverse, underline, italic, bold, etc. |
| Baud Rate | 9600, 19200, 38400, 115200 |
| ASCII Fonts | 9×17, 12×24 |
| Chinese Fonts | 24×24 dots |
| Print Head Temperature | Temperature sensor |
| Lever Detection | Micro switch |
| Gap Detection (Emitter & Receiver) | Reflective optical sensor |
| Paper Out Detection | — |
| Cover Open Detection | Mechanical optical sensor |
| Average Current | 2A @ 24V (32.1% printing dots) |
| Peak Current | 5.8A |
| Communication Interface | RS232, USB |
| Thermal Paper Specifications | Paper Type: Self-adhesive roll with thermal coating Roll Dimensions: Inner diameter ≥ 38 mm, Outer diameter ≤ 100 mm |
| Operating Temperature | -10 ~ 50°C (non-condensing) |
| Operating Humidity | 20% ~ 85% RH (at 40°C, 85% RH) |
| Storage Temperature | -20 ~ 70°C (non-condensing) |
| Storage Humidity | 10% ~ 90% RH (at 50°C, 90% RH) |
| Dimensions (D×W×H) | 107.8 × 238.26 × 106.27 mm |
| Weight | 1.7 kg |
