Reliable Design for Integrated Equipment
Built for equipment integration, the MS-EP8300 combines a compact 168 × 121.4 × 62.8 mm structure with practical paper-handling and monitoring functions. Automatic horizontal 180° paper feeding, top-loading access, paper-end detection, black-mark detection, and optional anti-paper-jam and paper-output detection help maintain smooth operation. Its rounded plastic housing also provides a practical and modern appearance for installation inside commercial equipment.
Easy Maintenance and Long Service Life
A side-opening print head design makes routine maintenance and paper replacement more convenient, while built-in detection functions help operators identify operating conditions quickly. The print mechanism is rated for up to 100 km of printing, while the cutter supports up to 1 million cuts, making the MS-EP8300 suitable for applications involving frequent receipt or ticket output.
Flexible Paper and Cutting Options
The printer supports standard thermal paper rolls and black-mark thermal paper, with a maximum paper width of 80 mm and paper thickness from 60 to 150 μm. It supports both full-cut and partial-cut modes, allowing system manufacturers to select the appropriate output format for receipts, transaction slips, kitchen tickets, or other printed documents. The mechanism can accommodate rolls up to 100 mm in diameter, reducing the frequency of paper replacement.
Multiple Interfaces and Intelligent Detection
The MS-EP8300 comes with RS232 and USB interfaces alongside its power connection, making it suitable for integration with different host systems. Its monitoring functions include print-head temperature detection, cover-open detection, paper-out detection, black-mark detection, and paper-near-end detection. Higher configurations can additionally provide anti-jam detection, paper-output detection, and a high-brightness reminder light strip to make printed receipts easier to identify.
Applications and Integration Scenarios
The MS-EP8300 integratable thermal receipt printer is suitable for retail POS terminals, supermarkets, convenience stores, restaurants, cafés, and self-checkout systems. Its high-speed printing and automatic cutting make it practical for busy checkout environments where receipts need to be produced quickly and consistently.
In restaurants and cafés, the printer can be integrated into ordering terminals, POS systems, or kitchen equipment to print customer receipts, order tickets, and transaction records. Full or partial cutting helps separate individual documents neatly during busy service periods.

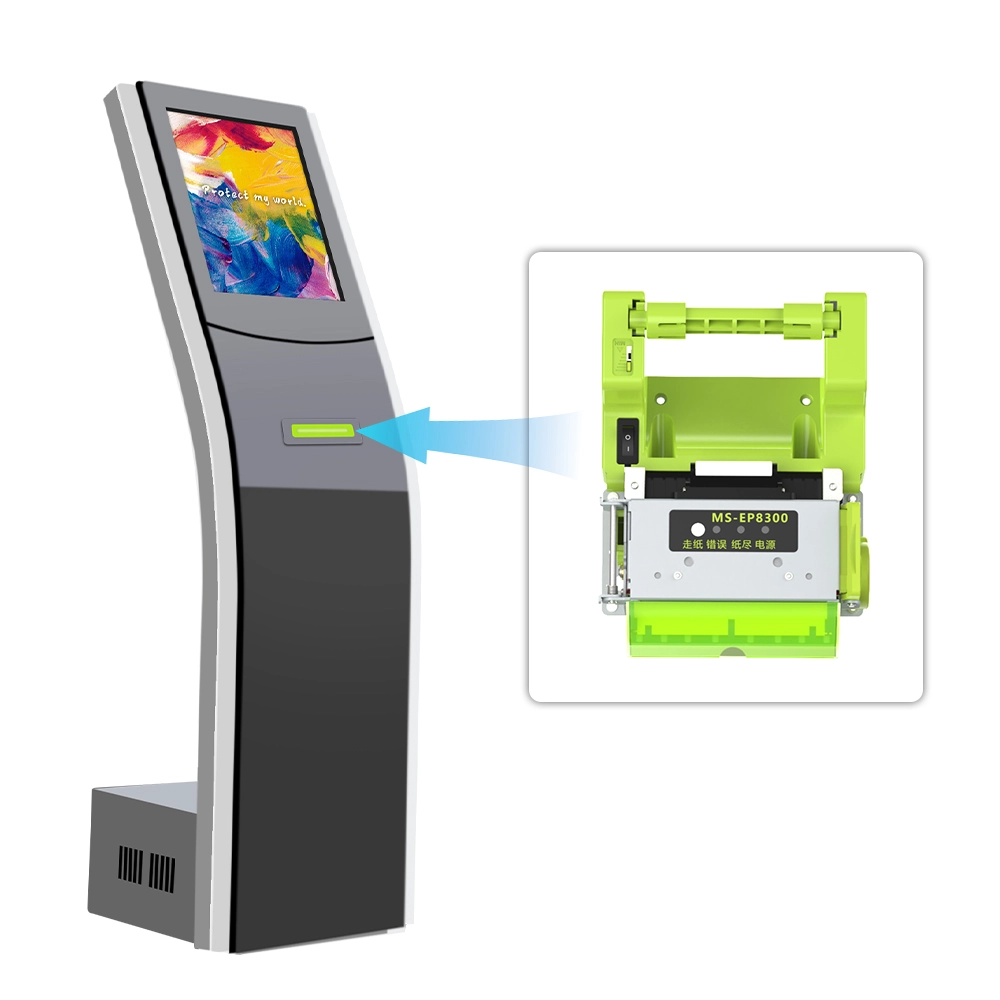

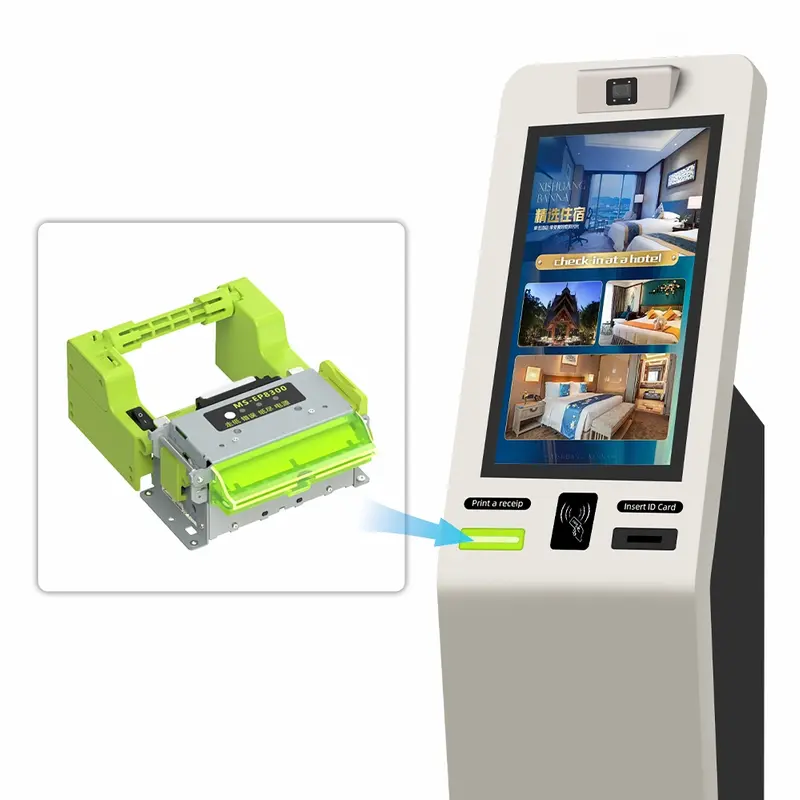

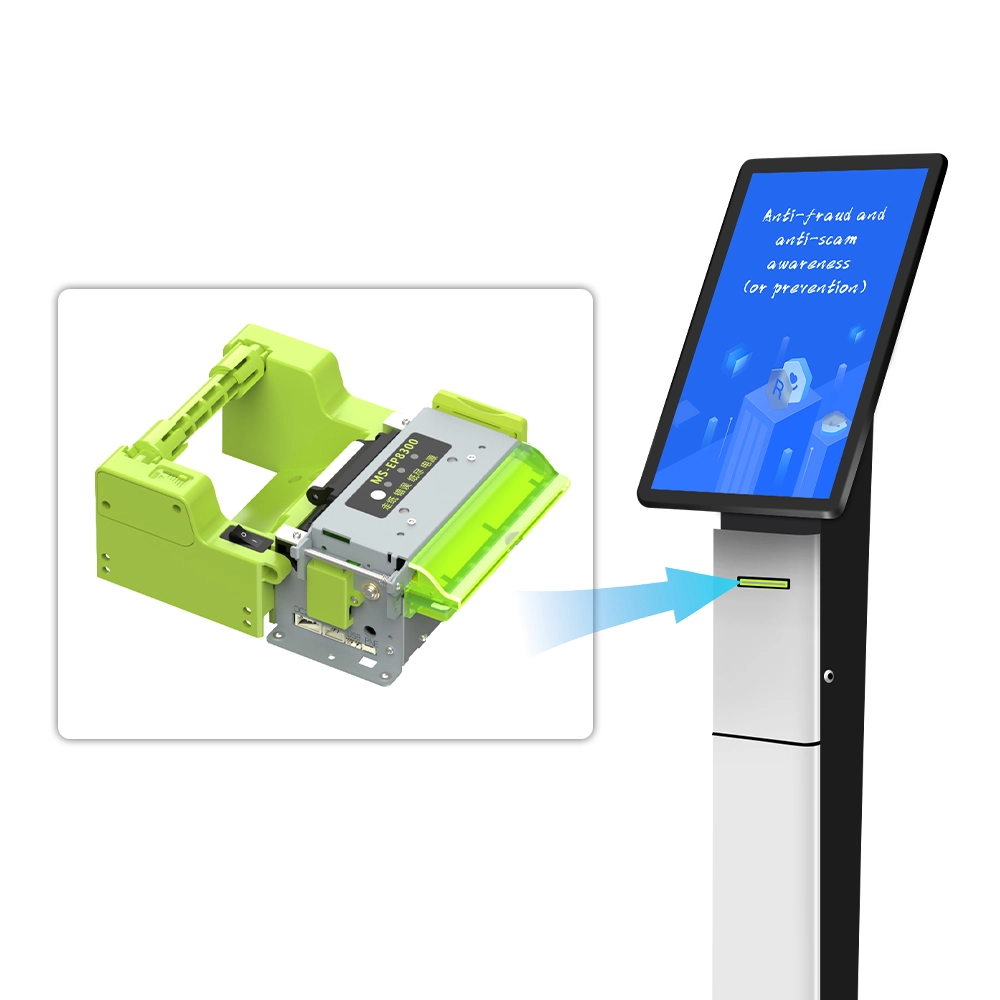

For self-service kiosks and payment terminals, the compact printer mechanism can be integrated into the host equipment to provide on-demand transaction receipts or vouchers. Its USB and RS232 interfaces support connection with different control systems, while optional output detection and reminder lighting can improve the user experience in unattended environments.
Configuration and Customization Availability
For equipment manufacturers and system integrators, the MS-EP8300 can be configured according to the requirements of the host application. Available configurations include USB or RS232 connectivity, full or partial cutting, standard or black-mark thermal paper support, and optional anti-jam, paper-output detection, and high-brightness reminder functions.
Specification:
| Parameter | Specification |
| Model No. | MS-EP8300 |
| Printing Method | Line Thermal Printing |
| Resolution | 300 dpi |
| Heating Elements | 640 dots |
| Printing Speed | High-speed mode: 300 mm/s |
| Printing Width | 80 mm (max.) |
| Paper Width | 80 mm (max.) |
| Paper Thickness | 60–150 μm |
| Paper Roll Capacity | Ø100 mm (max.) |
| Paper Feeding | Automatic feeding (horizontal 180°) / Top loading |
| Cutting Method | Full cut / Partial cut |
| Printer Life | 100 km |
| Cutter Life | 1 million cuts |
| Operating Voltage | 24 ± 5% V |
| Standby Current | 35 mA |
| Printing Current | 1–3 A (depending on content, speed, and density) |
| Standard Interfaces | Power, RS232, USB |
| Supported Paper | Standard thermal paper rolls / Thermal black-mark paper rolls |
| Detection Functions | Temperature detection, cover-open detection, paper-out detection, black-mark detection |
| Paper Holder | Paper-near-end detection |
| Paper Outlet | Anti-paper-jam detection (high-end version), paper-output detection (high-end version) |
| Indicators | Power indicator, paper-out indicator, error indicator, paper-output indicator |
| Warning Light | High-brightness warning light bar (high-end version) |
| Buttons | Power switch, paper feed button |
| Adjustment Lever | Adjustment lever for remaining paper level of the paper-low warning |
| Operating Temperature | 0–50°C (non-condensing) |
| Operating Humidity | 20%–80% RH (non-condensing) |
| Dimension: | 168 mm x 121.4 mm x 62.8 mm |
| Net Weight | 0.7 kg |
