MS-S22
Masung
The MS-S22 thermal sublimation card printer delivers detailed images, sharp text, and consistent color reproduction at 300 DPI resolution. It supports printing photographs, logos, identification details, QR codes, barcodes, and serial numbers, making it suitable for professional ID cards, employee badges, and personalized membership cards.

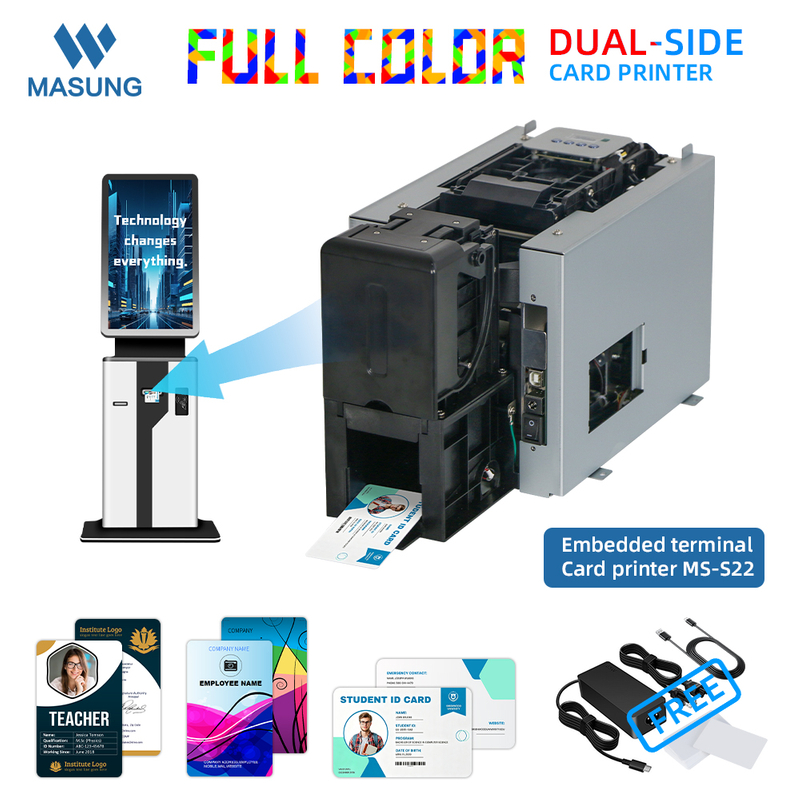

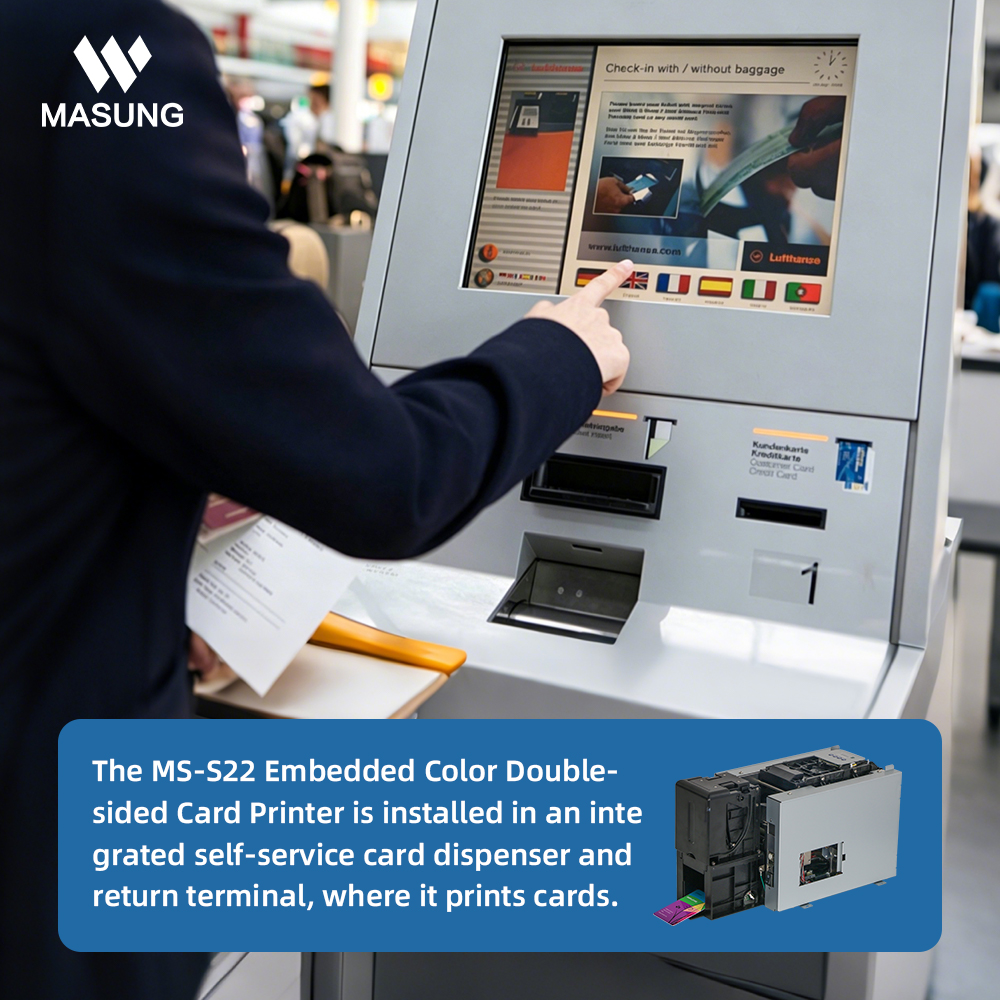

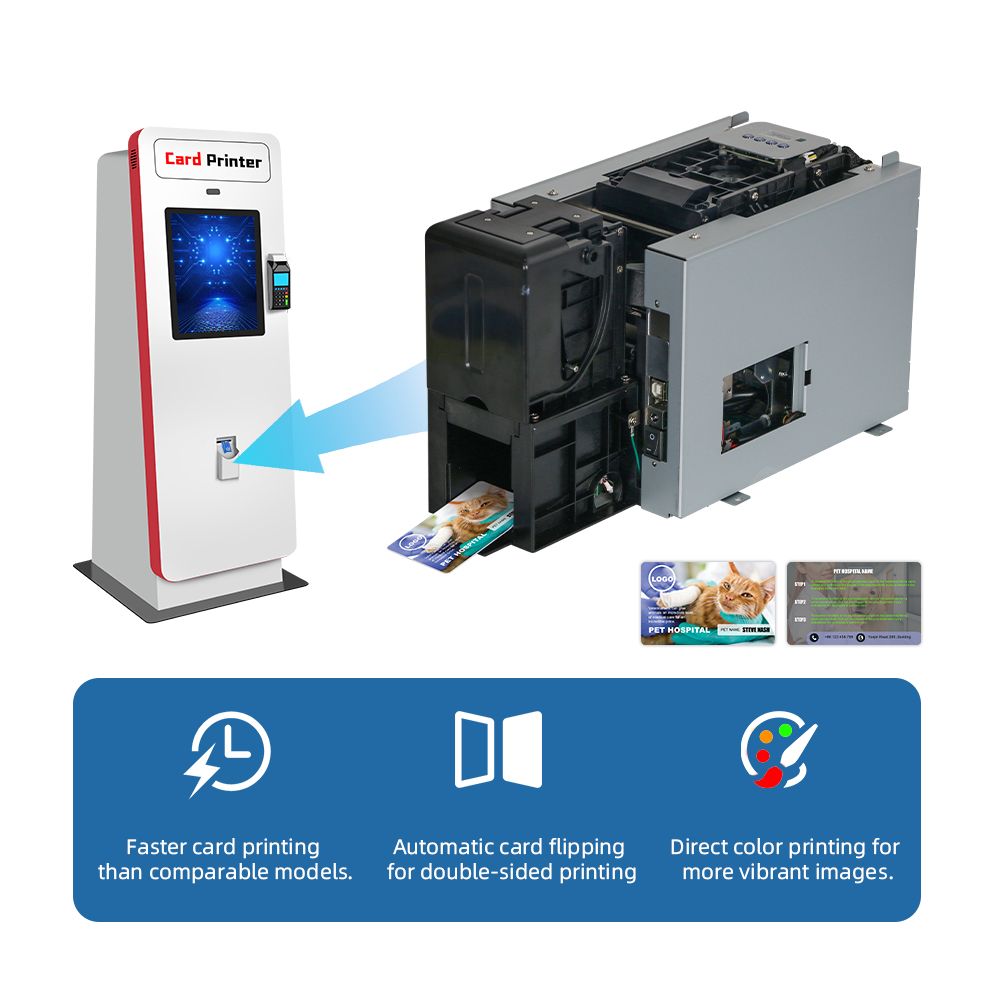

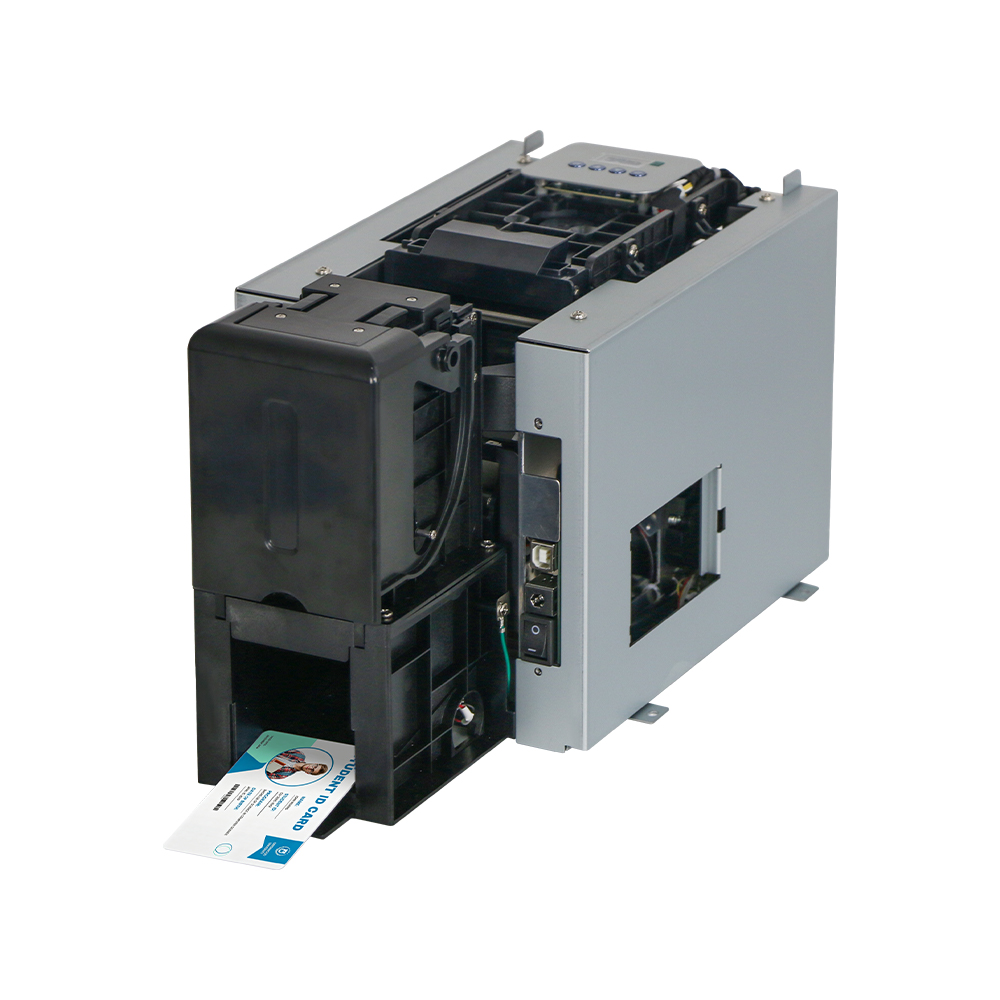

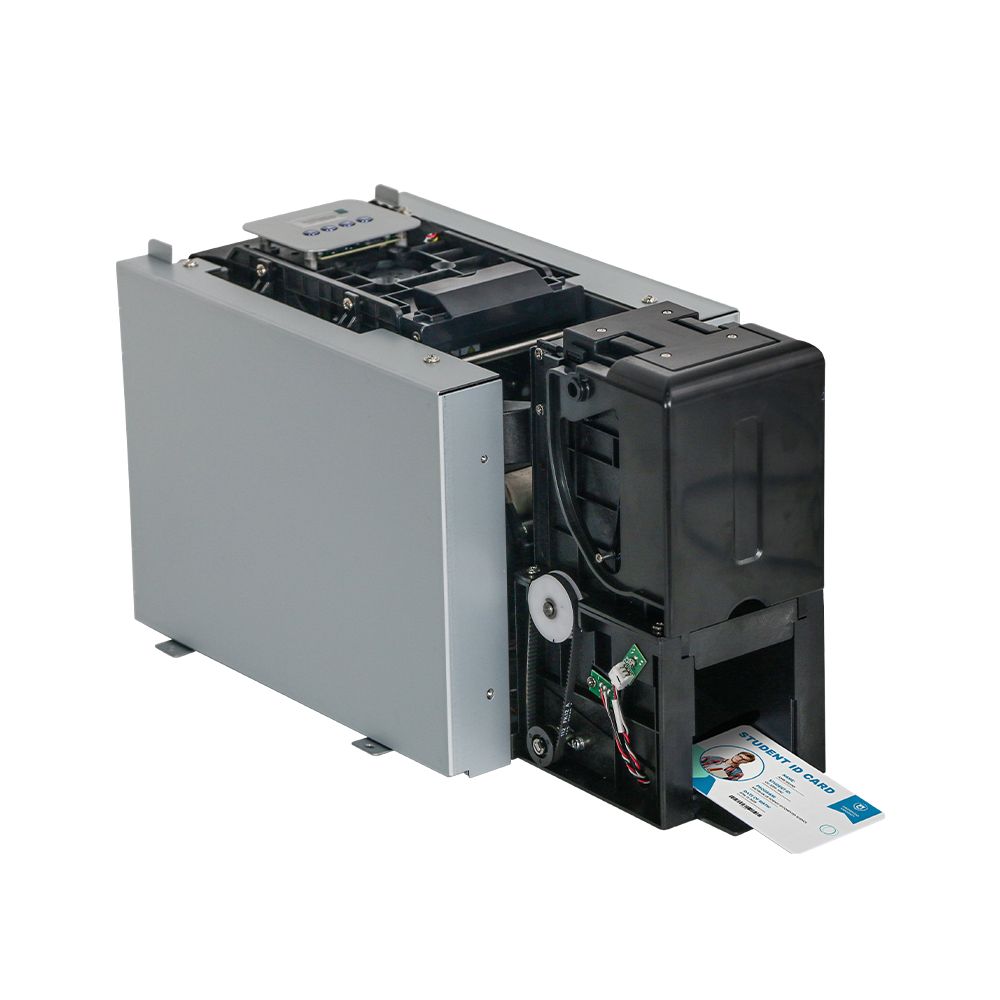

Designed as an embeddable card printer module, the MS-S22 can be integrated into self-service kiosks, automated terminals, and card issuance machines. Its integration-friendly structure helps kiosk manufacturers incorporate card printing functionality into customized equipment for unattended operations.
The MS-S22 ID card printer module supports on-demand personalization of employee IDs, student cards, visitor badges, membership cards, and access control credentials. It can also be integrated into appropriately configured systems for government identification, healthcare cards, financial services, and transportation applications, subject to applicable security and regulatory requirements.
Equipped with a standard USB 2.0 interface and optional Ethernet and RS232 connections, the MS-S22 self-service kiosk card printer offers flexible communication options for different host systems. These interfaces facilitate integration with kiosk controllers and card management software, helping manufacturers develop automated card issuance solutions.
The Masung MS-S22 customizable card printer module is suitable for government service kiosks, hotel check-in terminals, casino membership systems, hospital registration machines, educational institutions, banking terminals, transportation facilities, and automated access control systems.
As a direct printer manufacturer, Masung offers OEM/ODM customization to accommodate different kiosk structures, installation requirements, communication interfaces, and software integration needs. Customization options can be discussed with Masung's engineering team to develop card printing solutions tailored to specific self-service applications.
Card Thickness | 0.25 mm – 1.25 mm |
Supported Card Types | PVC, ABS, PET, PET-G, TESLIN, composite materials, etc. |
Supported Card Sizes | 85.6 mm × 53.98 mm (ISO ID-1 / CR-80) |
Card Input Methods | • Card hopper feeding |
Card Output Methods | • Front card collection hopper |
Printing Grayscale | Input Grayscale: RGB 256-level grayscale, K2 grayscale |
Card Capacity | Card Hopper: 100 cards @ 0.76 mm thickness |
Ribbon Capacity | • YMCKO Ribbon: 500 prints/roll |
Control Panel | OLED display + buttons |
Operating Environment | Standard operating temperature and humidity: 15°C–35°C, 20%–65% RH (non-condensing) |
Storage Environment | Temperature: -5°C–70°C |
Dimensions (W × D × H) | Single-sided Model: 279 × 184 × 218 mm |
Weight | Single-sided Model: |
Power Requirements | Universal AC power supply: 100–240V, 50/60Hz |
Printer Driver Support | Windows XP, Vista, 7, 8, 10, 11 (32-bit and 64-bit operating systems) |
Interfaces | • USB (1.0 / 1.1 / 2.0) connection |
Certifications & Environmental Compliance | • China CCC Certification |
Security Features | RFID encrypted ribbon authentication |
User-Friendly Operation | Easy-to-install and replace components, including a quick ribbon replacement design |
Automatic Card Feeding | Automatic card loading hopper |
