MS-S22K
MASUNG

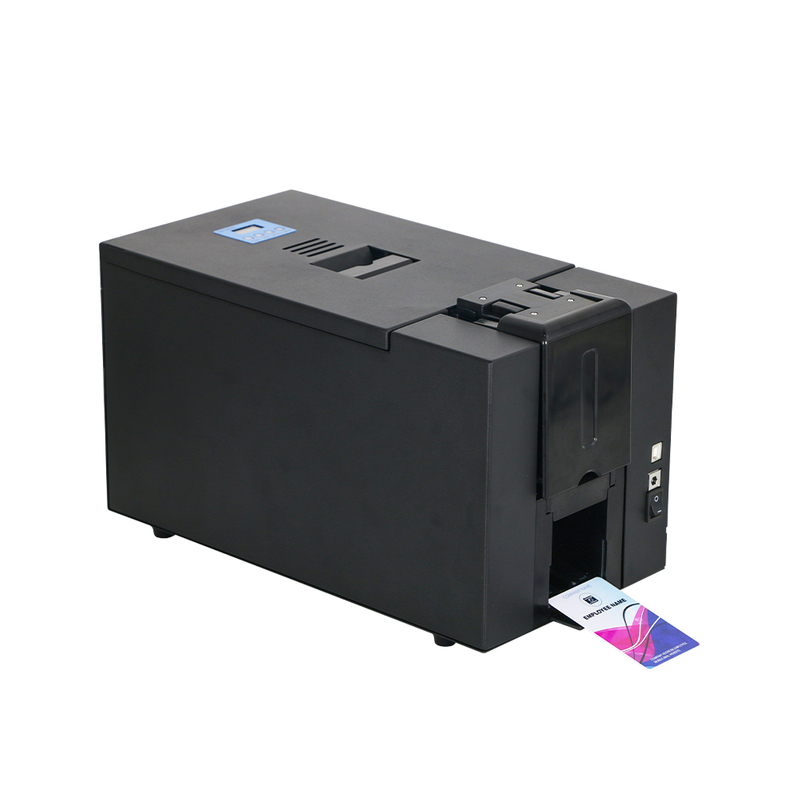

The Masung MS-S22K is an advanced dye sublimation card printer engineered for businesses that require secure and personalized card printing. Utilizing direct dye-sublimation printing technology, the printer transfers color dyes from a thermal ribbon onto the card surface through precise heating control. The sublimated dye penetrates the card material to create vibrant, photo-quality images with excellent durability and visual clarity. This makes the MS-S22K a professional solution for organizations seeking a full-color ID card printer with reliable performance.
Equipped with a customized edge-type printhead and micro-stepper motor technology, the MS-S22K achieves exceptional image quality with resolutions of up to 300 DPI × 1200 DPI for monochrome text and barcode printing. Its advanced edge-to-edge printing technology ensures complete card coverage without unprinted borders, providing a premium appearance for identification cards, badges, and personalized smart cards. As a high-performance CR80 card printer, it supports standard ISO ID-1 card sizes (85.6 mm × 53.98 mm) and CR-79 cards for various professional applications.
The MS-S22K combines high-speed printing capability with efficient card processing. It delivers printing speeds of up to 600 cards/hour for monochrome printing, 200 cards/hour for single-sided full-color printing, and 100 cards/hour for dual-sided full-color printing. With automatic card feeding, a 100-card input hopper, and flexible card output configurations, the printer is designed for high-volume environments such as government ID issuance centers, universities, healthcare networks, financial institutions, and enterprise security systems.
Built with independent and controllable technology, the MS-S22K integrates in-house developed hardware, mechanical structures, firmware, and software systems to ensure stable performance and enhanced information security. Its RFID encrypted ribbon authentication system helps protect consumables and maintain consistent print quality. Compared with traditional solutions, this printer provides a reliable retransfer card printer alternative for organizations looking for high-quality image output, secure operation, and flexible customization options.
For automated applications, the MS-S22K features a kiosk-optimized design with side-mounted communication ports, power interfaces, LED display, and control buttons. This compact structure simplifies installation and maintenance in self-service equipment. With optional modules such as automatic card flippers, contact/contactless card readers, magnetic stripe readers, and reader/writer interface boards, the printer can be customized into a complete smart card printing machine for access control, payment systems, self-service kiosks, and identity management solutions
Automatic Card Flipper, Magnetic Stripe Card Reader/Writer, Contact Smart Card Reader/Writer, Contactless Smart Card Reader/Writer, Card Layout Software Support.
Consumables:
Certified consumables featuring intelligent consumable management technology.
Automatic Printing Setup and Adjustment
Cleaning Kit:
· Cleaning kit
· Cleaning card
· Adhesive cleaning roller
| Specification | Details |
|---|---|
| Printing Technology | Direct Dye-Sublimation Printing |
| Printing Resolution | YMC Image: 300 DPI × 300 DPI; 300 DPI × 600 DPI Single K Color Text & Barcode: 300 DPI × 300 DPI; 300 DPI × 600 DPI; 300 DPI × 1200 DPI |
| Printing Capability | Single-sided printing; edge-to-edge printing; optional dual-sided printing |
| Printing Speed | Single-sided Printing: • Full Color (YMCKO): Up to 200 cards/hour • Monochrome (K): Up to 600 cards/hour Dual-sided Printing: • Full Color (YMCKO): Up to 100 cards/hour |
| Card Thickness | 0.25 mm – 1.25 mm |
| Supported Card Types | PVC, ABS, PET, PET-G, TESLIN, composite materials, etc. |
| Supported Card Sizes | 85.6 mm × 53.98 mm (ISO ID-1 / CR-80) 83.8 mm × 51.8 mm (CR-79) |
| Card Input Methods | • Card hopper feeding • Manual card feeding through rear card slot • Automatic card feeding through rear card slot • Front horizontal card feeding for single-sided models |
| Card Output Methods | • Front card collection hopper • Rear card output slot • Front horizontal card output slot for single-sided models |
| Printing Grayscale | Input Grayscale: RGB 256-level grayscale, K2 grayscale Output Grayscale: YMC 256-level grayscale, K2 grayscale |
| Card Capacity | Card Hopper: 100 cards @ 0.76 mm thickness Front Output Hopper: 30 cards @ 0.76 mm thickness |
| Ribbon Capacity | • YMCKO Ribbon: 500 prints/roll • YMCKO Ribbon: 300 prints/roll • 1/2(YMC)KO Ribbon: 600 prints/roll • K Ribbon: 1,600 prints/roll |
| Control Panel | OLED display + buttons |
| Operating Environment | Standard operating temperature and humidity: 15°C–35°C, 20%–65% RH (non-condensing) |
| Storage Environment | Temperature: -5°C–70°C Relative Humidity: 20%–70% RH (non-condensing) |
| Dimensions (W × D × H) | Single-sided Model: 279 × 184 × 218 mm Dual-sided Model: 345 × 184 × 199 mm |
| Weight | Single-sided Model: • 4.6 kg (with metal housing) • 2.8 kg (without metal housing) Dual-sided Model: • 4.8 kg (with metal housing) • 3.0 kg (without metal housing) |
| Power Requirements | Universal AC power supply: 100–240V, 50/60Hz |
| Printer Driver Support | Windows XP, Vista, 7, 8, 10, 11 (32-bit and 64-bit operating systems) |
| Interfaces | • USB (1.0 / 1.1 / 2.0) connection • Ethernet 10/100Base-T bidirectional network connection (optional) • USB-HUB connection |
| Certifications & Environmental Compliance | • China CCC Certification • Compliant with China's Administrative Measures for the Restriction of Hazardous Substances in Electrical and Electronic Products |
| Security Features | RFID encrypted ribbon authentication |
| User-Friendly Operation | Easy-to-install and replace components, including a quick ribbon replacement design |
| Automatic Card Feeding | Automatic card loading hopper |
