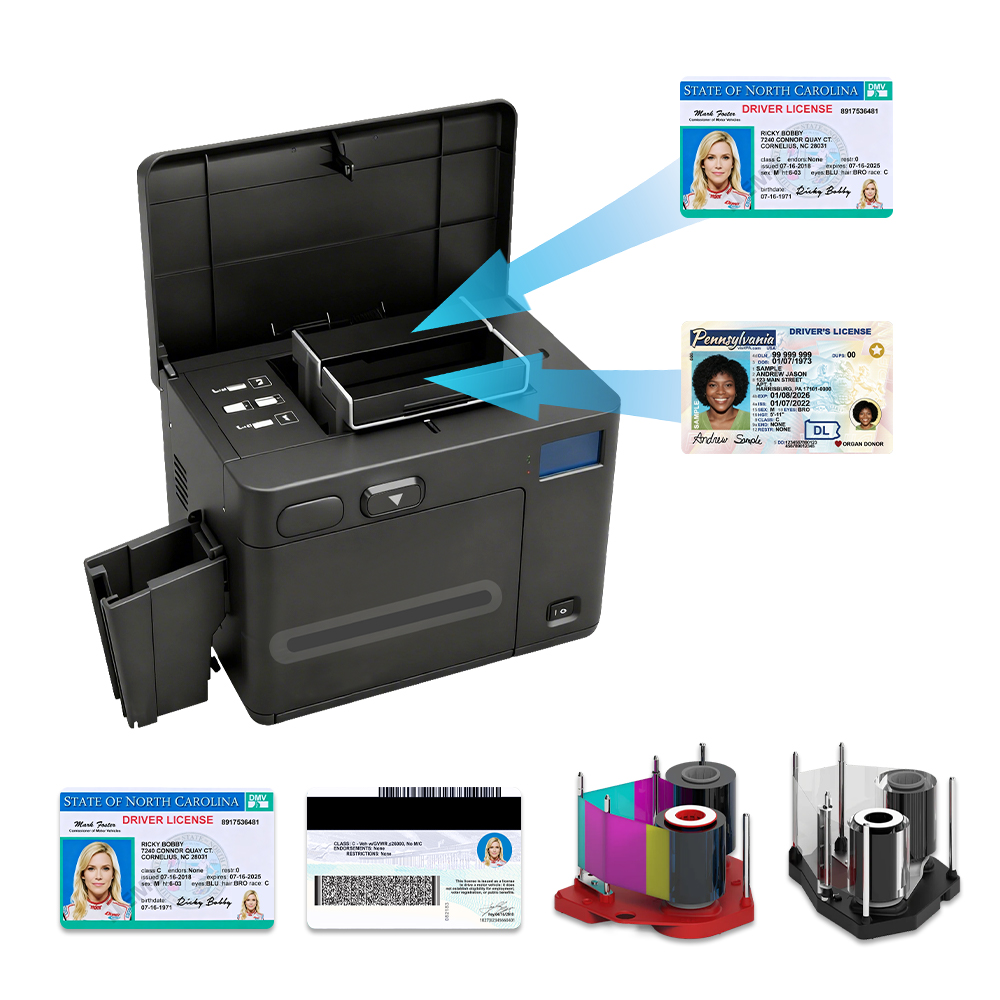

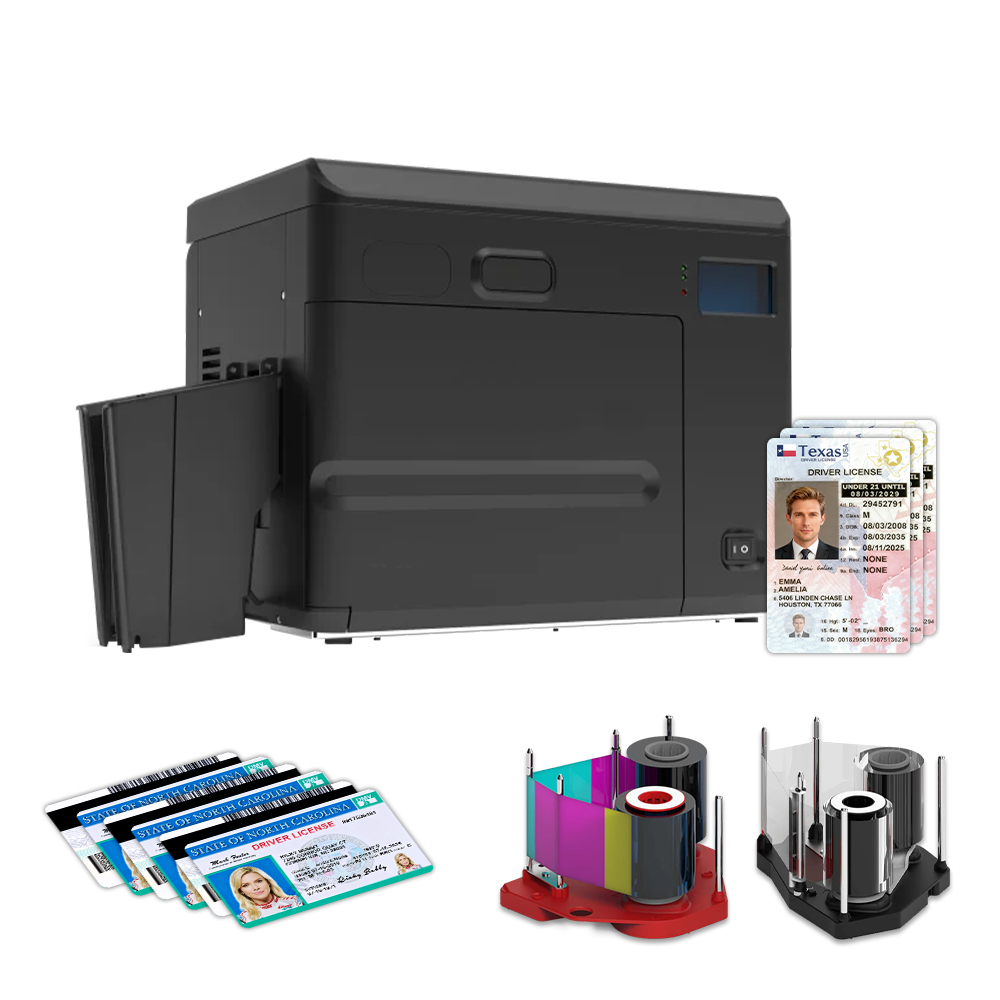

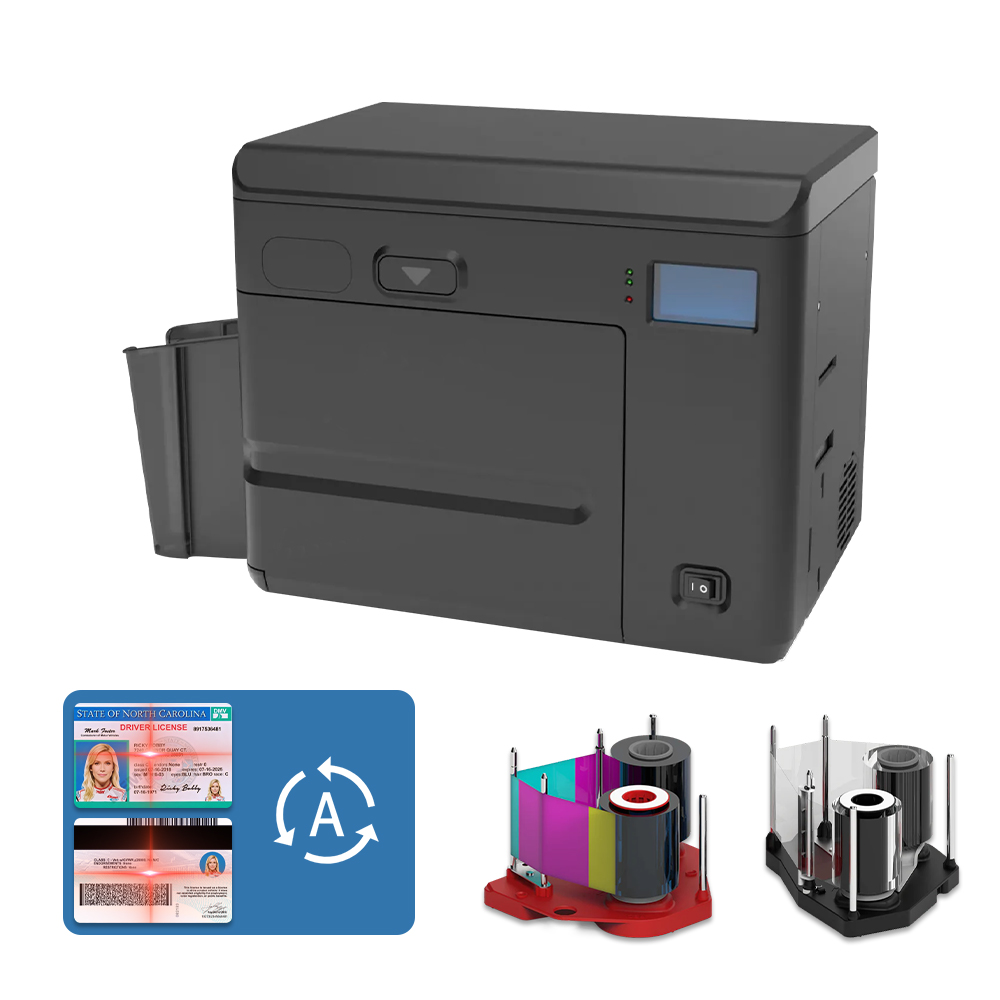

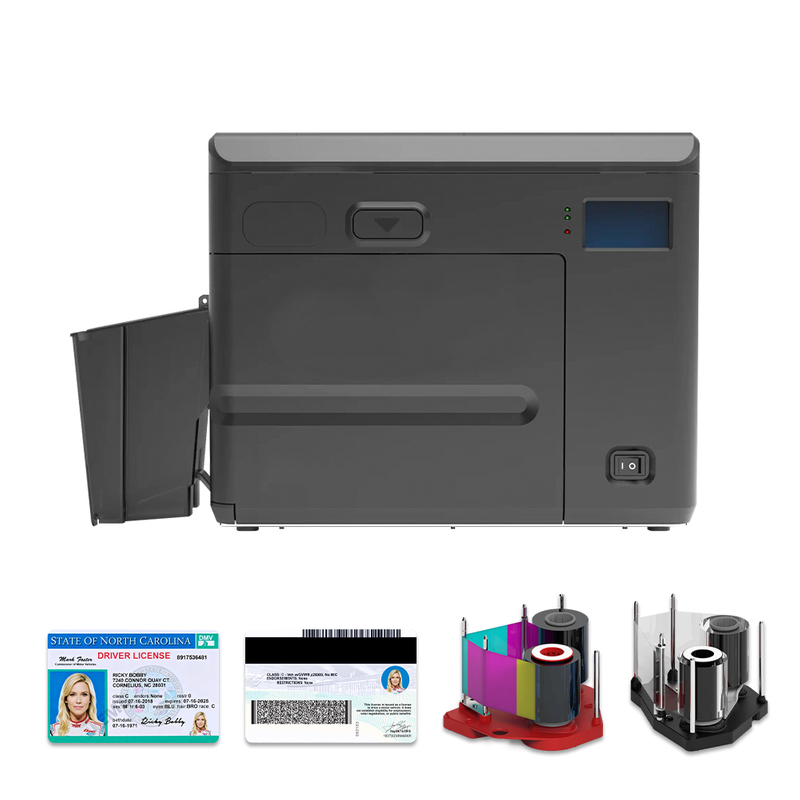

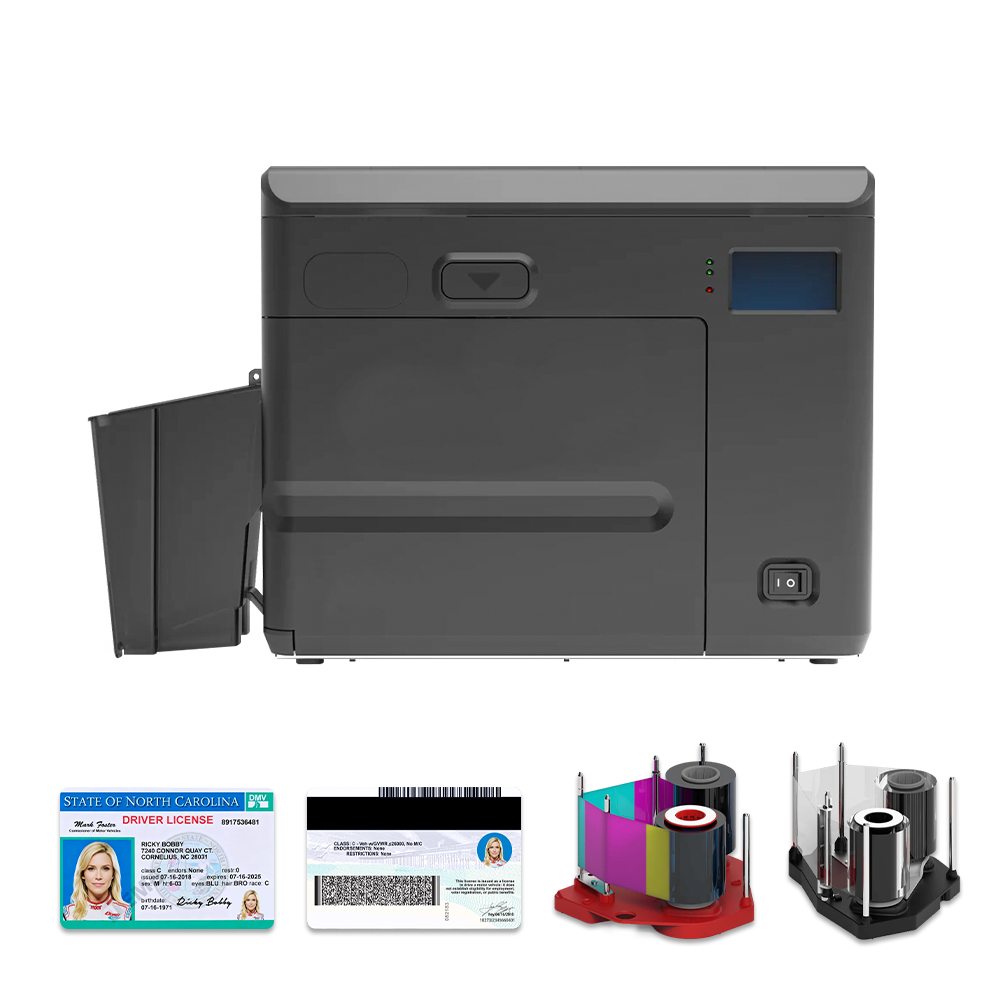

Masung MS-S33k Driver License Printing Machine with Dual-Sided Laser Engraving Printing Technology
The key feature of the MS-S33K driver's license printing machine:
High-Security Laser Engraving: Produces secure IDs & driver license cards with dual-sided laser engraving, microtext, embossing, and rasterization on composite plastics for national IDs, driver's licenses, and corporate cards.
Hybrid Print & Engrave Technology: Combines thermal transfer for color images with laser engraving for black data, layering them for a perfect fit and enhanced security.
Compact & Efficient Design: Features a small office-friendly footprint with dual-feed hoppers (600-card capacity) and a speed of up to 150 cards per hour.
Advanced Laser & Encoding: Utilizes 3rd-gen MOPA fiber laser (1200 DPI) and offers optional contact/contactless smart card encoding (MIFARE®, DESFire®, iClass®).
Reliable and Versatile: Built for durability with a 10,000+ hour laser lifespan. It can also serve as a laser card printer and secure ID card printing machine.
High-Security Laser Engraving: Produces secure IDs & driver license cards with dual-sided laser engraving, microtext, embossing, and rasterization on composite plastics for national IDs, driver's licenses, and corporate cards.
Hybrid Print & Engrave Technology: Combines thermal transfer for color images with laser engraving for black data, layering them for a perfect fit and enhanced security.
Compact & Efficient Design: Features a small office-friendly footprint with dual-feed hoppers (600-card capacity) and a speed of up to 150 cards per hour.
Advanced Laser & Encoding: Utilizes 3rd-gen MOPA fiber laser (1200 DPI) and offers optional contact/contactless smart card encoding (MIFARE®, DESFire®, iClass®).
Reliable and Versatile: Built for durability with a 10,000+ hour laser lifespan. It can also serve as a laser card printer and secure ID card printing machine.
| Quantity: | |
|---|---|
-
MS-S33K
-
Masung
More about the Secure ID Card Printing Machine
The MS-S33K is a state-of-the-art machine for printing high-security driver's licenses and IDs. Its compact design is ideal for both central issuance and instant office or service window use, providing durable, tamper-proof credentials for government and corporate needs.
Hybrid Laser Engraving Security

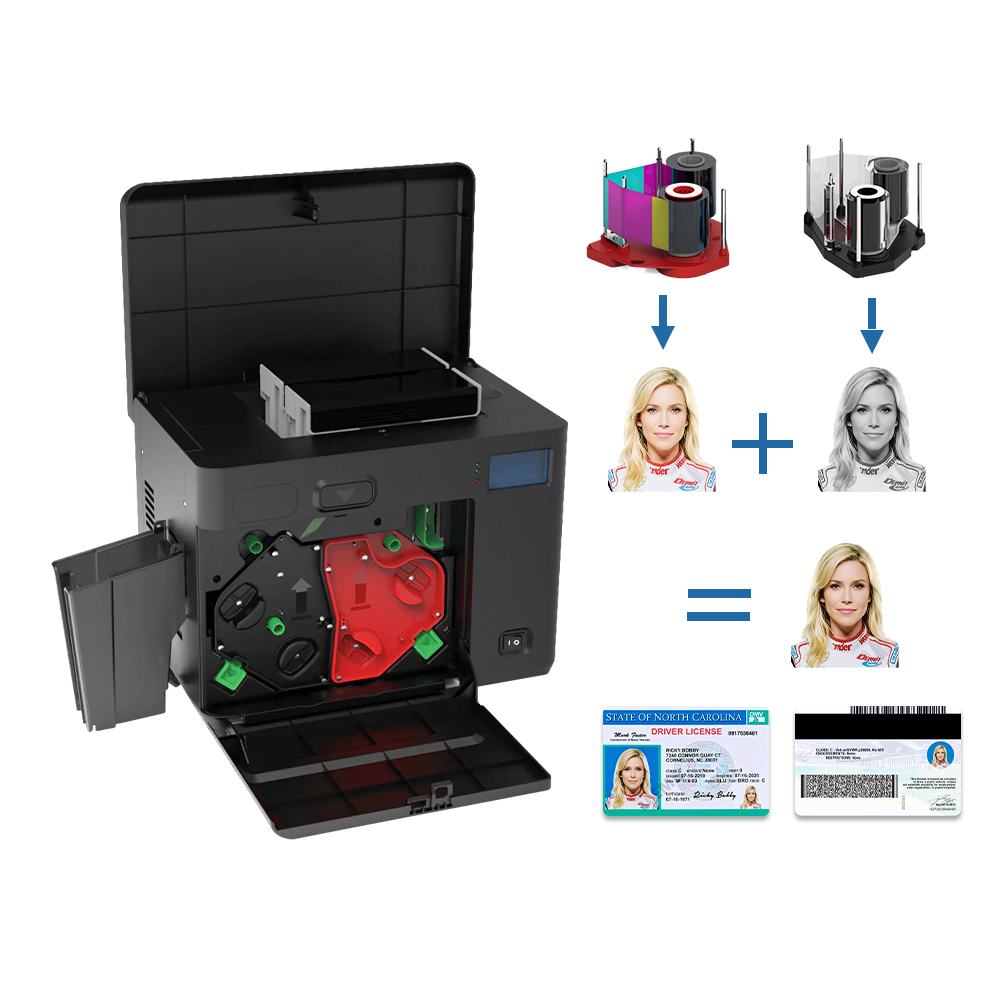

A patented hybrid process first prints a color image via thermal transfer, then laser-engraves black text and security features beneath it. This creates a perfect fit and a physical anti-forgery barrier, as the engraved data remains intact even if the surface is altered.
High-Security Laser Marking Features
Equipped with a powerful 3rd-gen MOPA fiber laser (1200 DPI), this drivers license printing machine enables high-security features like dual-sided engraving, microtext, and embossing. It balances speed (up to 150 cards/hour) with deep customization on materials like polycarbonate.
Efficient Card Issuance Laser ID Card Printer
For operational efficiency, the MS-S33K driver license maker machine features a dual-feed hopper system holding up to 600 cards for uninterrupted batch production. It connects via Ethernet with a web interface for easy integration and management of contact/contactless smart card encoding.
Reliable and Compact Laser Card Printer
Built for reliability, the drivers license printer offers a long laser lifespan (10,000+ hours), quiet operation, and a compact, lightweight footprint. It is certified for global use and backed by a one-year warranty, making it a dependable investment for secure document issuance.
| Laser Type | Master Oscillator Power Amplifier (MOPA) GEN 3 LX fiber laser |
| Resolution | 1200 dpi |
| Laser Engraving Area | 56 x 88 mm (over-edge) (CR-80 cards) |
| Laser Engraving Speed | Up to 150 sheets/hour (batch double-sided) in laser mode |
| Single- or double-sided laser lifespan | Minimum 10,000 hours Communication Interface |
| Ethernet vision system | XY automatic positioning, OCR recognition, barcode recognition |
| Printer Dimensions (HxWxD) | 351 x 428 x 279 mm |
| Printer Weight | 19 kg |
| Standard Printer Security | • Security lock supported • Top cover lock for securing the card feed hopper • Front door lock for securing the device interior and reject card tray |
| Power Supply | 100-240V AC, 50-60Hz, 600W |
| Operating Environment | Temperature: 15°C - 40°C |
| Humidity: 30% - 70% Storage Conditions (non-condensing) | |
| Temperature: 5°C - 70°C | |
| Humidity: 20% - 70% (non-condensing) | |
| Noise (ISO 7779) | |
| Noise level less than 48dB (A) | |
| Certifications | RoHS, CE, WEEE, TÜV laser certifications |
| Warranty | • 1 year • Optional 1-year extended warranty |
