MS-ZK650-M6
Masung

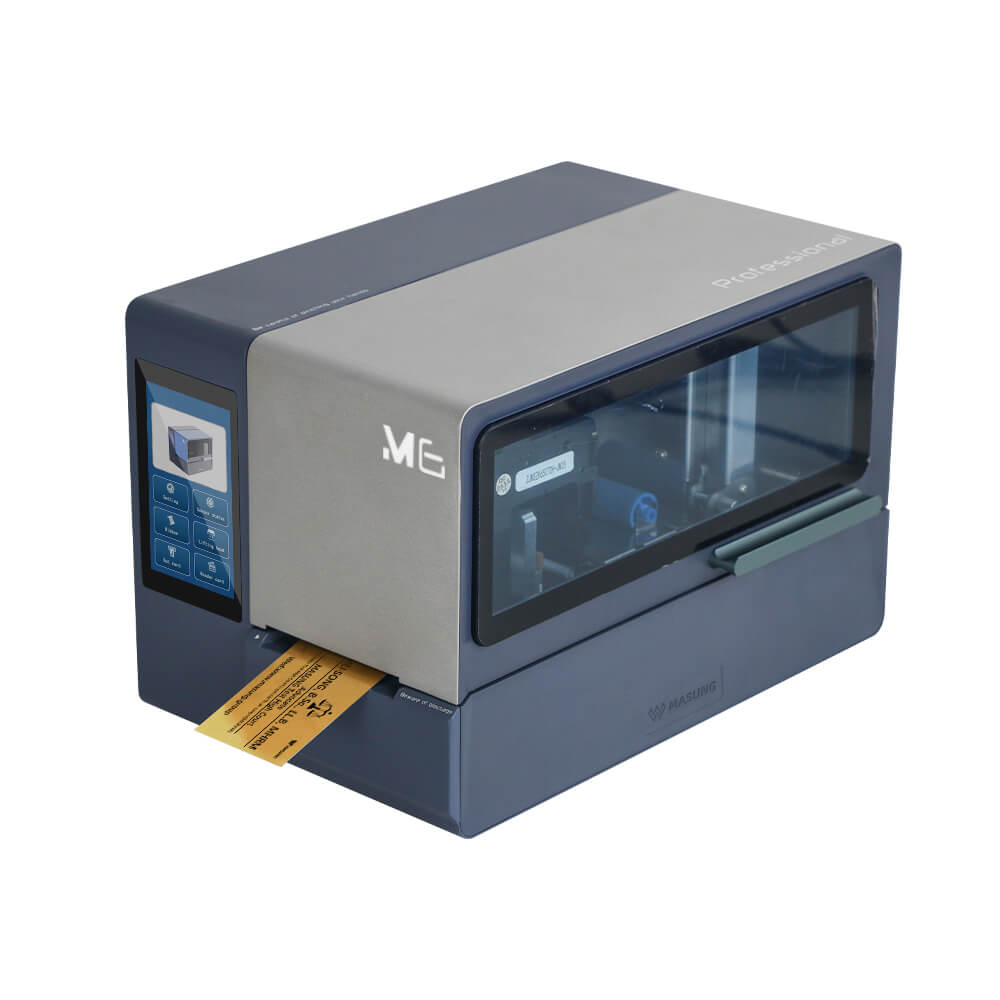

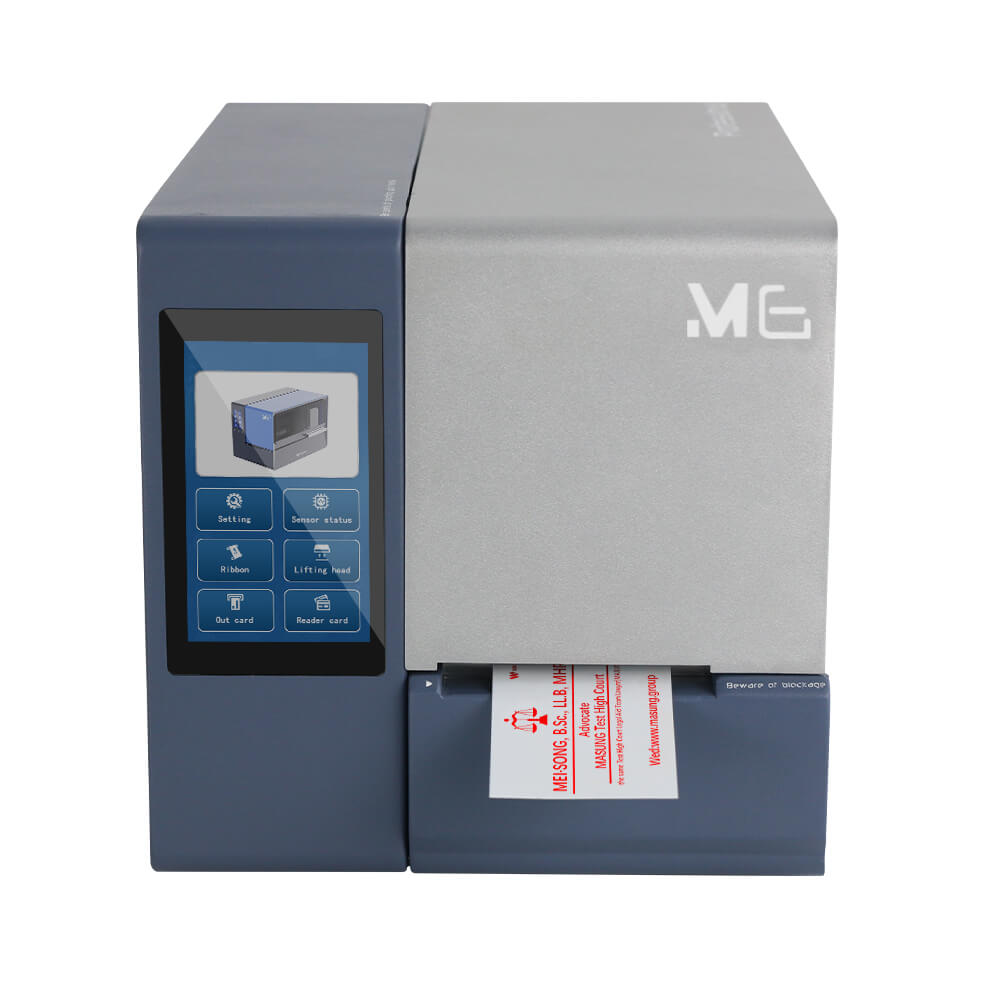

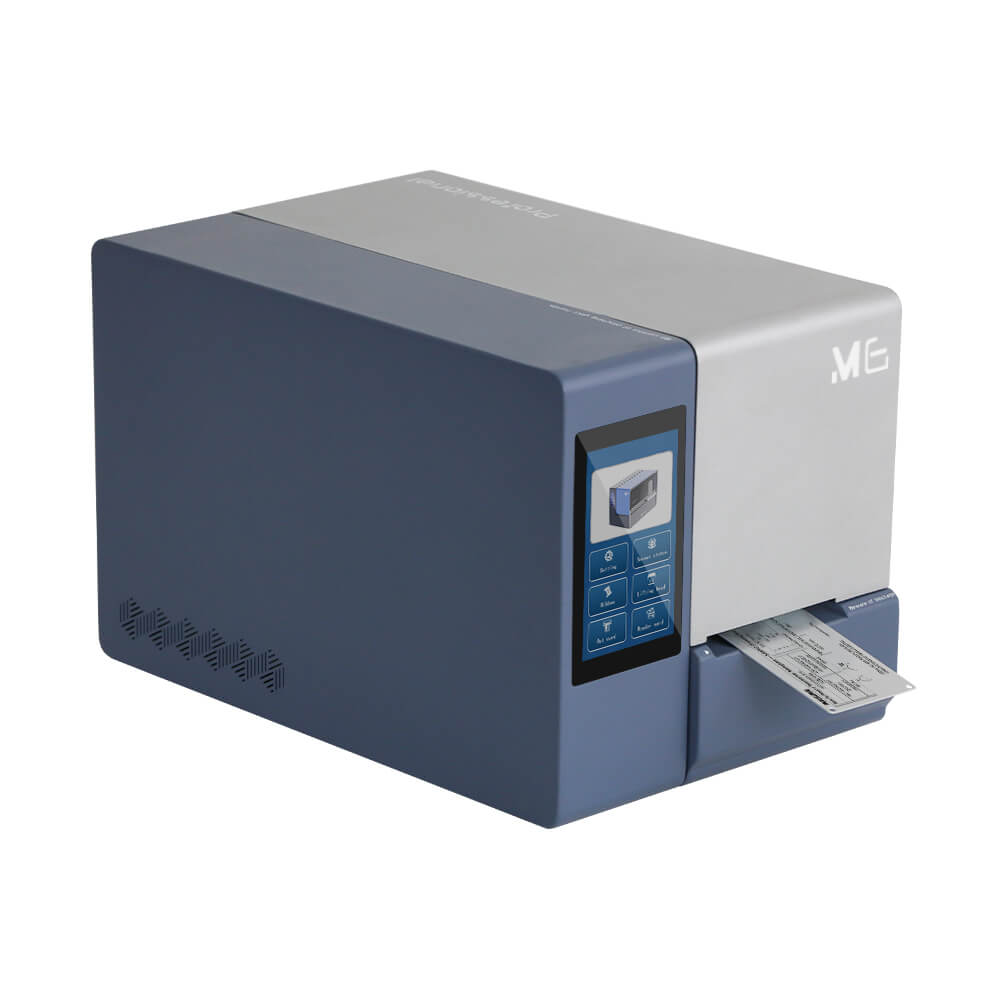

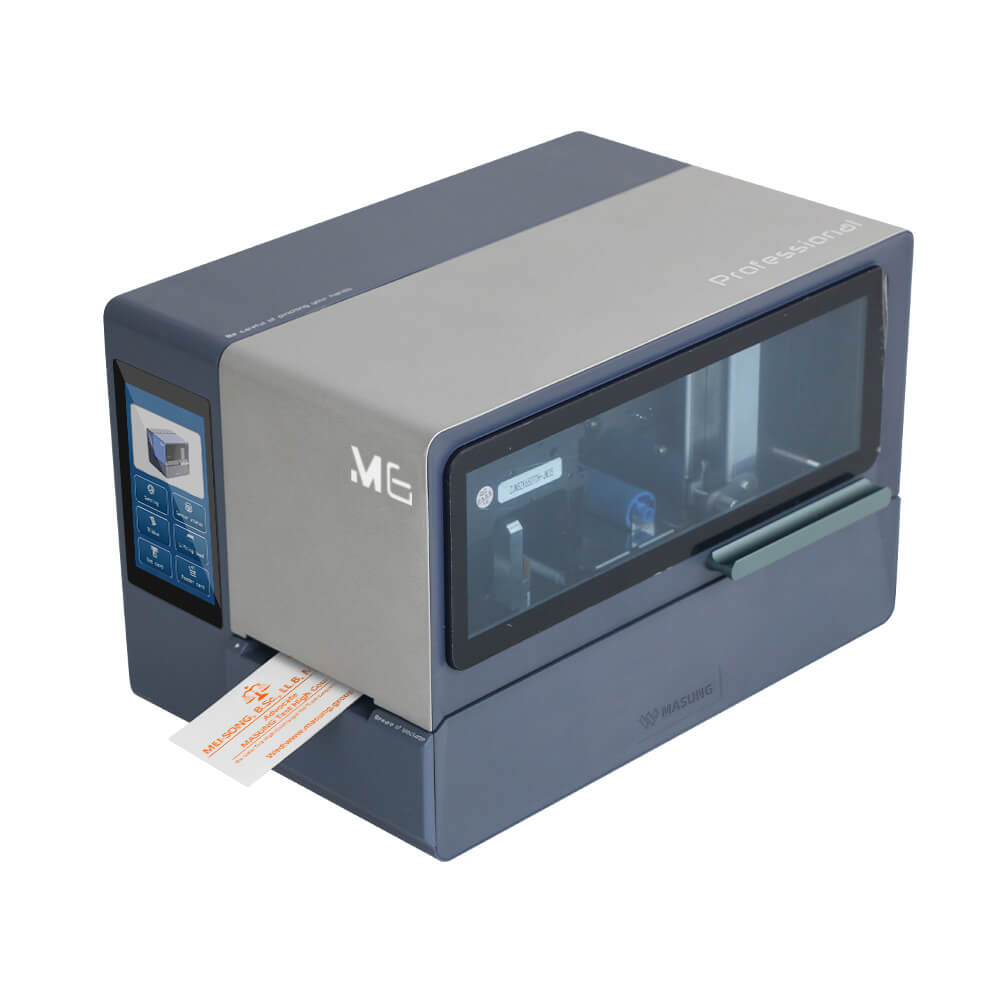

The MS-ZK650-M6 provides a dedicated solution for aluminum nameplate printing and customized metal card production. Using monochrome thermal transfer technology, it prints at 300 DPI with a maximum printing width of 54 mm. The printing parameters and content can be edited through Masung's self-developed software, providing flexibility for different customized printing requirements.
With support for aluminum plates measuring 0.7–0.9 mm thick, the printer can be used for aluminum business cards, aluminum name cards, and other compatible aluminum card applications. It can also serve businesses involved in metal business card printing that require a compact printer for producing customized cards and identification products. The specification specifically lists aluminum plate as the supported card material; compatibility with stainless steel business cards, stainless steel business cards, or other metal substrates should therefore be confirmed through material testing before production.

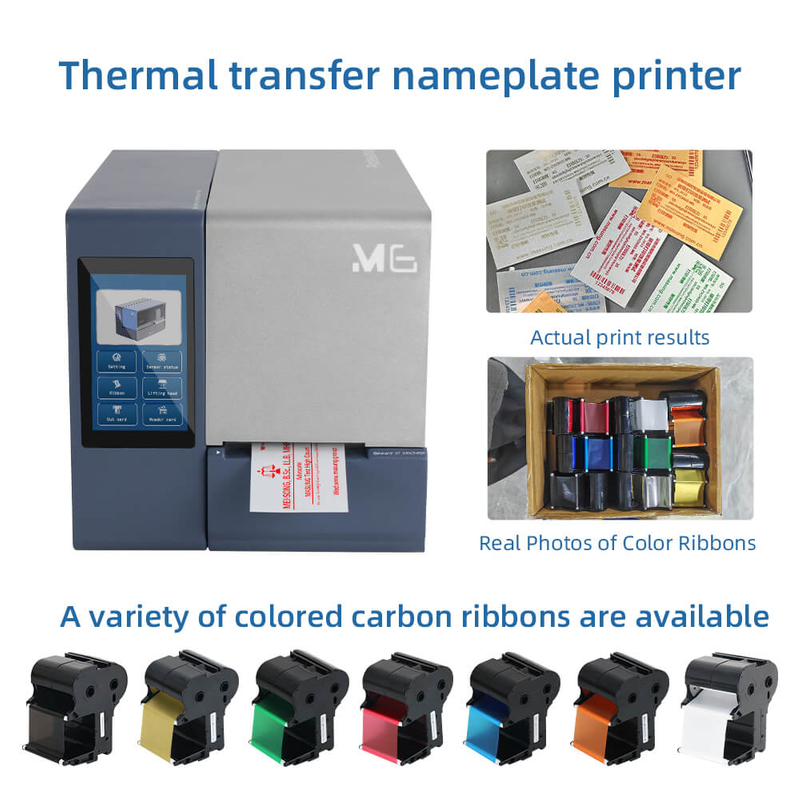

The MS-ZK650-M6 uses a dedicated 650 Series ribbon cartridge with a built-in 60 mm × 100 mm resin-based ribbon. An NFC electronic tag is used for ribbon cartridge identification. With a printing speed of up to 50 mm/s and a 100-sheet card capacity, the printer is designed to support efficient small-batch and customized production of metal name cards, metal name cards, and aluminum nameplates.
For Windows systems, the printer provides USB connectivity as standard, while Bluetooth communication for Android is available as an option. It operates at DC 24 V ±10% with a rated current of 2.5 A. Measuring 310 mm × 210 mm × 215 mm and weighing 10.25 kg, the MS-ZK650-M6 provides a compact solution for businesses looking for an aluminum nameplate printing machine or metal nameplate printing machine for compatible aluminum plate applications.
The MS-ZK650-M6 is suited to industries and businesses that require customized identification information to be printed directly onto small metal or rigid plates.

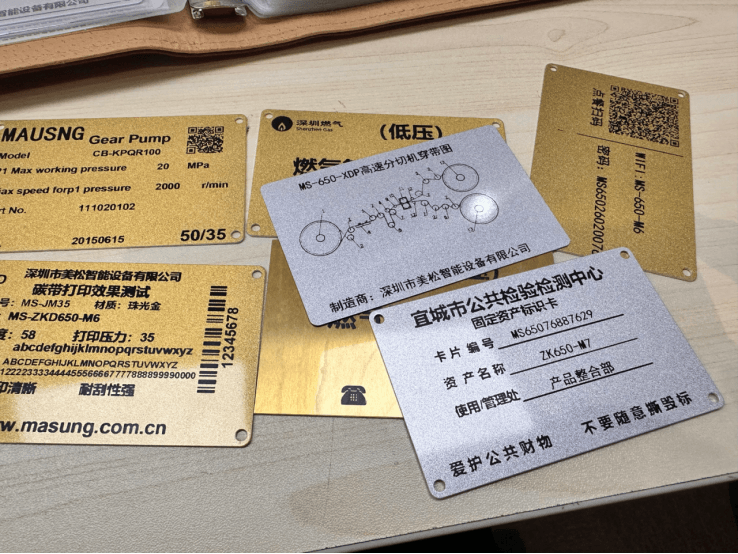

Manufacturers can use the printer to produce equipment nameplates containing model numbers, specifications, serial numbers, ratings, and other identification information.
The MS-ZK650-M6 can print identification plates for electrical cabinets, control equipment, machinery components, and other industrial electrical products.
Nameplate producers can use the printer for short-run and customized aluminum identification products, particularly where different customer designs or variable information need to be printed frequently.
Businesses producing customized metal business cards can use the MS-ZK650-M6 to print names, contact information, logos, and other personalized details on compatible aluminum cards.
The printer can be used for customized identification plates containing serial numbers, product codes, asset information, and other variable data for equipment tracking.
Manufacturers of machinery, tools, and industrial components can use printed metal plates to provide durable product identification and technical information, subject to compatibility testing of the selected substrate.
As a printer manufacturer, Masung can support OEM and ODM projects requiring customized printing solutions for aluminum nameplates, metal cards, and industrial identification products.
Specification | Details |
Printer Model | MS-ZK650-M6 |
Printing Method | Monochrome thermal transfer printing |
Printing Resolution | 300 DPI |
Printing Speed | 50 mm/s |
Print Concentration | Set in the Masung's Self-Developed Software |
Print Head Pressure | Set in the Masung's Self-Developed Software |
Print Content | Set in the Masung's Self-Developed Software |
Card Issuance Method | Set in the Masung's Self-Developed Software |
Card Thickness | 0.7–0.9 mm |
Printable Card Length Range | 33–110 mm |
Printable Card Width Range | 33–80 mm |
Card Holder Capacity Range | 100-300 sheets (0.9 mm thick) |
Supportive Card Material | Aluminum, |
Card Surface | Aluminum, |
Card Type | Standard Card (Default) |
Ribbon Cartridge Specification | Dedicated ribbon cartridge for 650 Series (built-in ribbon: 60 mm × 100 m) |
Ribbon Material | Resin-based |
Ribbon Cartridge Identification | NFC electronic tag |
Rated Voltage | DC24V ±10% |
Rated Current | 2.5 A |
Peak Startup Current | 5 A |
Printing Lifetime | ≥100,000 PVC cards |
Windows | USB (Default) |
Android | Bluetooth (Optional) |
Operating Temperature | 5–40 °C (Non-condensing) |
Operating Humidity | 25%–85% RH (85% RH at 40 °C) |
Storage Temperature | -20–60 °C (Non-condensing) |
Storage Humidity | 10%–90% RH (90% RH at 60 °C) |
Weight | 10.25 kg |

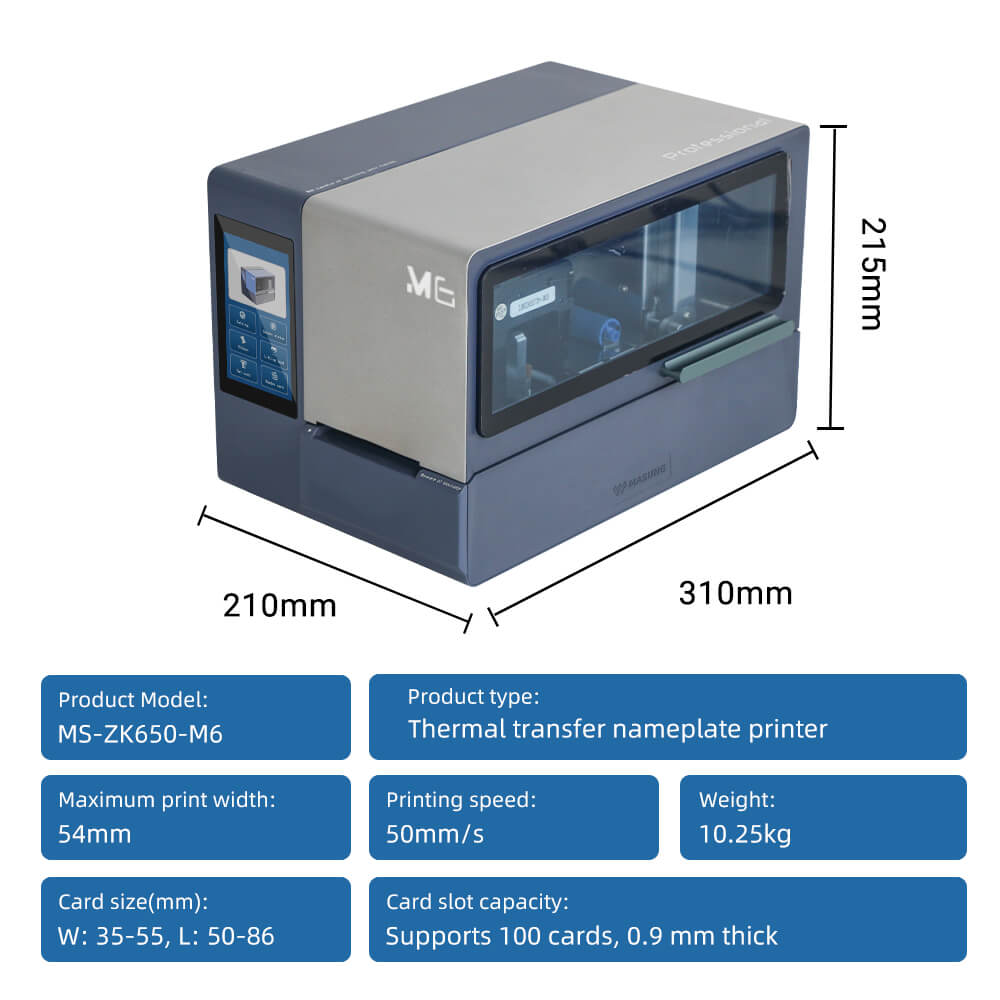

Size | 310 mm × 210 mm × 215 mm |
