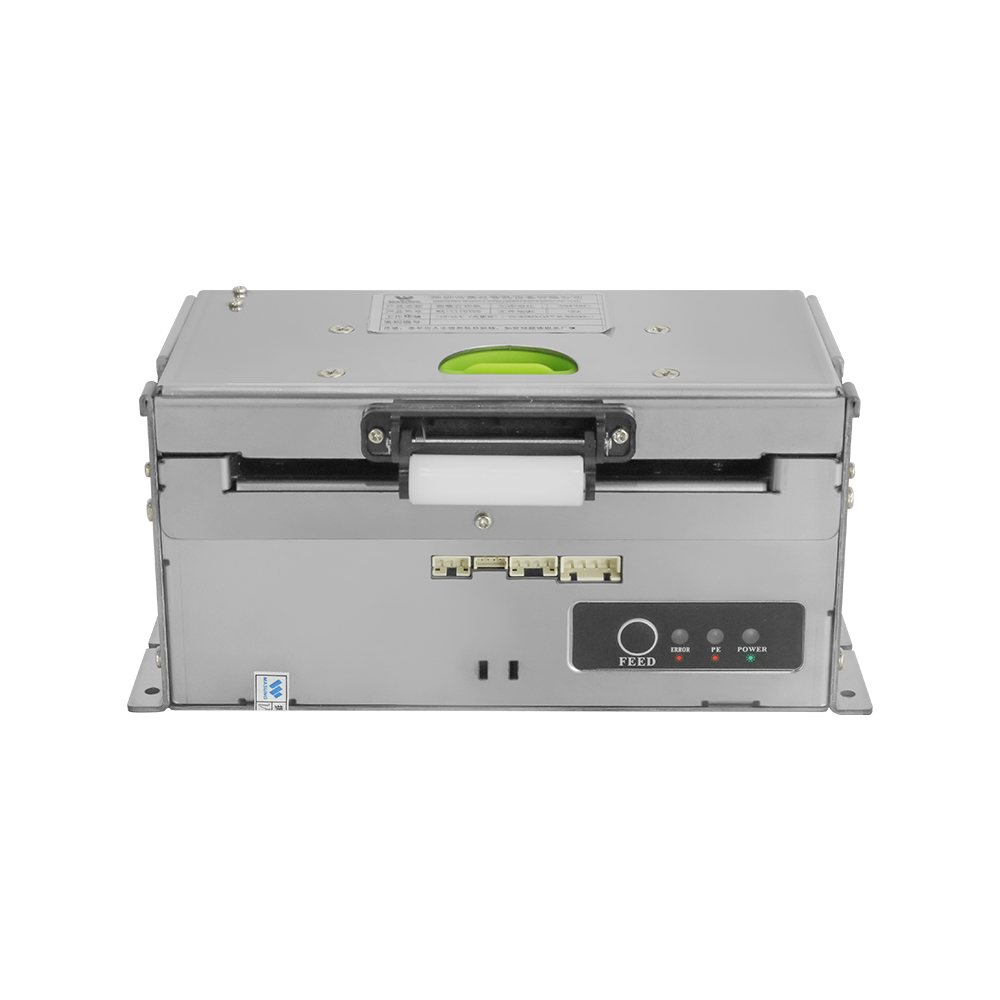

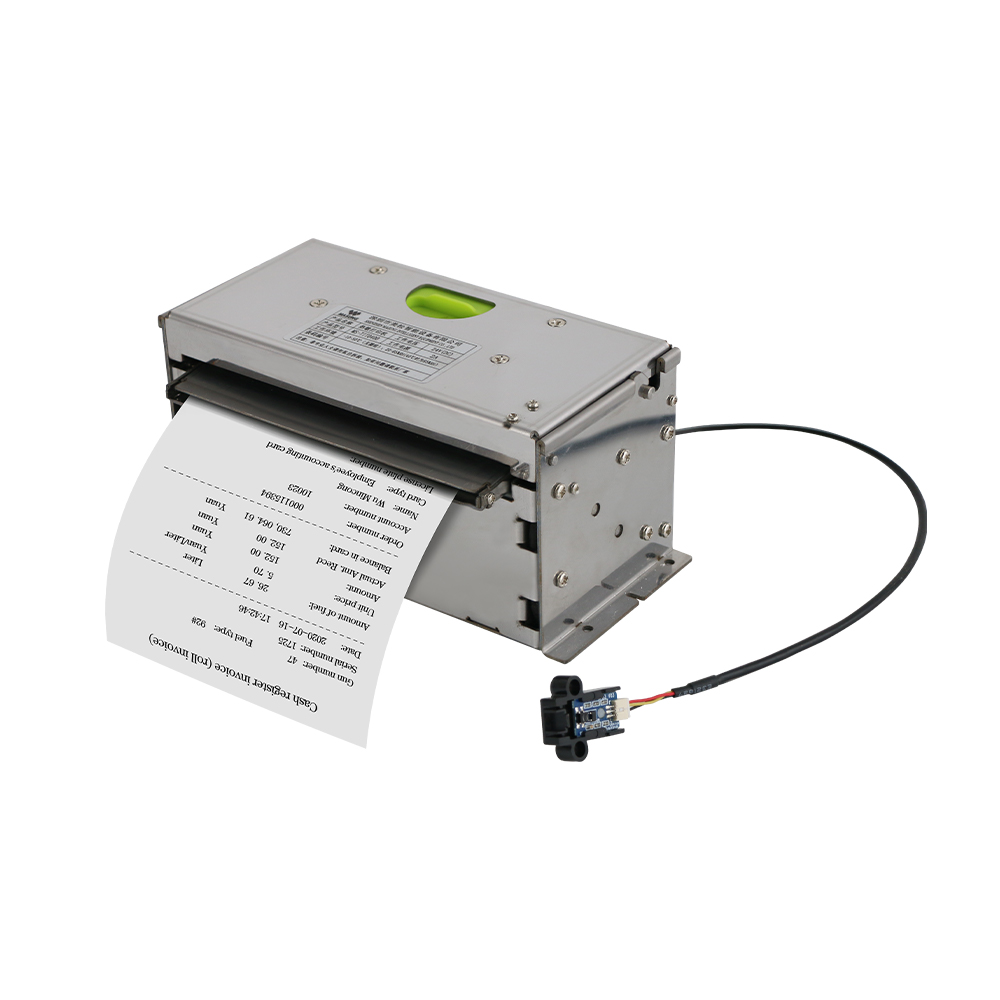

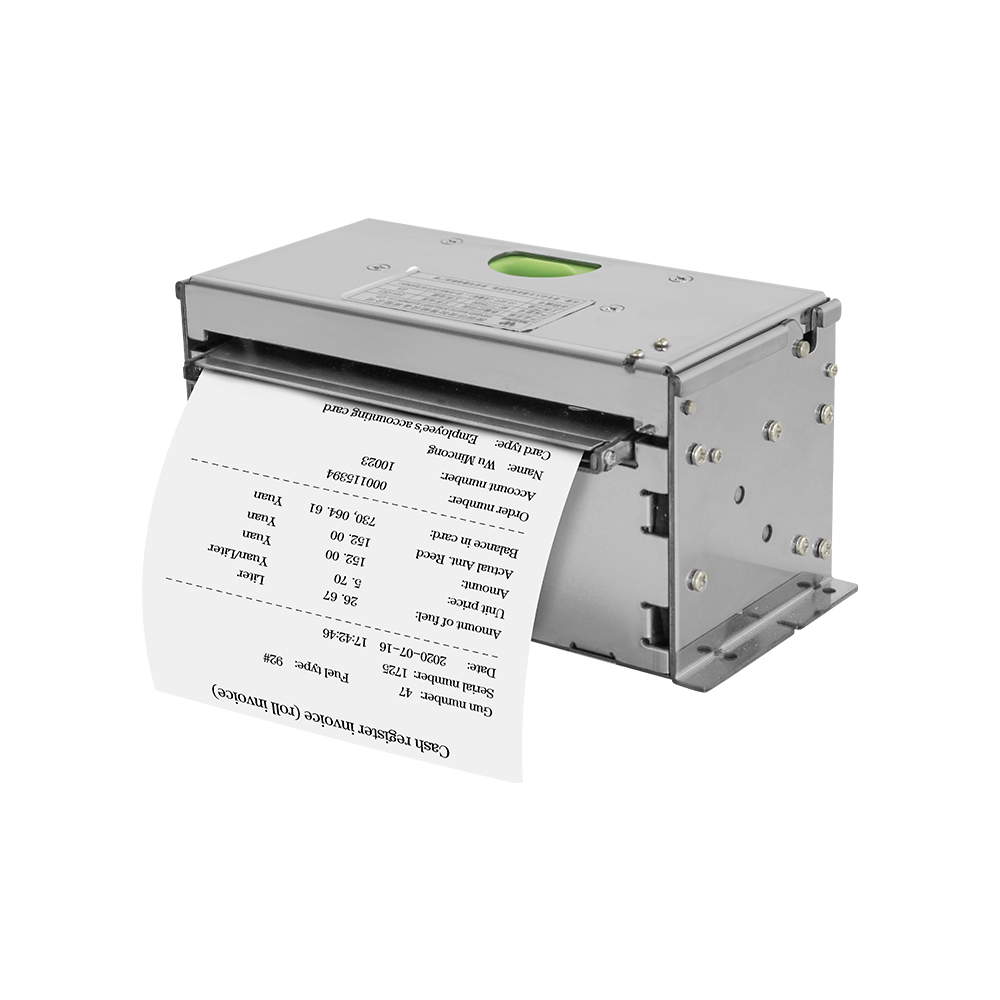

Masung MS-TITO400, Embedded Thermal Receipt Printer for Business with Auto Full/Half Cutter
Features:
1. The metal body is sturdy and reliable, suitable for various usage scenarios.

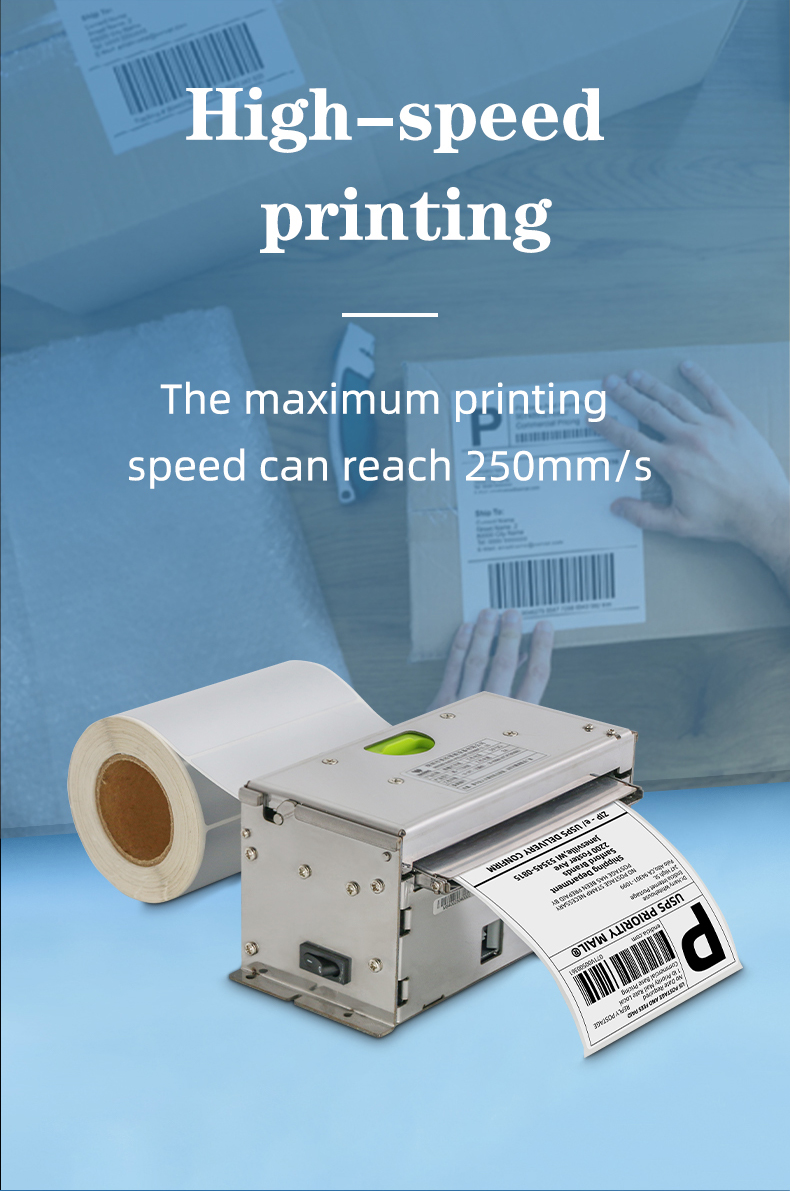

2. Print speed range: 150 mm/s, 200 mm/s, and 250 mm/s.
3. The rational structure and top-accessible printer cover provide convenient operation and maintenance.
4. The paper feed buffer roller ensures that the paper does not deform during high-speed printing.
5. This machine accepts thermal paper with a width of 110 mm and 112 mm.
1. The metal body is sturdy and reliable, suitable for various usage scenarios.
2. Print speed range: 150 mm/s, 200 mm/s, and 250 mm/s.
3. The rational structure and top-accessible printer cover provide convenient operation and maintenance.
4. The paper feed buffer roller ensures that the paper does not deform during high-speed printing.
5. This machine accepts thermal paper with a width of 110 mm and 112 mm.
| Quantity: | |
|---|---|
-
MS-TITO400
-
Masung

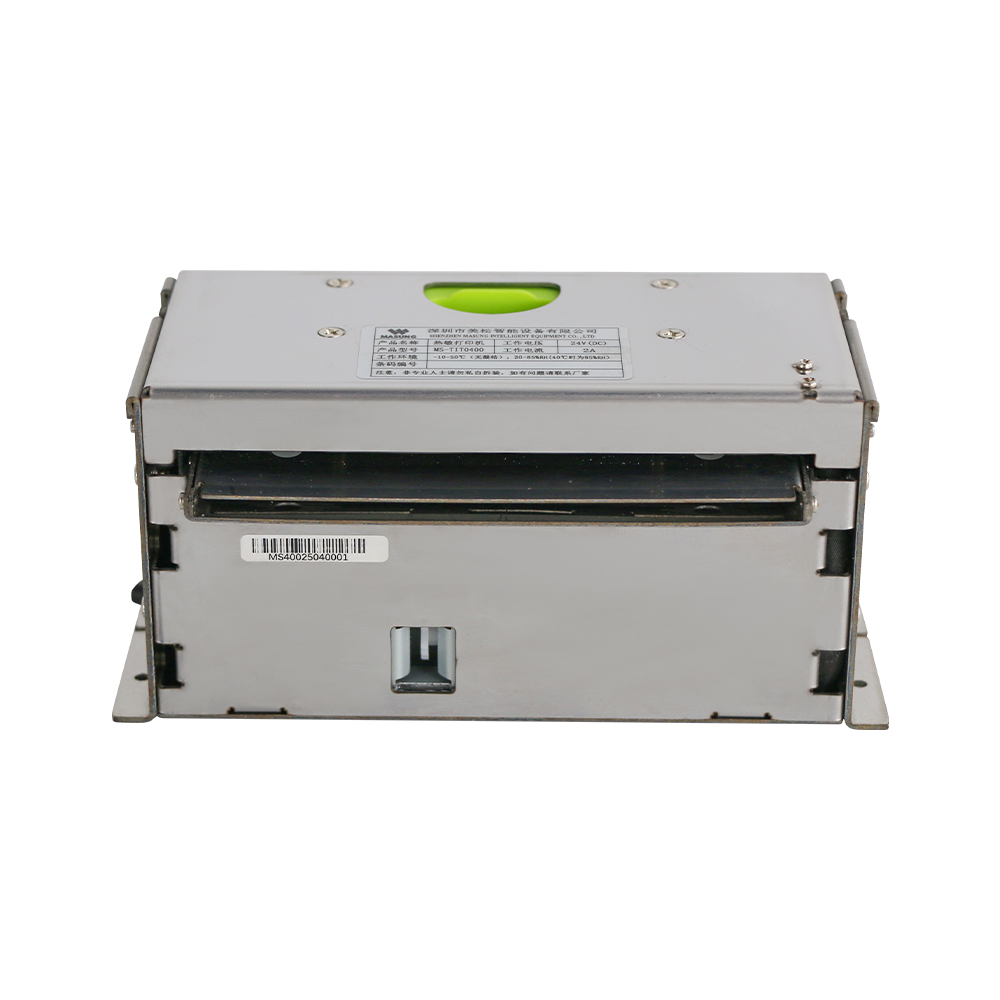

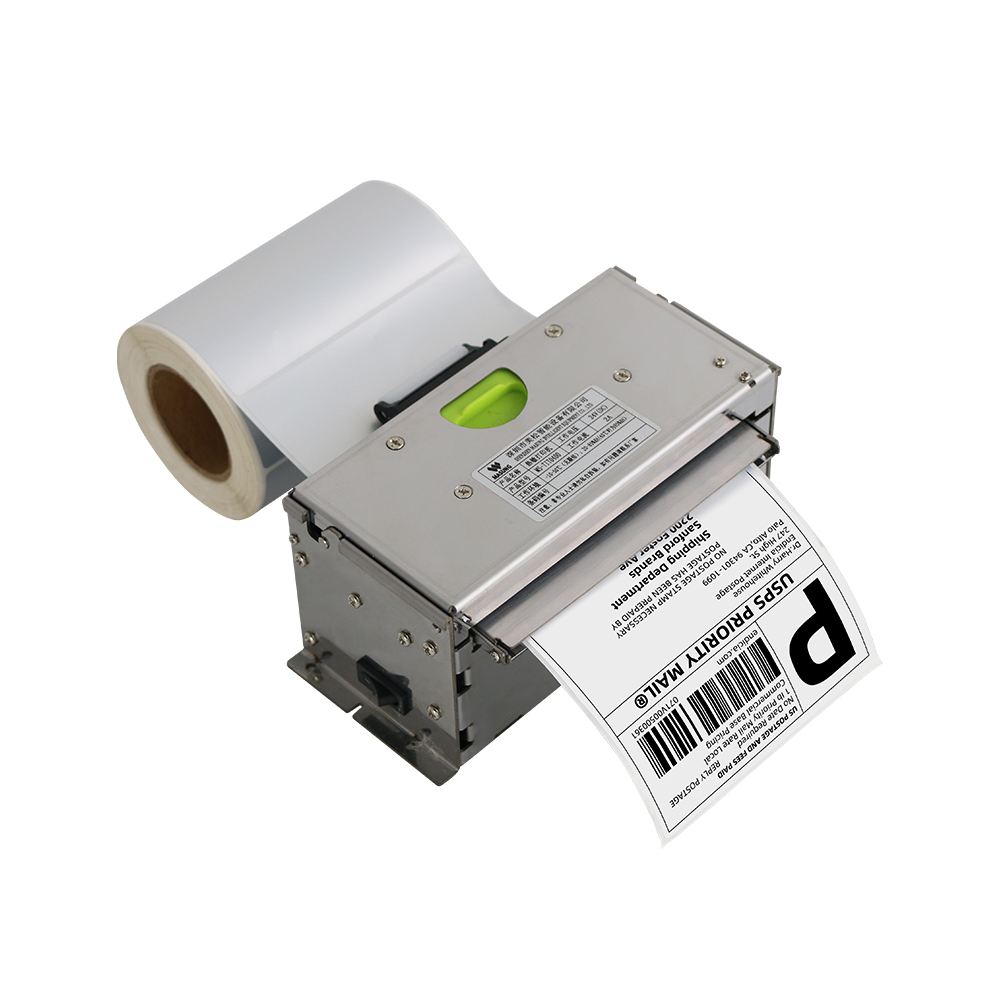

The MS-TITO400 is a newly designed, high-end embedded thermal receipt printer featuring a brand-new design concept and USB connectivity, meeting users' diverse needs for fast, convenient electronic invoice and receipt printing.
Its stable and reliable performance, compact design, and versatile, cost-effective design make it particularly suitable for self-service invoice, receipt, error machine, cash register, gas station, vending machine, kiosk, newsstand, and label printing in industries such as commerce, services, and retail.
| Model | MS-TITO400 |
| Printing method: | Line thermal printer |
| Command set: | ESC/POS compatible |
| Print resolution: | 203 dpi |
| Paper width: | 110 mm & 112 mm |
| Print speed: | 150-250 mm/s (max) |
| Dot density: | 8 dots/mm |
| Print dots: | 864 dots/line |
| Print width: | 108 mm (max) |
| Paper feed: | Automatic paper suction |
| Printing distance: | 50 km |
| Cutter method: | Sliding |
| Cutting conditions: | Half-cut & full-cut |
| Cutter thickness: | 60 - 120 μm |
| Cutter life: | 500,000 cycles |
| Paper near-end sensor: | Reflective photoelectric sensor |
| Paper end sensor: | Through-beam sensor |
| Print head temperature: | Thermistor |
| Operating voltage: | DC24 ± 10% V |
| Average current: | 24 V/2 A |
| Peak current: | 18.8 A |
| Environment: | Operating temperature: -10 to 50°C Temperature: 0°C (non-condensing) |
| Operating humidity: | 20%-85% RH (85% RH at 40°C) |
| Storage temperature: - | -20°C-60°C (non-condensing) |
| Storage humidity: | 10%-90% RH (90% RH at 50°C) |
| Storage temperature: | -20°C-60°C (non-condensing) |
| Weight: | Approximately 1.25 kg (excluding paper roll) |
| Interfaces: | USB, serial |
| Maximum paper roll diameter: | 120 mm |

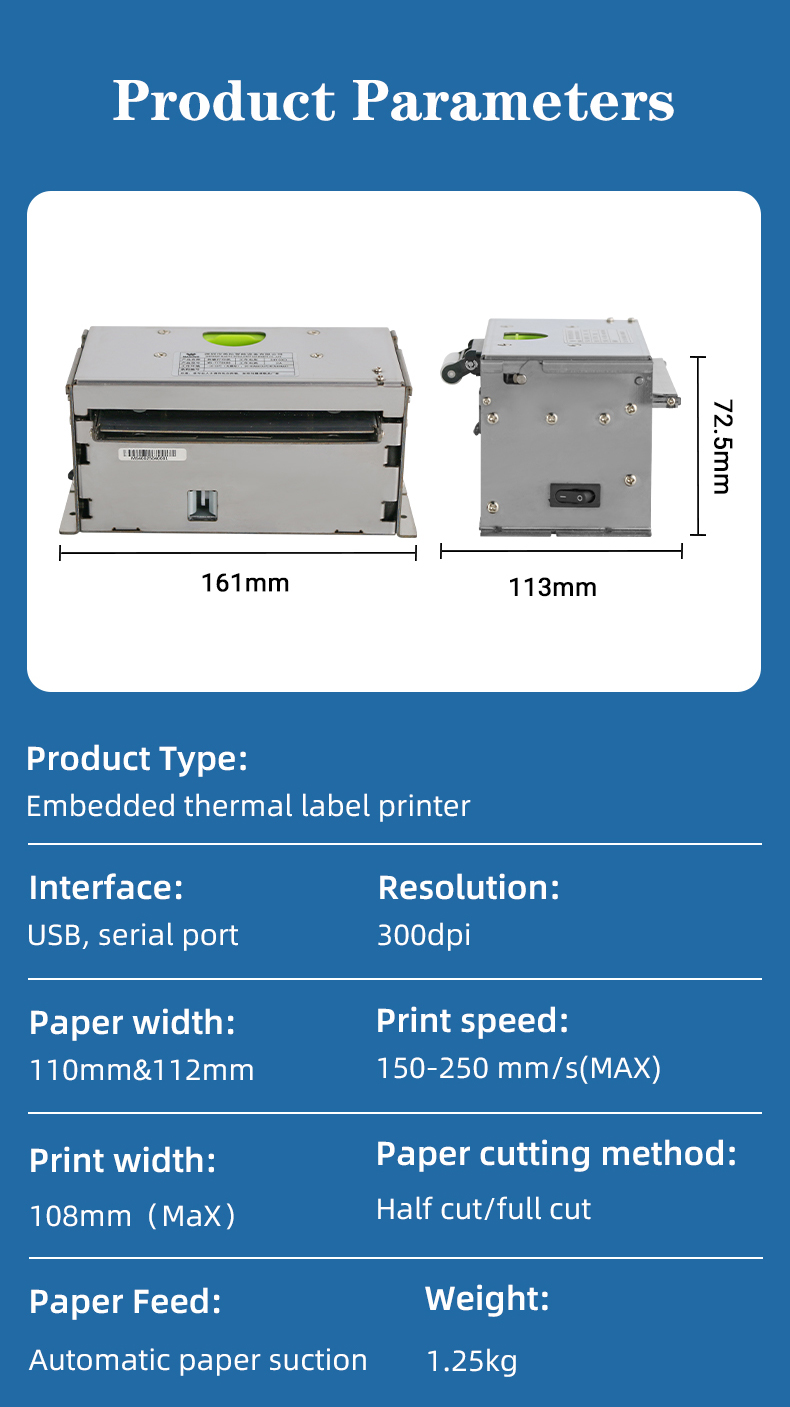

| Dimensions (W*D*H): | W161 mm x D113 mm x H72.5 mm |
Usage Precautions：
1. Use only printer paper that meets the requirements provided or confirmed by the supplier. Failure to do so may affect print quality and print head life, and may even damage the print head.
2. The width, minimum inner diameter, and maximum outer diameter of the printer paper roll must meet tolerance requirements. The paper head must be routed around the stainless steel plate. Otherwise, the paper near-end switch may not reliably engage, or the paper may not feed smoothly or straightly, affecting normal printer operation.
3. Do not plug or unplug the signal interface cable while the printer is powered on.
4. After printing, if you open the printer head, do not immediately touch the print head or motor housing to avoid burns from the high temperature of the metal housing.
5. The friction between the roller and the thermal paper is high. Avoid feeding paper, let alone printing, when there is no paper in the print head. Doing so may damage the thermal film.
6. The print head needs to be cleaned regularly (with anhydrous alcohol) to ensure print quality and life.
7. If the printer is used outdoors, be sure to clean the printer regularly to prevent dust from covering the sensors and preventing them from accurately reporting printer status.
Paper Jam Handling：
If a paper jam occurs while printing, turn off the power and tear the paper at the paper feed point.
Push the green slide switch upward to open the printer cover. Clear any paper debris stuck inside the printer head.
Pull the jammed paper out in the direction of the arrow.
Close the cover, re-power on, and reload the printer according to the paper roll loading instructions.
Press the paper feed button to test whether the problem has been resolved.
Comapny introduction:
Masong, a printer manufacturer and wholesaler with its headquarters and subsidiary based in Changsha and Shenzhen, respectively, specializes in the design and engineering of printers and scanners out of numerous types, providing customers with diversified, intelligent, and customizable one-stop solutions for printing. We are open for printer OEM & ODM service.
At present, Masong has 8 subsidiaries and a total of more than 500 employees, including 2 R&D teams consisting of more than 80 designers and engineers.
