MS-FPT301K
MASUNG
The MS-FPT301K is a versatile 3 inch panel printer designed to accommodate both 80mm and 58mm thermal paper rolls, providing exceptional flexibility for different printing requirements. It offers a maximum print width of 72mm with 8 dots/mm resolution and 576 dots/line, producing sharp text, graphics, QR codes, and barcodes. Whether used in a kiosk, ticketing machine, or industrial control panel, this printer adapts to your specific application needs.
Utilizing line thermal printing technology, this thermal printer module with cutter achieves print speeds of up to 170mm/s, ensuring quick and efficient receipt and ticket generation. The high-speed output is ideal for high-traffic, unattended environments where fast transaction times are critical. Despite its speed, the printer maintains exceptional print quality, delivering clear and accurate results with every print job.
The MS-FPT301K features an industrial-grade sliding auto cutter that supports semi-cut paper output with a cutting condition of 2 ± 0.5mm. With a cutter life of up to 1,000,000 cuts and a mechanical life of 150km, this compact panel printer thermal solution is built to withstand the rigors of continuous operation. The easy-load paper mechanism simplifies paper replacement and reduces downtime, making it perfectly suited for unattended kiosk environments and high-frequency printing applications.
Built for industrial durability, the MS-FPT301K operates reliably in temperatures ranging from -10°C to 50°C and humidity levels of 20% to 85% RH. It includes multiple intelligent sensors such as paper-out detection, black mark sensing, reflective photoelectric sensing, and print head temperature monitoring via thermistor. With Serial and USB communication interfaces and a stable 24V ± 10% power input, this thermal printer module with cutter integrates easily into POS systems, vending machines, payment terminals, and other embedded devices.

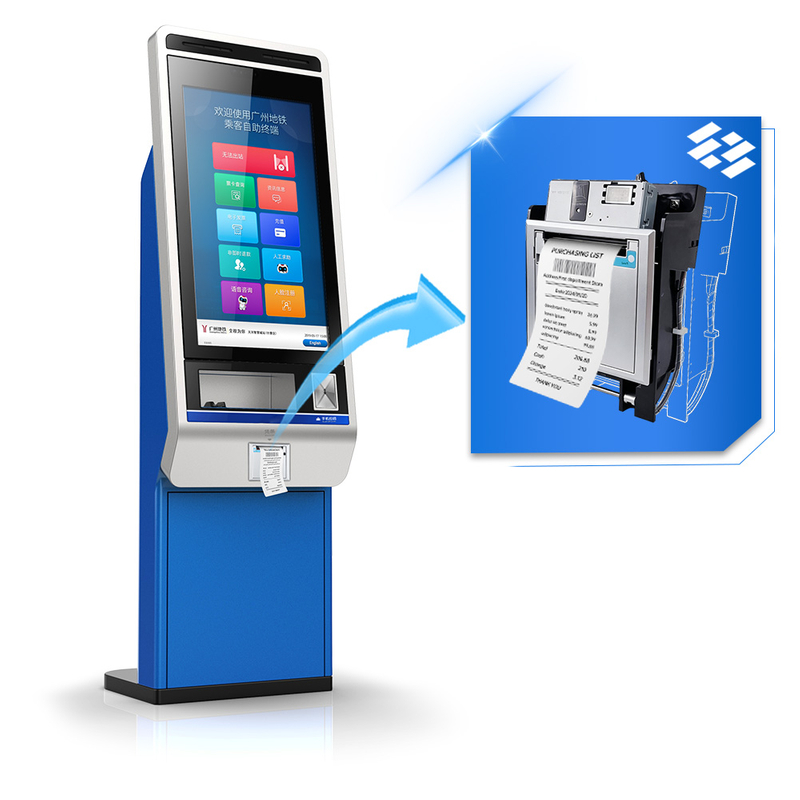

The Masung MS-FPT301K is ideally suited for a diverse range of embedded printing applications, including self-service kiosks, ticketing systems, industrial control equipment, medical devices, smart terminals, POS systems, vending machines, payment terminals, and queue management systems. As a reliable 3 inch panel printer, it excels in unattended environments where durability, speed, and ease of maintenance are essential.
The printer supports customizable availabilities to meet specific integration needs: customers can choose between 80mm and 58mm paper width configurations, and the compact compact panel printer thermal design can be tailored for embedding into various terminal equipment. With its industrial-grade sliding auto cutter, multiple intelligent sensors, and flexible Serial and USB connectivity, the MS-FPT301K can be adapted to virtually any application requiring reliable, high-speed embedded thermal printing with automatic cutting.
| Model Number | MS-FPT301K |
| Printing Method | Line Thermal Printing |
| Paper Width | 80 mm / 58 mm |
| Printing Speed | 170 mm/s (Max) |
| Dot Density | 8 dots/mm |
| Dots Per Line | 576 dots/line |
| Print Width | 72 mm |
| Paper Loading Method | Easy Paper Loading |
| Cutting Type | Sliding Cutter |
| Cutting Condition | 2 ± 0.5 mm (Uncut / Partial Cut) |
| Paper Thickness | 60 – 120 μm |
| Cutter Life | 1,000,000 cuts |
| Operating Voltage | 24V ± 10% |
| Operating Temperature | -10°C to 50°C (No Condensation) |
| Operating Humidity | 20% – 85% RH (85% RH at 40°C) |
| Paper Near End / Last Paper Detection | Reflective Photoelectric Sensor |
| Black Mark Detection | Supported |
| Paper Out Detection | Supported |
| Print Head Temperature | Thermistor |
| Weight | 780 g |
| Communication Interface | Serial Port, USB Port |
| Average Current | 2A @ 24V (45% effective printing coverage) |
| Peak Current | 4.5A |
| Mechanical Life | 150 km |
| Max Paper Roll Diameter | 80 mm |
| Product Size | W95.9 × D140 × H186.32 mm |
