Masung MS-T80H, Embeddable Printer Module for Self-Service Kiosks & Machines with Automatic Cutter
The main features of the self-service kiosk printer module:
Optional multiple black mark sensor positions (six positions available: left, centre, and right on both the printing side and non-printing side).
Multiple sensors for improved control.
Compatible with various paper outlet structures.
| Quantity: | |
|---|---|
-
MS-T80H
-
MASUNG
The MS-T80H printing module adopts an AOI line-type thermal printhead, offering high-speed printing, low noise, strong reliability, and high print quality. The printer features a compact structure and includes functions such as automatic paper feeding, automatic paper cutting, black mark detection, and paper-near-end detection.
This module features an all-in-one design, where the control board and printer mechanism are fully integrated, greatly saving module space and making mould development and product design much easier. The printer also includes a paper feed button and indicator light, allowing end users to operate the device more easily and smoothly.

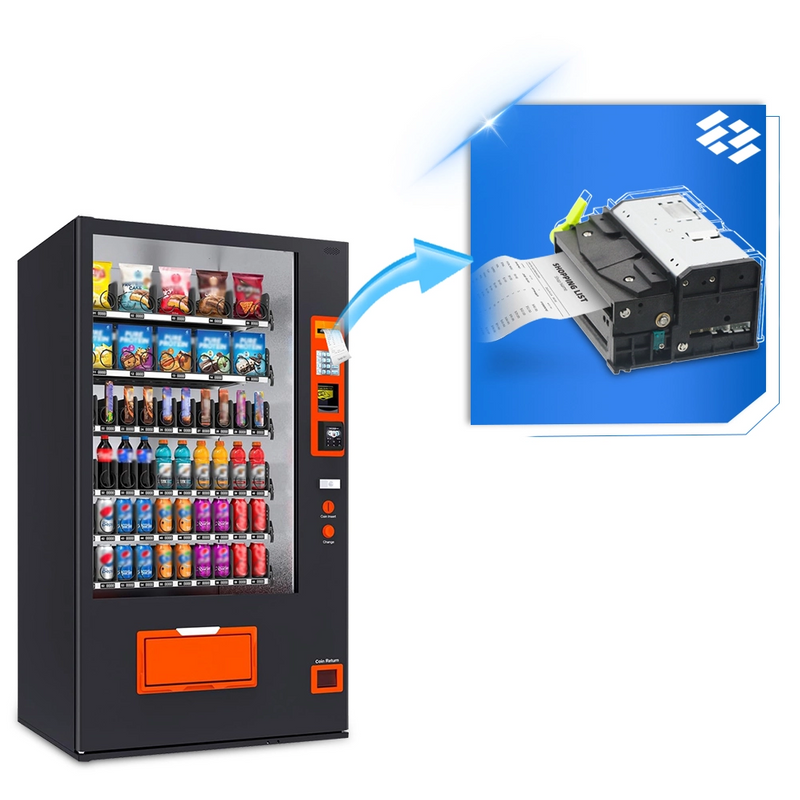

Printer application fields: Suitable for use in self-service inquiry terminals, queue management machines, ATMs, lottery printing, log printing, self-service phone bill statement printers, self-service invoice printing, and self-service payment machines, among other applications.
Printing Specifications
Item | Specification |
Print Method | Line thermal printing |
Dots per Line | 576 dots |
Print Speed | 200 mm/s (max) |
Print Width | 72 mm (max) |
Paper Width | 80 mm |
Paper Thickness | 56–150 μm |
Paper Feed Method | Automatic paper feeding |
Cutting Method | Full cut / Partial cut |
Printhead Life | 100 km |
Print Format | Reverse printing, underline, italic, bold, etc. |
Cutter Life | 1 million cuts |
Characters
Type | Specification |
ASCII | 9×17, 12×24 |
Chinese Characters | 24×24 dots |
Detection Functions
Function | Method |
Printhead Temperature | Temperature sensor |
Lever Detection | Micro switch |
Paper Detection | Mechanical photoelectric sensor |
Black Mark Detection | Reflective photoelectric sensor (optional positions: left, centre, right on front or back side) |
Paper Near-End Detection | Reflective photoelectric sensor (optional) |
Anti-Paper Jam Detection | Through-beam photoelectric sensor (optional) |
Electrical Specifications
Item | Specification |
Operating Voltage | DC 24V ±10% |
Average Current | 2A @ 24V (30% effective printing dots) |
Peak Current | 5A |
Communication Interface | RS232, USB |
Thermal Paper Type | Thermal paper roll (thermal coating on the outer side of the roll) |
Environmental Conditions
Item | Specification |
Operating Temperature | -10°C to 55°C (non-condensing) |
Operating Humidity | 20%–85% RH (85% RH at 40°C) |
Storage Temperature | -20°C to 60°C (non-condensing) |
Storage Humidity | 10%–90% RH (90% RH at 50°C) |
Dimensions and Weight
Item | Specification |
Length | Approx. 227 mm |
Width | Approx. 137 mm |
Height | Approx. 135 mm |
Weight | Approx. 1.35 kg (excluding paper roll) |
The MS-T80H printing module adopts an AOI line-type thermal printhead, offering high-speed printing, low noise, strong reliability, and high print quality. The printer features a compact structure and includes functions such as automatic paper feeding, automatic paper cutting, black mark detection, and paper-near-end detection.
This module features an all-in-one design, where the control board and printer mechanism are fully integrated, greatly saving module space and making mould development and product design much easier. The printer also includes a paper feed button and indicator light, allowing end users to operate the device more easily and smoothly.
Printer application fields: Suitable for use in self-service inquiry terminals, queue management machines, ATMs, lottery printing, log printing, self-service phone bill statement printers, self-service invoice printing, and self-service payment machines, among other applications.
Printing Specifications
Item | Specification |
Print Method | Line thermal printing |
Dots per Line | 576 dots |
Print Speed | 200 mm/s (max) |
Print Width | 72 mm (max) |
Paper Width | 80 mm |
Paper Thickness | 56–150 μm |
Paper Feed Method | Automatic paper feeding |
Cutting Method | Full cut / Partial cut |
Printhead Life | 100 km |
Print Format | Reverse printing, underline, italic, bold, etc. |
Cutter Life | 1 million cuts |
Characters
Type | Specification |
ASCII | 9×17, 12×24 |
Chinese Characters | 24×24 dots |
Detection Functions
Function | Method |
Printhead Temperature | Temperature sensor |
Lever Detection | Micro switch |
Paper Detection | Mechanical photoelectric sensor |
Black Mark Detection | Reflective photoelectric sensor (optional positions: left, centre, right on front or back side) |
Paper Near-End Detection | Reflective photoelectric sensor (optional) |
Anti-Paper Jam Detection | Through-beam photoelectric sensor (optional) |
Electrical Specifications
Item | Specification |
Operating Voltage | DC 24V ±10% |
Average Current | 2A @ 24V (30% effective printing dots) |
Peak Current | 5A |
Communication Interface | RS232, USB |
Thermal Paper Type | Thermal paper roll (thermal coating on the outer side of the roll) |
Environmental Conditions
Item | Specification |
Operating Temperature | -10°C to 55°C (non-condensing) |
Operating Humidity | 20%–85% RH (85% RH at 40°C) |
Storage Temperature | -20°C to 60°C (non-condensing) |
Storage Humidity | 10%–90% RH (90% RH at 50°C) |
Dimensions and Weight
Item | Specification |
Length | Approx. 227 mm |
Width | Approx. 137 mm |
Height | Approx. 135 mm |
Weight | Approx. 1.35 kg (excluding paper roll) |
