Masung MS-FPT302 80mm Kiosk Thermal Receipt Panel Printer With Electronic Locking System For Vending Machine
Features:
1. Reliable 58/80mm thermal receipt printer with auto cutter
2. Rugged industrial appearance
3. Ultra high printing speed 250 mm/s
4. Eletronic locking system on printer panel
5. Multiple installation methods
6.“anti-block” system detection
7. Adjustable bucket for 58/80mm width paper roll
8. Customization case color available
| Quantity: | |
|---|---|
-
MS-FPT302
-
MASUNG

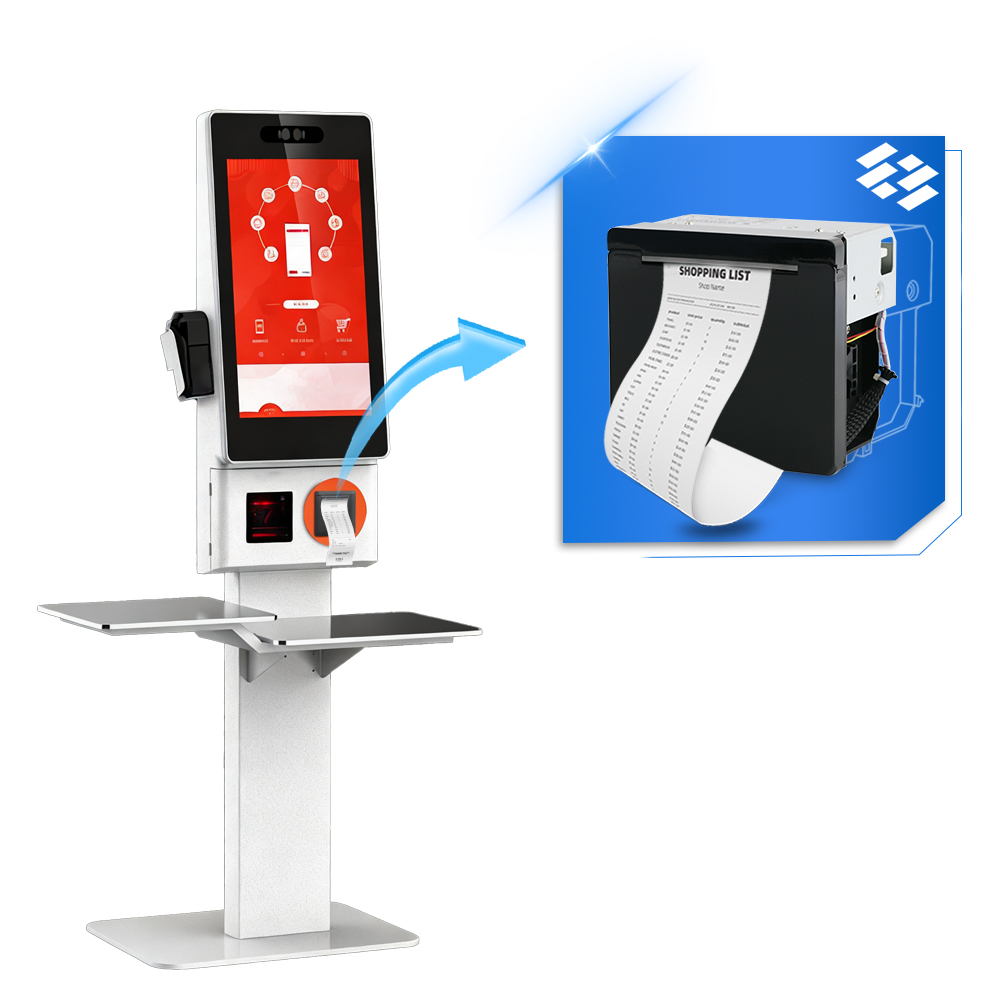

The MS-FPT302 is a high-performance 3-inch panel printer engineered for seamless integration into demanding self-service environments. Built with a rugged industrial design, it features an electronic locking system on the printer panel for enhanced security and supports multiple installation methods. Its robust construction and reliable printer mechanism are built to withstand high-volume use in applications like queue management systems, ticket vendors, and food ordering kiosks.
Experience exceptional throughput with an ultra-high printing speed of 250mm/s, ensuring quick transaction times and reduced user wait. This efficiency is matched by its reliable auto-cutter, which supports both full and partial cuts and boasts an impressive life of 1.5 million cuts. The easy-loading, adjustable bucket accommodates both 58mm and 80mm paper rolls, maximizing operational flexibility and minimizing downtime.
Engineered for ultimate reliability, the MS-FPT302 incorporates an advanced "anti-block" detection system to prevent paper jams and ensure consistent operation. At its core is a high-quality ROHM print head, designed for a long operational life of over 150 kilometers. This makes it a durable and dependable workhorse for any high-traffic retail, hospitality, or service location.
Integration is straightforward and versatile. The printer supports a wide range of operating systems including Windows, Linux, Android, and Raspberry Pi, communicating via standard RS-232C or USB interfaces. It utilizes the universal ESC/POS command set and supports barcode printing, ensuring broad compatibility with existing software and hardware setups for a hassle-free installation.
Completing its feature set are practical touches like customizable case colors to match your kiosk's branding. With a compact, lightweight design and robust specifications tailored for continuous operation, the MS-FPT302 panel printer delivers the perfect blend of speed, durability, and integration flexibility for any modern point-of-service or self-service application.
| Mechanism Model | ROHM | |
| Mechanism | Printing method | Thermal dot line |
| Dot numbers（dots/line） | 576 dots/line | |
| Resolution （dots/mm） | 8 dot/mm | |
| Printing speed（mm/s）max | 250 mm/s | |
| Paper width（mm） | 58mm or 80mm | |
| Printing width（mm） | 72 | |
| Roll diameter max | Φ80 mm | |
| Paper thickness | 60～120 μm | |
| Paper loading method | Easy loading | |
| Auto cutting | Full / partial | |
| sensor | Printer head | thermistor |
| Paper end | Photo interrupter | |
| Power feature | Working voltage（Vp） | DC 24V |
| Power consumption | 2A（average） | |
| Peak current | 6.5A | |
| Environment | Working temperature | -10～50℃ |
| Working humidity | 20～85%RH | |
| Storage temperature | -20～60℃ | |
| Storage humidity | 10～90%RH | |
| Reliability | Cutter life (cuts) | 1,500,000 |
| Pulse | 100,000,000 | |
| Printing length（km） | Over 150 | |
| Property | Dimension (mm) | 127×127×100 |
| Weight (g) | 900 (without paper roll ) | |
| Support | Interface | RS-232C/USB |
| Commands | ESC/POS | |
| Driver | Windows/Linux/Android/Raspberry Pi | |
