Masung Customizable Embedded Thermal Printer with Multiple Interfaces
The MS-MA90 embedded thermal printer uses a line-type thermal printhead, featuring high-speed printing, low noise, high reliability, high print quality, and a compact structure, making installation and maintenance more convenient and efficient.

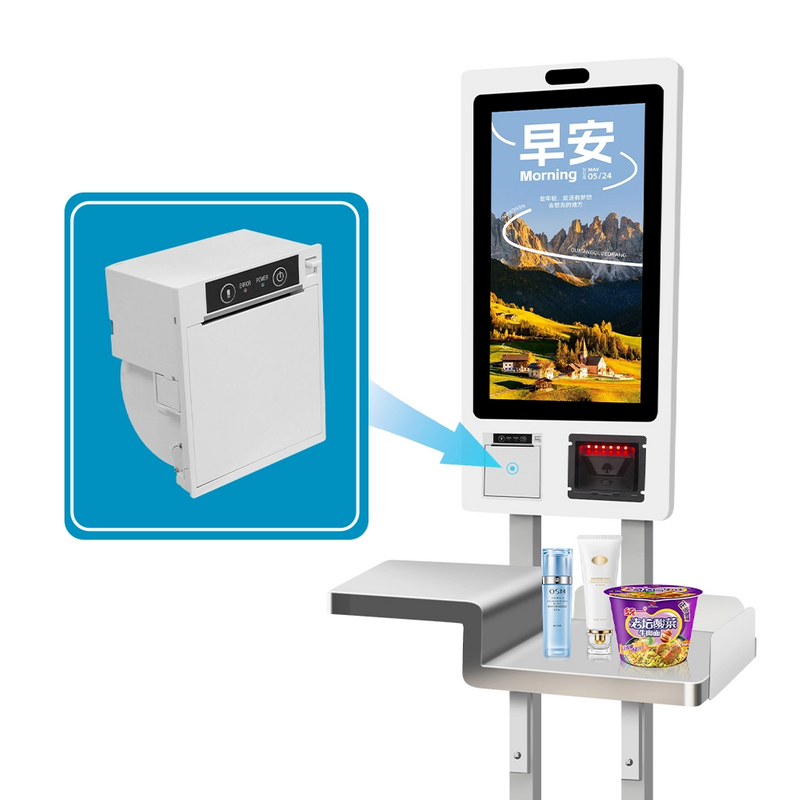

This ALL-IN-ONE embedded printer integrates the control board and the printing core into a single unit, significantly saving module space and greatly facilitating mold development and design. This compact embedded thermal printer for kiosks boasts features such as easy paper loading and a sliding automatic paper cutter.
This ALL-IN-ONE embedded printer integrates the control board and the printing core into a single unit, significantly saving module space and greatly facilitating mold development and design. This compact embedded thermal printer for kiosks boasts features such as easy paper loading and a sliding automatic paper cutter.
| Quantity: | |
|---|---|
-
MS-MA90
-
MASUNG
58/80mm Auto Cutting Thermal Panel Receipt Printer with USB Serial Port for Kiosk Machine
This embedded thermal printer offers multiple cover opening methods and features simple, multi-functional controls, including
* Cover opening methods: push-button, key, and electronic opening
* Black mark and low paper detection
* Multiple sensors assist in control
* Unattended embedded thermal printer
* Diverse interface options: serial port (RS232) and USB are available, with comprehensive software commands and simple drivers (XP/Win7/Win8/Linux/Android).
* The printer control board supports printing various barcodes, including EAN8, EAN13, CODE39, and CODE128 (1D barcodes).
* The printer control board supports QR code printing.
* Characters: Simplified Chinese (GB-18030), Traditional Chinese (GIG-5), Korean, Japanese (Shift-JIS), Vietnamese (Code1258), Euro symbol (Code855), Cyrillic 2 (Code866), etc. Note: For downloading characters from various countries or rare characters, please contact our company for dedicated processing; unless otherwise specified, the font library is mainly ASCII 12*24 dots and GBK-18030, 24*32 dots at the factory, and there is no need to switch between Chinese and English.
58/80mm Auto Cutting Thermal Panel Receipt Printer with USB Serial Port for Kiosk Machine
This embedded thermal printer offers multiple cover opening methods and features simple, multi-functional controls, including
* Cover opening methods: push-button, key, and electronic opening
* Black mark and low paper detection
* Multiple sensors assist in control
* Unattended embedded thermal printer
* Diverse interface options: serial port (RS232) and USB are available, with comprehensive software commands and simple drivers (XP/Win7/Win8/Linux/Android).
* The printer control board supports printing various barcodes, including EAN8, EAN13, CODE39, and CODE128 (1D barcodes).
* The printer control board supports QR code printing.
* Characters: Simplified Chinese (GB-18030), Traditional Chinese (GIG-5), Korean, Japanese (Shift-JIS), Vietnamese (Code1258), Euro symbol (Code855), Cyrillic 2 (Code866), etc. Note: For downloading characters from various countries or rare characters, please contact our company for dedicated processing; unless otherwise specified, the font library is mainly ASCII 12*24 dots and GBK-18030, 24*32 dots at the factory, and there is no need to switch between Chinese and English.
