MS-7710 Embedded QR and Barcode Scanner for Kiosk

Fast and Reliable Code Decoding

The MS-7710 uses self-developed decoding technology to provide rapid and reliable barcode recognition. As a compact embedded barcode reader, it supports common 1D codes such as UPC-A, UPC-E, EAN-13, EAN-8, Code 128 and Code 39, as well as 2D formats including QR Code, Data Matrix and PDF417. Its ≥5 mil resolution enables detailed code reading in a range of applications.

Designed for Mobile and Electronic Screens

Its wide-angle optical design makes the scanner easier to use when reading codes from mobile phones at close range. The module can decode electronic screen codes with different densities, colours and contrast levels, making it a practical embedded qr code scanner for mobile payment, ticketing, identification and self-service applications. Depending on the model, the depth of field for Alipay and WeChat codes reaches up to 450 mm.

Compact Design and Flexible Integration

With dimensions of 64.8 × 60.5 × 21.2 mm and a weight of only 30 g, the barcode reader module is suitable for devices where internal installation space is limited. It supports TTL/RS-232, USB and USB COM interfaces, with options including TTL 3.3 V and TTL 5 V. Physical interface options include a 12-pin 0.5 mm FPC and a 6-pin MX1.25-pitch terminal block, providing flexibility for OEM and embedded integration.

Built for Self-Service Equipment

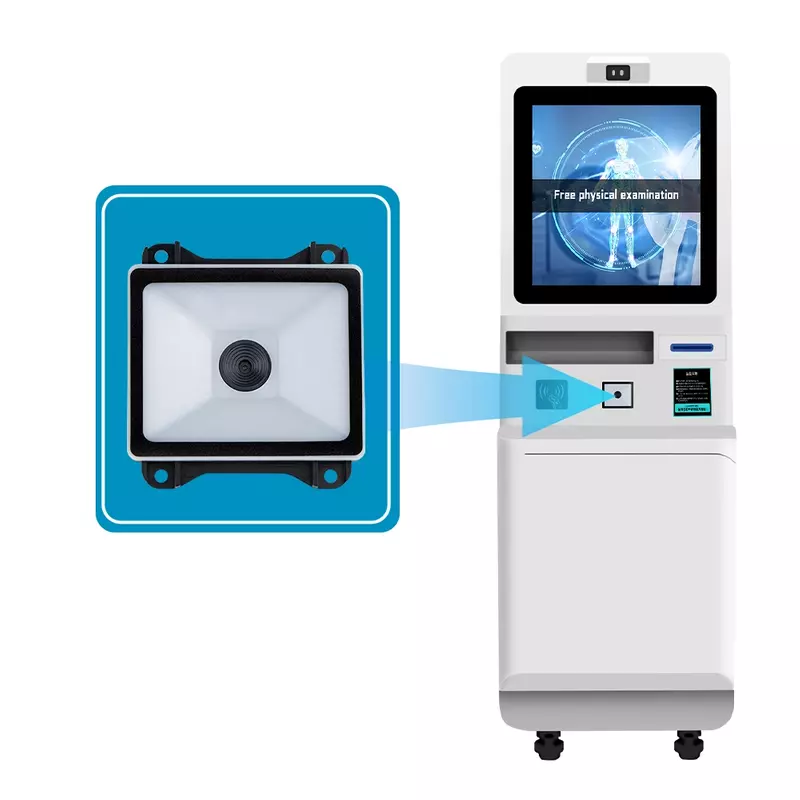

The MS-7710 barcode scanner module is designed for applications including access control, face-recognition equipment, desktop self-service terminals, self-service inquiry systems, queuing systems, gates, financial equipment, medical equipment, express delivery equipment and cashier systems. Its 3.6–6 V wide-voltage design helps maintain stable operation despite voltage fluctuations, while the operating temperature range of -20°C to +60°C supports use in different environments. Optional OCR-B character reading is also available for applications requiring OCR recognition.
