MS-LB401
Masung
The MS-LB401 can be configured for direct thermal or thermal transfer printing, supporting different wristband production requirements. Its mixed-base ribbon compatibility makes it suitable for various wristband types and applications, from medical identification bands to event and decorative wristbands. The printer supports materials including PVC, paper, Tyvek, and synthetic fabrics, subject to material compatibility.
With a 300 dpi wristband printer resolution and a maximum printing speed of 6 inches per second, the MS-LB401 is designed for efficient on-demand wristband production. Its high-precision sensors help maintain accurate paper positioning and consistent printing, supporting clear patient information, barcodes, QR codes, names, dates, and other identification details.
The MS-LB401 uses USB as a standard communication interface and can be equipped with additional Bluetooth, Wi-Fi, Ethernet/Network, and Serial ports. This flexible connectivity allows the medical wristband printer to integrate with hospital HIS systems, event management software, computers, and other digital workflows for convenient data customisation and printing.
Weighing approximately 1.65 kg and measuring 245 mm × 145 mm × 170 mm, the MS-LB401 is designed for space-conscious installations and mobile deployment. It uses manual paper feeding with an adjustable limit module and supports wristband paper up to 60 mm wide, with a printable width of 26–54 mm. Complimentary accessories are also available to support practical setup and operation.

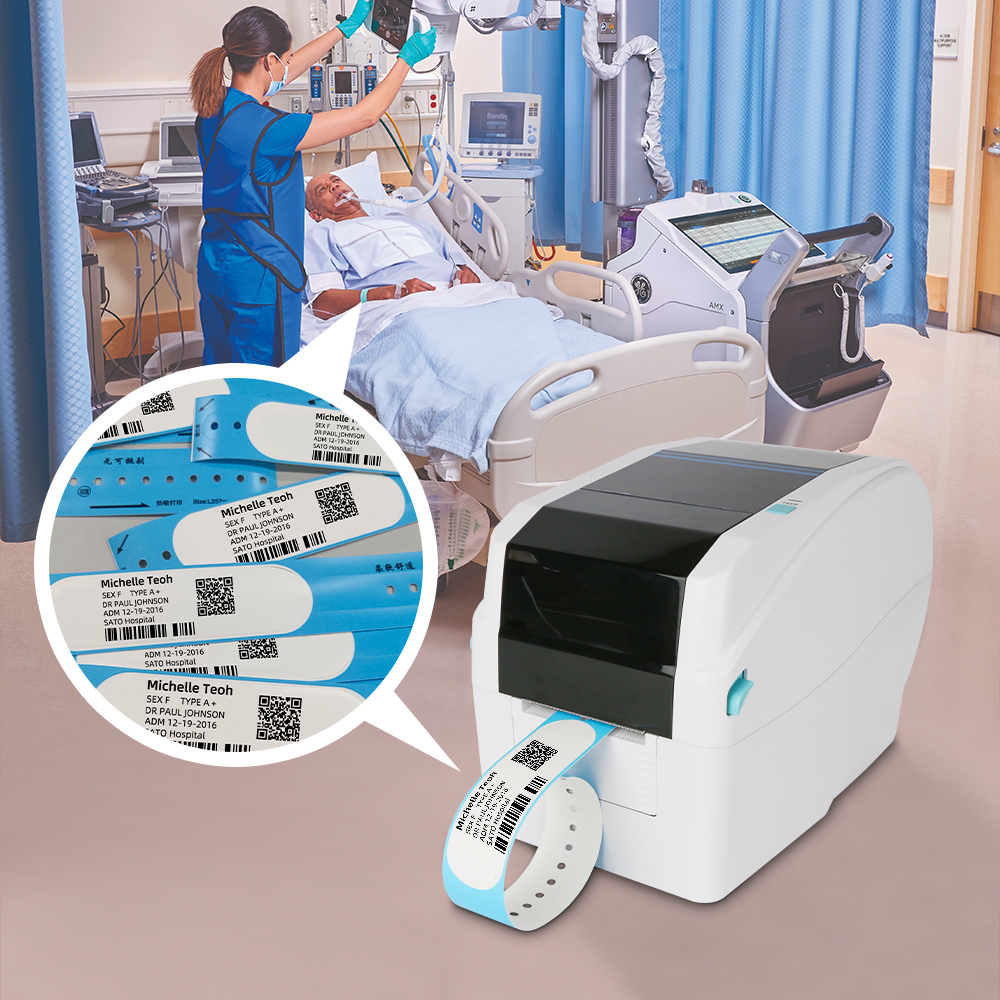

The MS-LB401 is suitable for hospitals and healthcare facilities for patient identification, medical ID wristbands, and barcode-based identification; for events and entertainment venues for access control, admission, and guest identification wristbands; and for hospitality, parties, festivals, conferences, and other temporary events requiring customised wristband printing. Its compact design also makes it suitable for reception desks, patient registration areas, event check-in counters, ticketing points, and other on-demand printing locations.

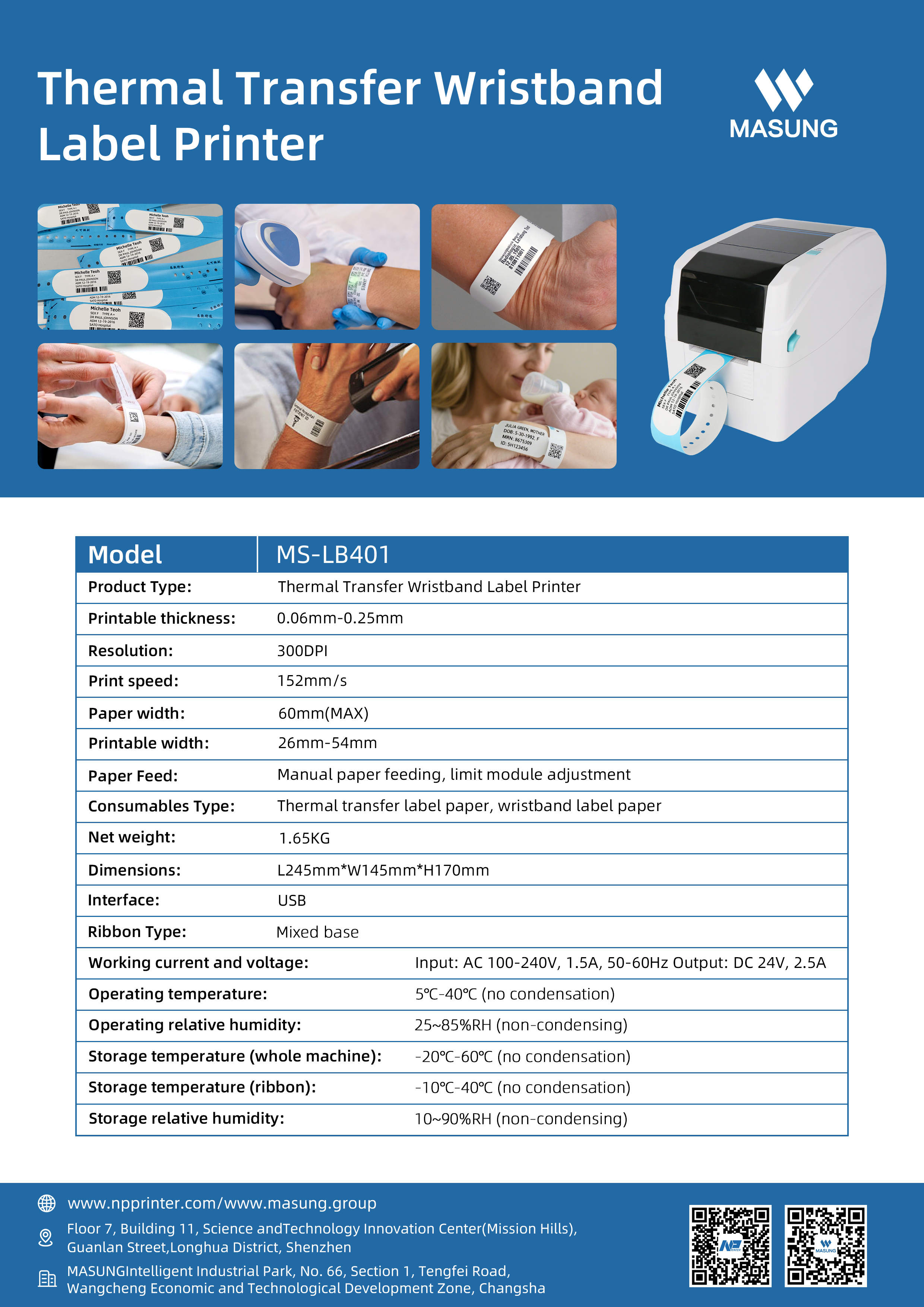

Model | MS-LB401 |
Product Name | Wristband printer |
Paper Thickness | 0.06-0.25mm |
Paper Feed Method | Manually feed the Paper and adjust the limit module. |
Resolution | 300DPI |
Printing Speed | 6inch/s(MAX) |
Adjustable Paper Width | 60mm（MAX） |
Printable Width | 26-54mm |
Specifications of Wristband Paper | Outer diameter of the paper roll: 127mm (MAX) Inner diameter of the paper core: 25.4mm - 50mm |
Ribbon Type | mixed-based |
Communication Interface | USB with other spare ports (Bluetooth, Wi-Fi, Ethernet/Network and Serial port) |
Operating Voltage and Current | Input: AC 100-240V,1.5A, 50-60Hz Output: DC 24V, 2.5A |
Operating Temperature | 5℃ - 40℃ (no condensation) |
Operating Relative Humidity | 25~85%RH (no condensation) |
Storage Temperature (Whole Machine) | -20~60℃ (no condensation) |
Storage Temperature (Ribbon) | -10~40℃ (no condensation) |
Storage Relative Humidity | 10~90%RH (no condensation) |
Net Weight | 1.65KG |
Overall Dimensions | 245mm(D)x145mm(W)x170mm(H) |
