MS-S33
Masung

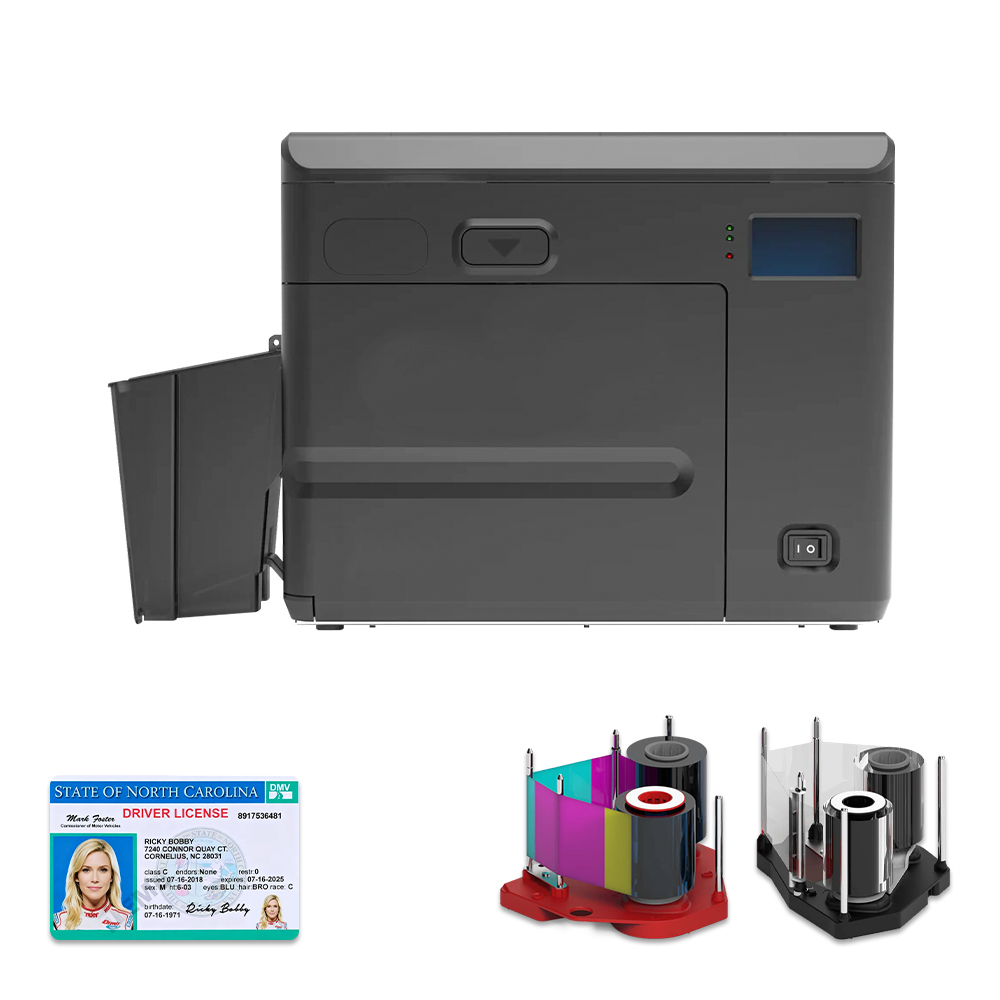

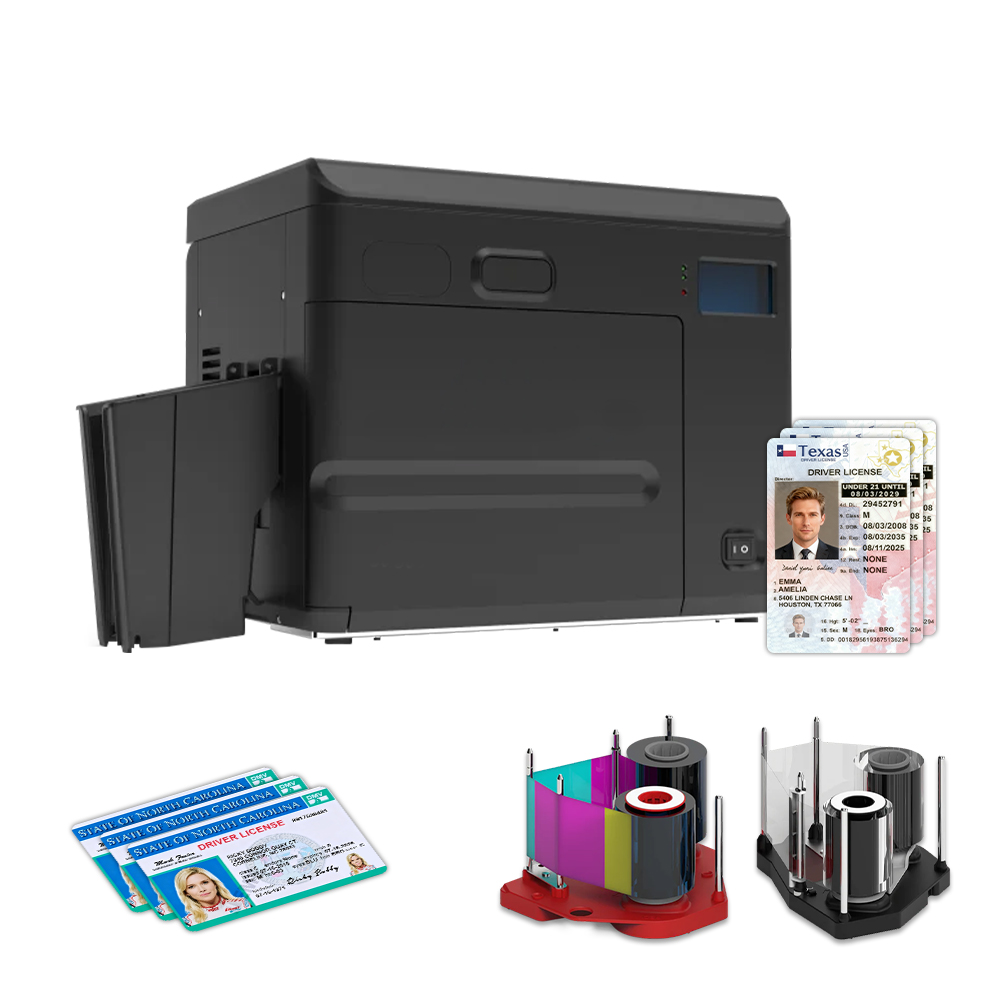

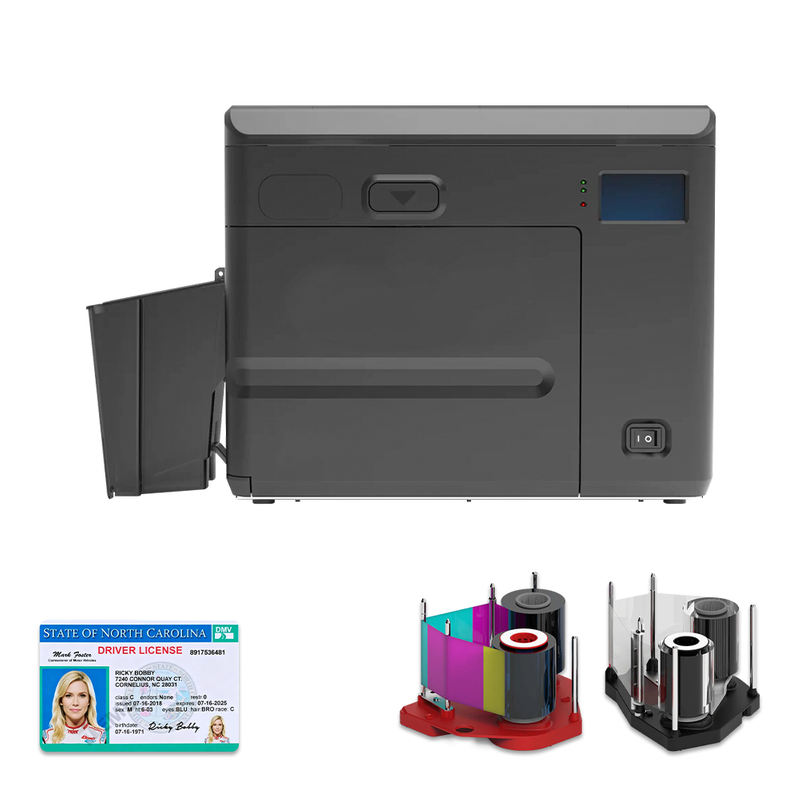

The MS-S33 is a state-of-the-art secure ID card printing machine engineered for the production of high-security driver's licenses and identification cards. Its compact design is versatile enough for central issuance as well as instant office or service window use, providing durable, tamper-proof credentials to meet both government and corporate needs. This driver's license printing machine is built to deliver reliability in demanding environments.

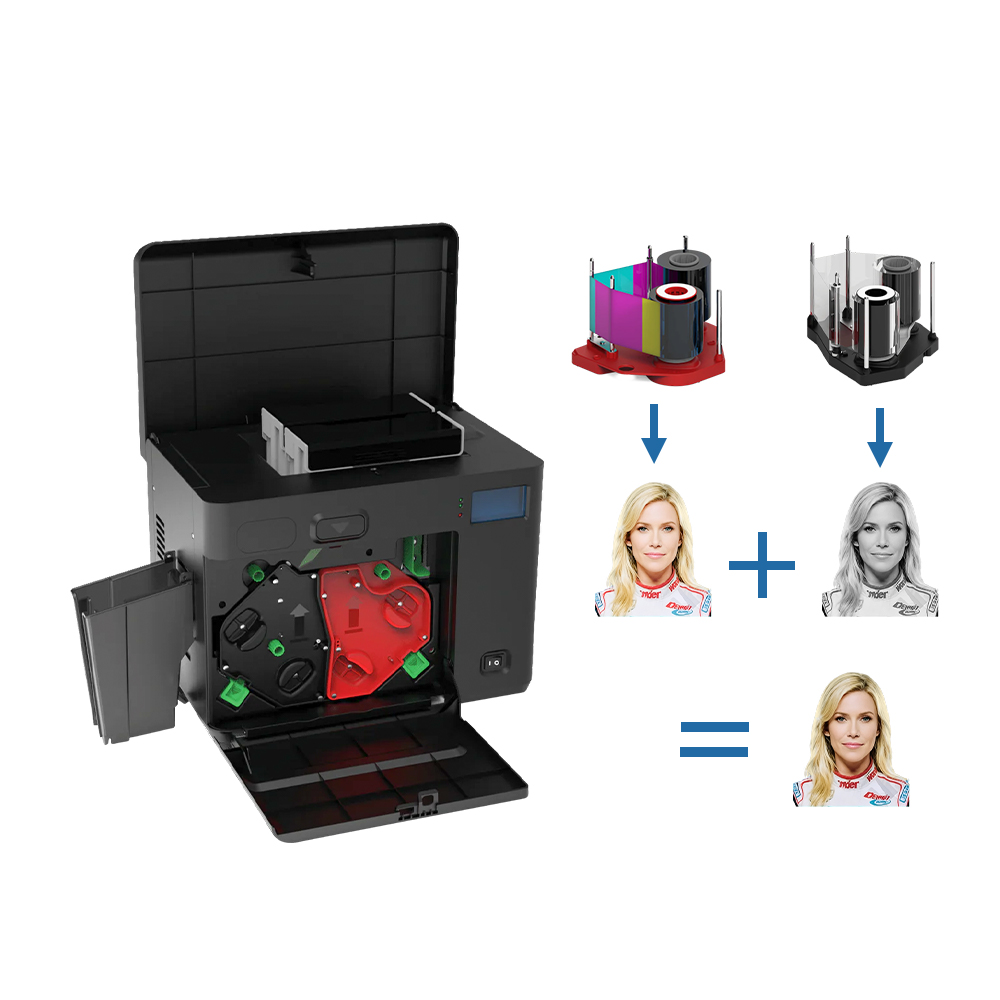

At the heart of its security is a hybrid laser engraving process. This patented technology first prints a high-resolution color image via thermal transfer and then permanently laser-engraves black text and security features directly beneath the surface. This method creates a powerful physical anti-forgery barrier, as the engraved data remains intact even if the surface print is altered, ensuring the integrity of each card produced by this driver license maker machine.
For uncompromised security, the laser card printer is equipped with high-security laser marking capabilities. It utilizes a powerful 3rd-generation MOPA fiber laser with 1200 dpi resolution, enabling intricate features like microtext, embossing, and rasterization on polycarbonate and composite plastics. This laser ID card printer masterfully balances speed, with an output of up to 150 cards per hour, with the deep customization required for secure official documents.

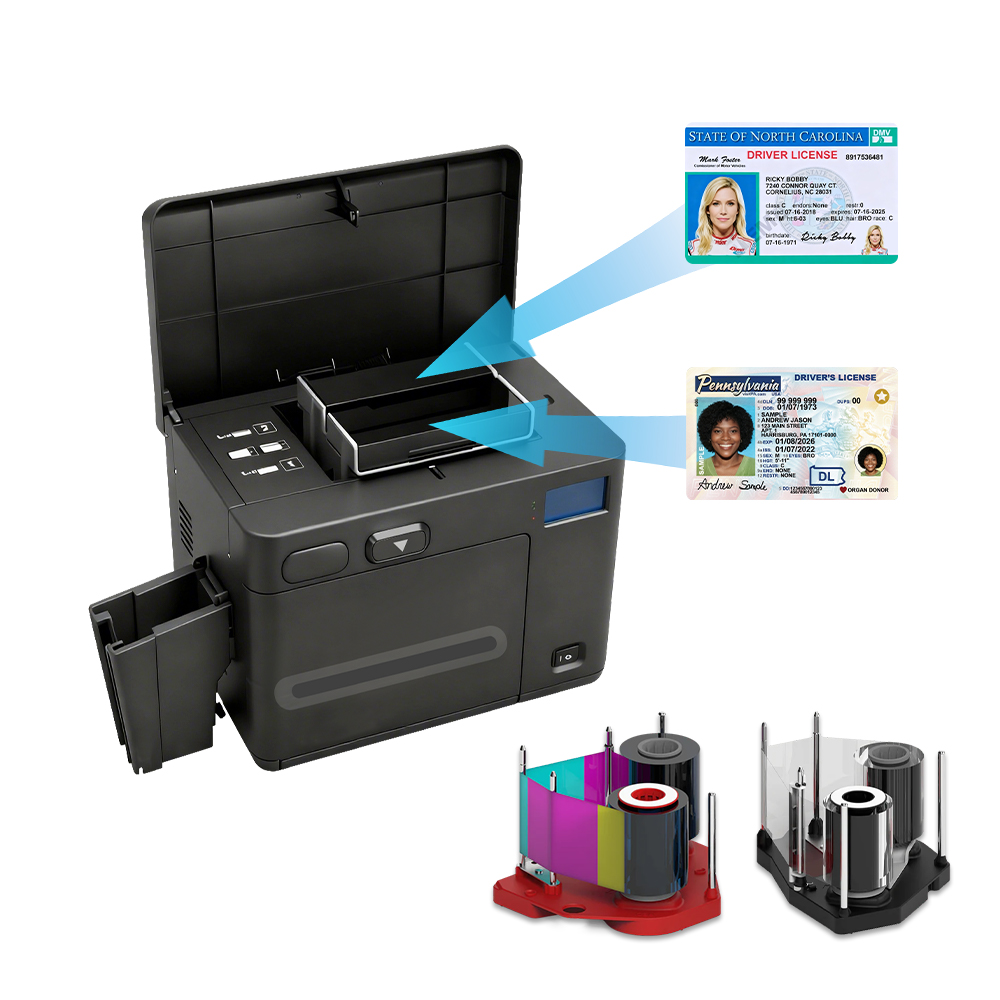

Operational efficiency is a key benefit of the MS-S33 laser engraver ID card printer. Designed as an efficient card issuance solution, it features a dual-feed hopper system with a 600-card capacity, enabling uninterrupted batch production. It connects seamlessly via Ethernet with an intuitive web interface for easy management and offers optional integration for both contact and contactless smart card encoding, making it a comprehensive, secure ID card printing machine.
Laser Type | Master Oscillator Power Amplifier (MOPA) GEN 3 LX fiber laser |
Resolution | 1200 dpi |
Laser Engraving Area | 56 x 88 mm (over-edge) (CR-80 cards) |
Laser Engraving Speed | Up to 150 sheets/hour (batch double-sided) in laser mode |
Single- or double-sided laser lifespan | Minimum 10,000 hours Communication Interface |

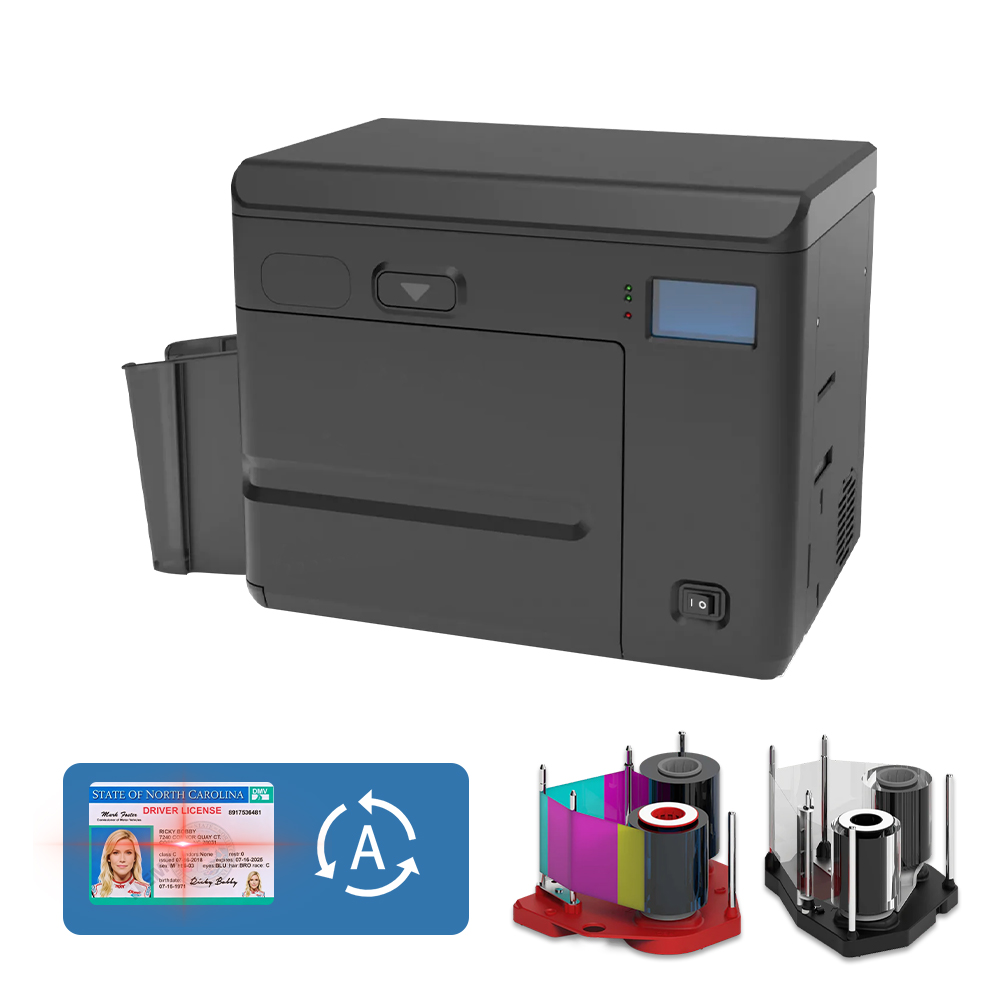

Ethernet vision system | XY automatic positioning, OCR recognition, barcode recognition |
Printer Dimensions (HxWxD) | 351 x 428 x 279 mm |
Printer Weight | 19 kg |
Standard Printer Security | • Security lock supported • Top cover lock for securing the card feed hopper • Front door lock for securing the device interior and reject card tray |
Power Supply | 100-240V AC, 50-60Hz, 600W |
Operating Environment | Temperature: 15°C - 40°C |
Humidity: 30% - 70% Storage Conditions (non-condensing) | |
Temperature: 5°C - 70°C | |
Humidity: 20% - 70% (non-condensing) | |
Noise (ISO 7779) | |
Noise level less than 48dB (A) | |
Certifications | RoHS, CE, WEEE, TÜV laser certifications |
Warranty | • 1 year • Optional 1-year extended warranty |
