MS-CH570
Masung

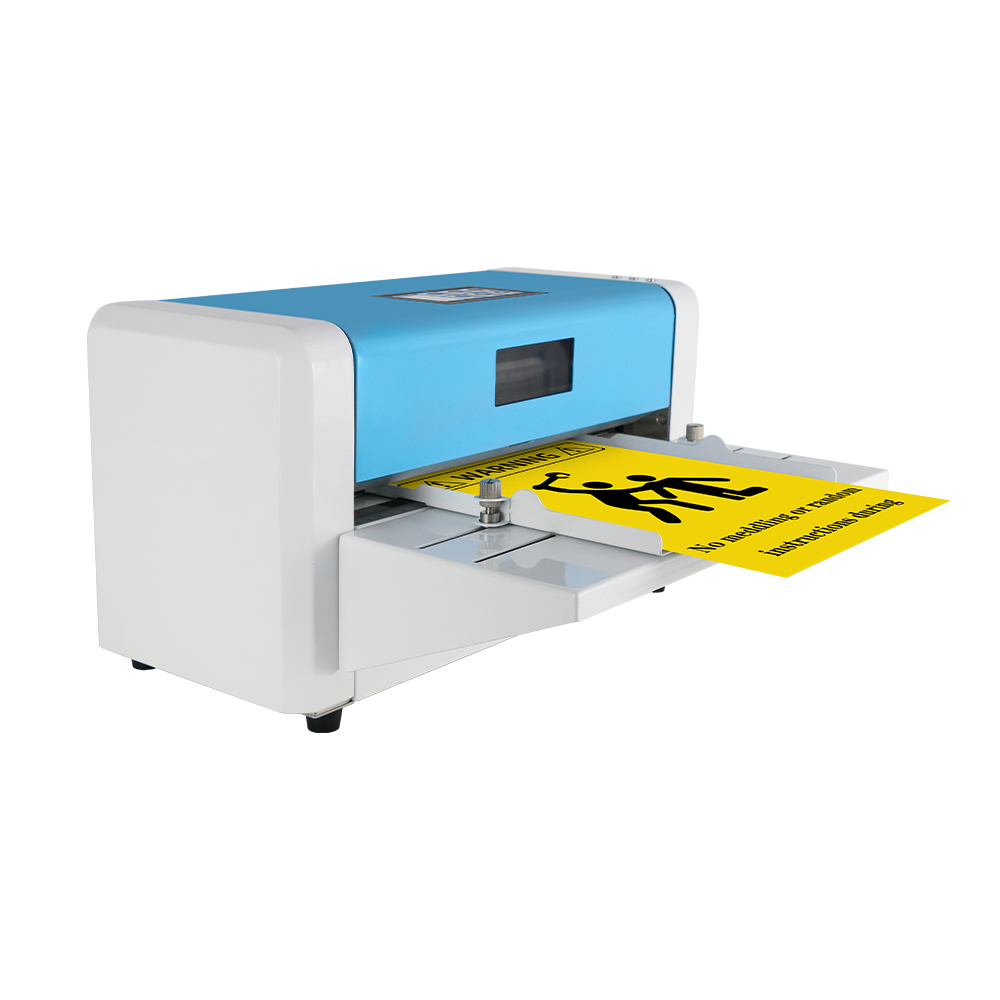

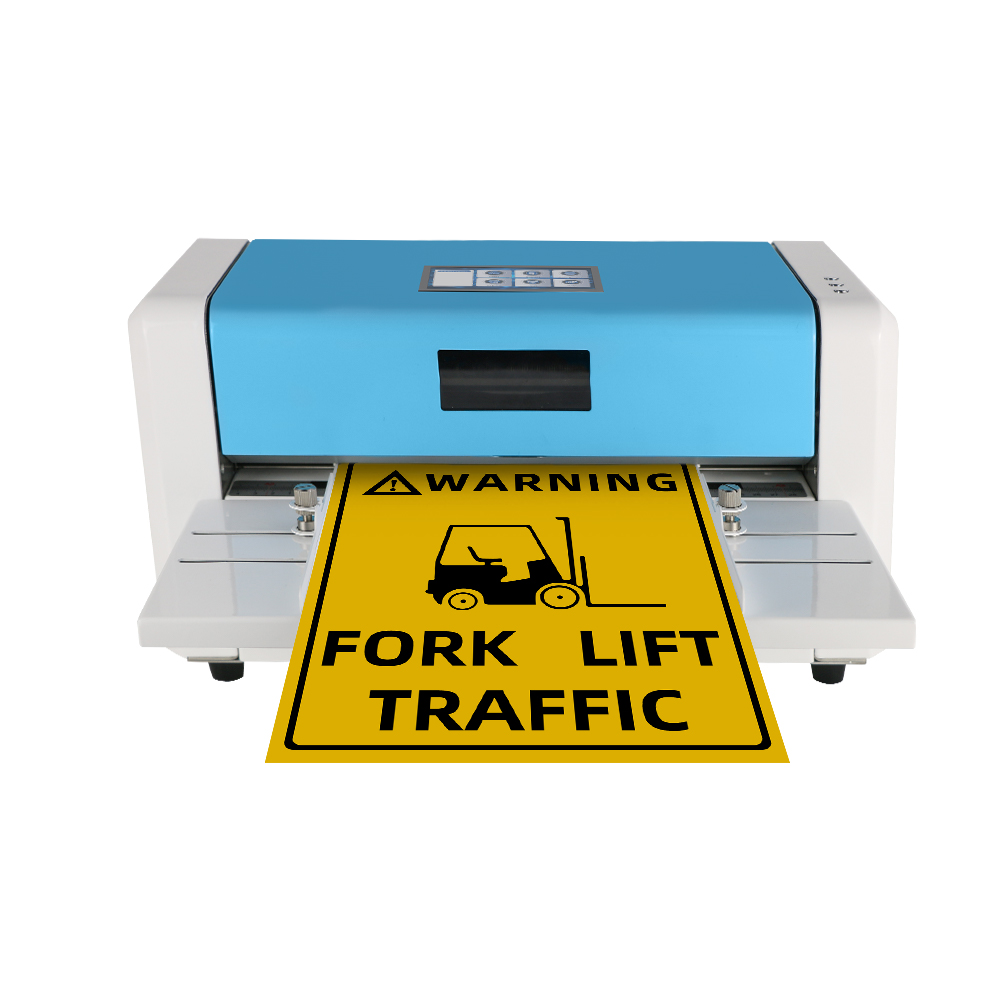

High-Performance Thermal Transfer Label Printer:
Industrial-Grade Printing – The MS-CH570 is a wide-format thermal transfer printer designed for business and industrial use, featuring an intuitive touchscreen interface for easy operation,

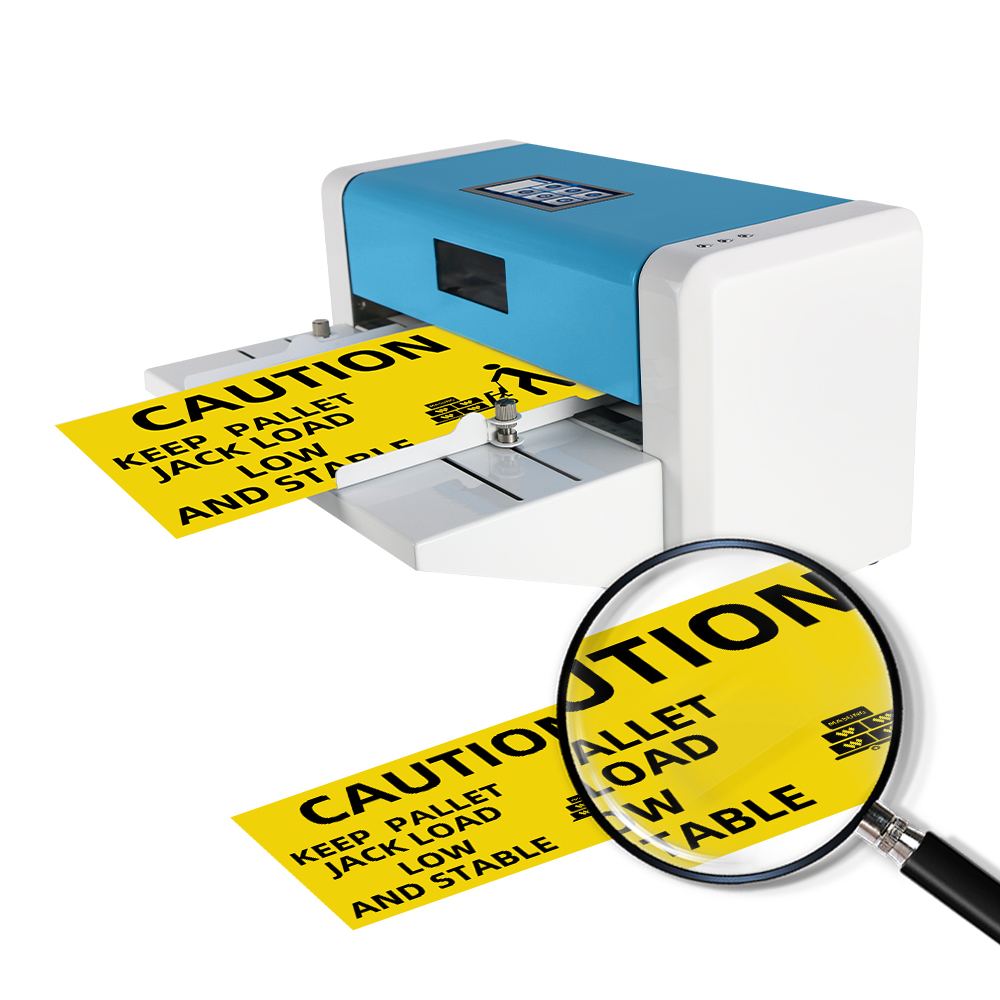

Crisp, Durable Prints – It produces high-resolution, scratch-resistant, and fade-proof labels, ideal for demanding environments, with compatibility for various printing materials.
Seamless Connectivity – The industrial thermal transfer printer connects via USB, allowing direct editing, typesetting, and printing from a computer or laptop for efficient workflow integration.
Versatile Applications – Perfect for printing electrical hazard signs, safety warning signs, trash can signs, garbage can sign, trash bins signage, license plates, academic certificates, document cases, and bulk
labels (e.g., wine bottles, shampoo, water) with speed and precision.
Reliable & User-Friendly – With fast printing, low maintenance, and consistent performance, the MS-CH570 business thermal transfer printer ensures professional-quality signage with minimal effort.
The wide format label printer is compatible with wide range of materials including:
A. Primary Film (like PET, PVC, OPP, LDPE, CPP, ...)/Lamination/Printed Film.
B. Hot Stamping Foil, Metalized Foil, Graphic Foil.
C. Aluminum Foil or Copper Foil.
D. Adhesive Paper Labels.
E. Stretch Film, Cling Film.
F. Non-woven Fabric/Nylon/Mask Fabric/Blown Metal Fabric.
G. Paper, Thermal Paper, Kraft Paper, 12-250 Micron

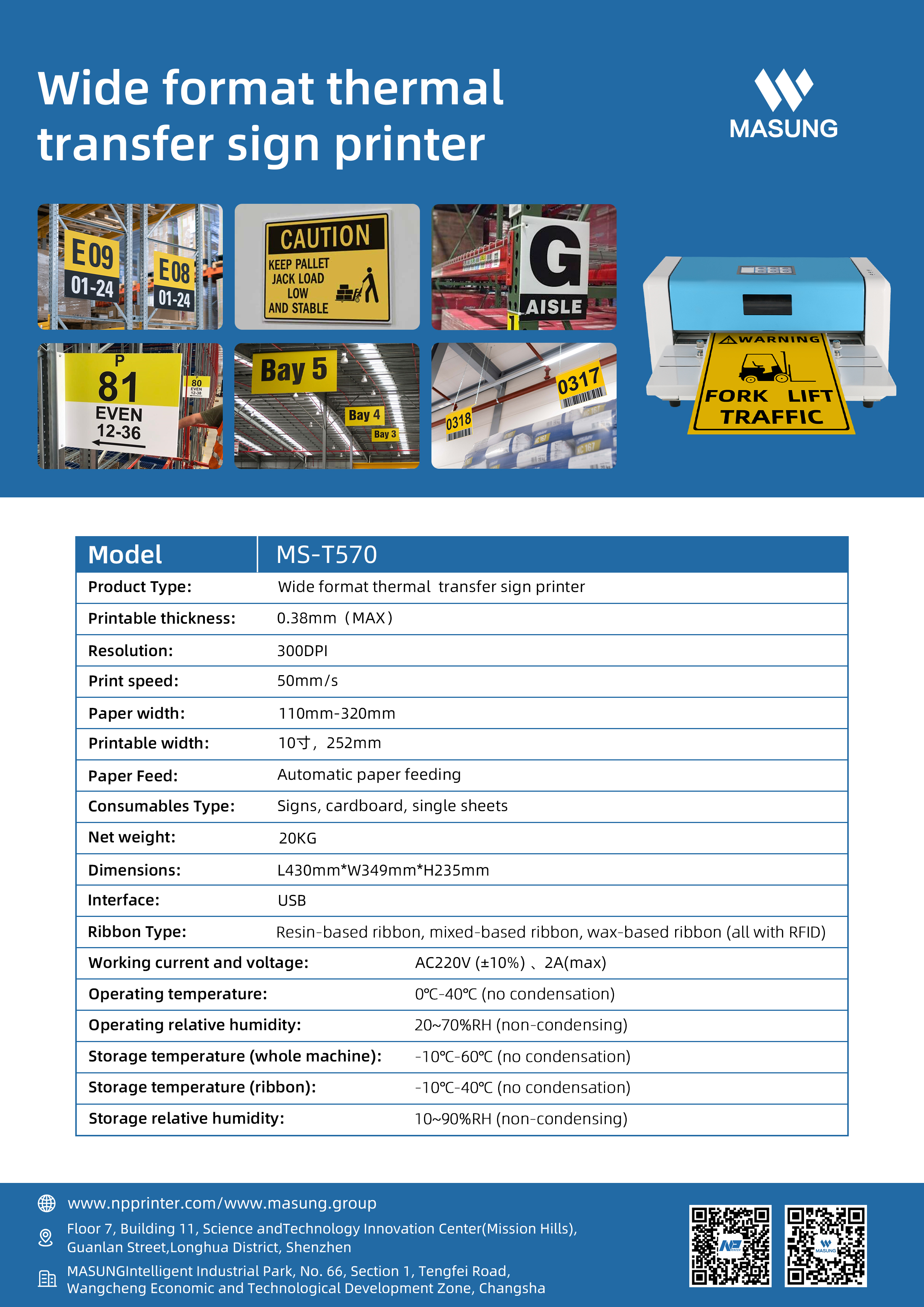

| Product Name: | Wide-Format Thermal Transfer Label Printer |
| Paper Thickness: | 0.38mm (Max) |
| Paper Feed: | Labels, cardstock, automatic sensor feed |
| Resolution: | 300 DPI |
| Print Speed: | 2 inches/s |
| Paper Width: | 110 mm-320 mm |
| Print Width: | 10 inches (252mm) |
| Ribbon Type: | Resin-based, mixed-based, wax-based (all with RFID) |
| Communication Interface: | USB |
| Operating Voltage and Current: | AC220V (±10%), 2A (max) |
| Operating Temperature: | 0°C-40°C (non-condensing) |
| Operating Relative Humidity: | 20-70% RH (non-condensing) |
| Storage Temperature (Complete): | -10-60°C (non-condensing) |
| Storage Temperature (Ribbon): | -10-40°C (non-condensing) |
| Storage Relative Humidity: | 10-90% RH (non-condensing) |
| Net Weight: | 20kg |
| Dimensions: | 430 mm * 349 mm * 235 mm |
The MS-CH570 high-resolution thermal transfer label printer can be customized to use in following scenarios:
