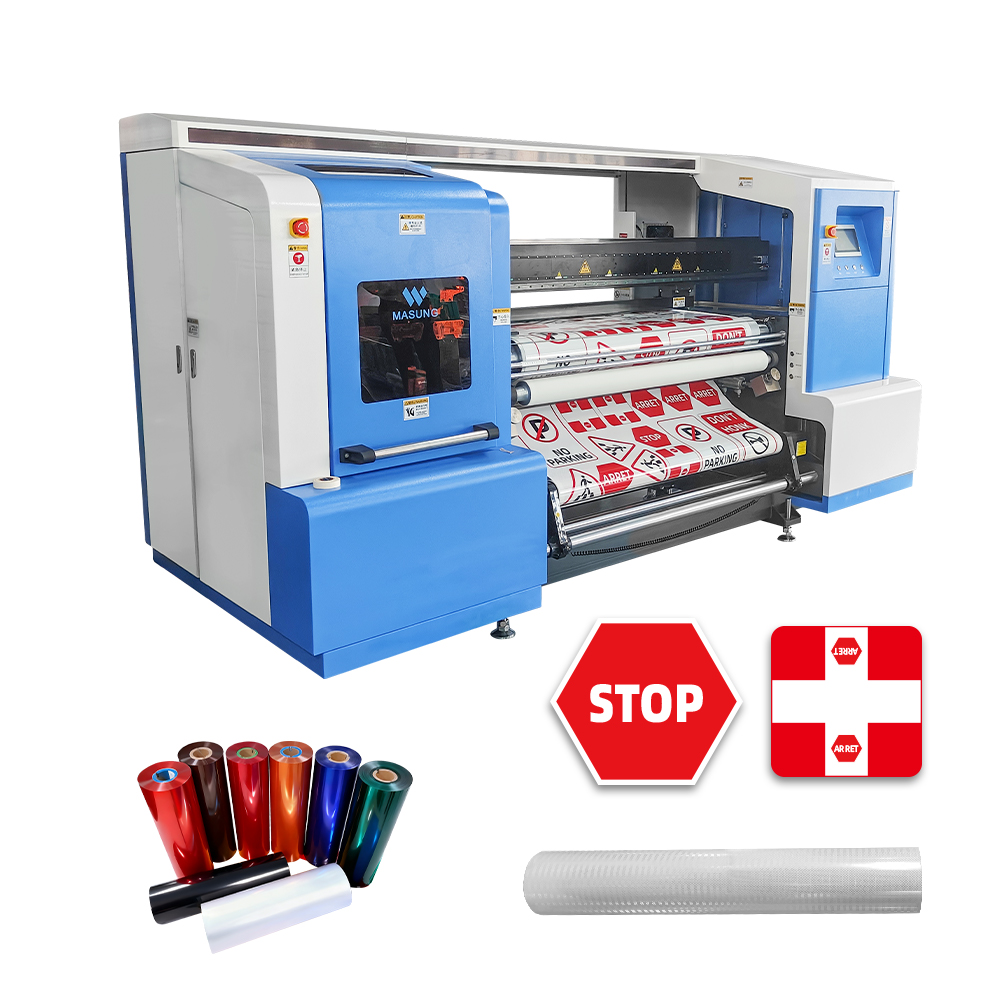

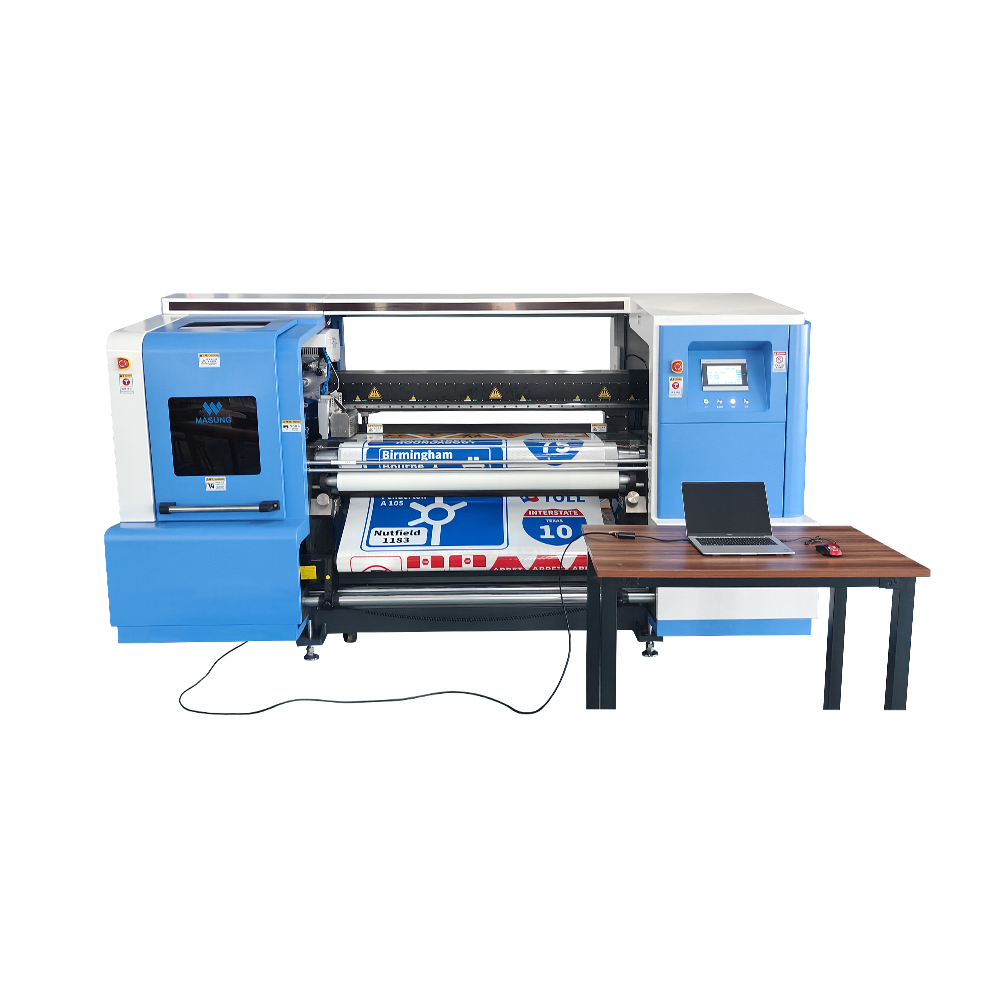

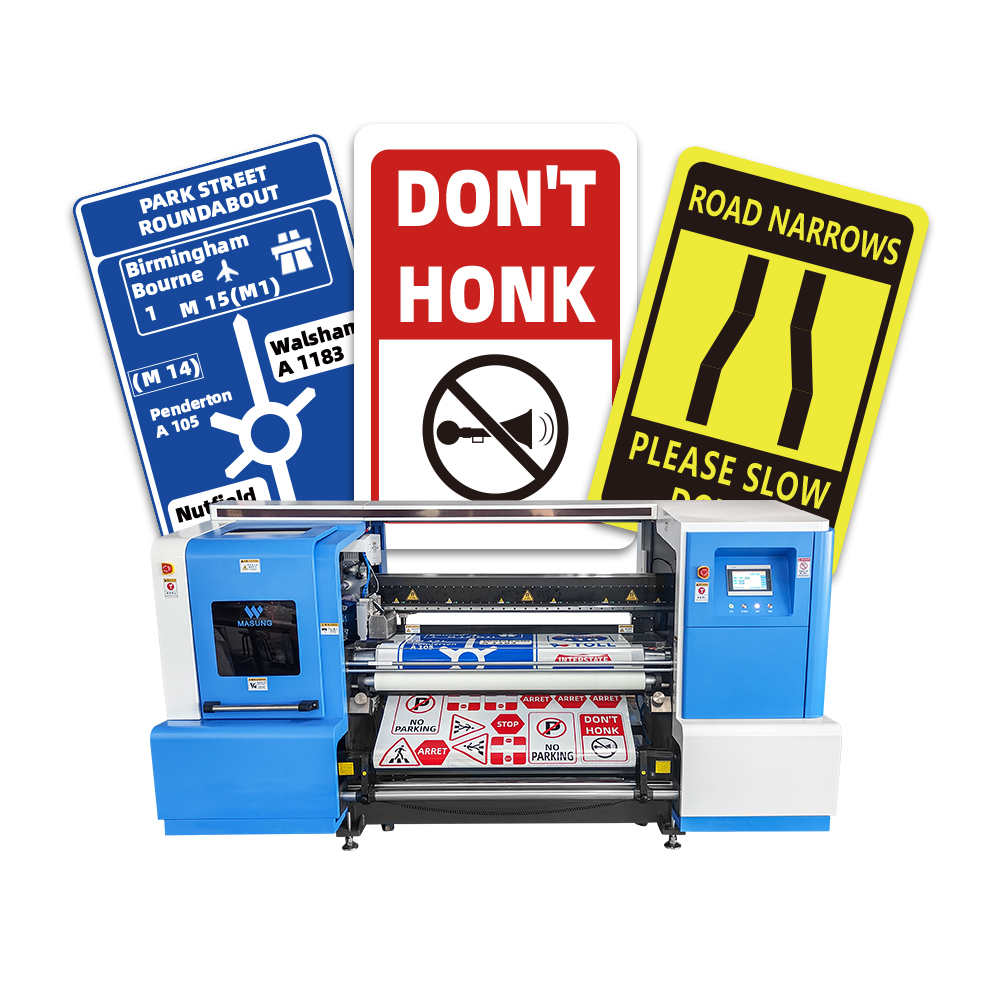

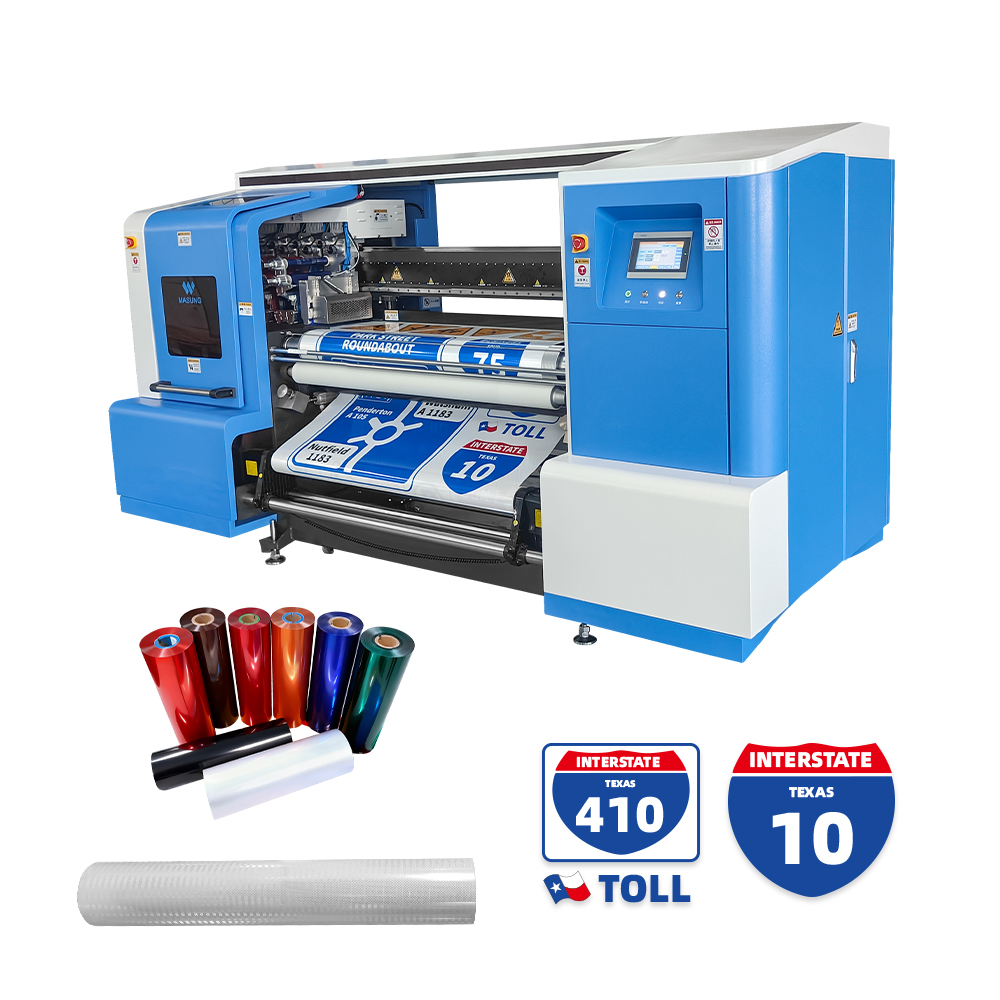

Masung MS-1590: Industrial Digital Traffic Sign Printer for Durable, High-Visibility Road Signs
The Masung MS-1590 revolutionizes on-demand sign production as a robust digital traffic sign printer engineered for unmatched efficiency and durability. This advanced road sign printing machine delivers exceptional value by slashing material costs by 37.5% and boosting production speed fivefold compared to traditional methods.
Built with severe weather in mind, it utilizes thermal transfer technology to create vibrant, reflective traffic signs tested to withstand extreme temperatures from -50°C to 70°C, guaranteeing a long-lasting solution that enhances road safety and reduces operational expenses for municipalities and contractors alike.
If you feel this machine is too bulky to order, we offer personalizable traffic sign printing solutions instead.
| Quantity: | |
|---|---|
-
MS-1590
-
Masung
Unmatched Efficiency in Sign Production
Step into the future of signage manufacturing with the Masung MS-1590. This high-performance street sign printer is engineered for speed, capable of producing up to 25 square meters of finished signs per hour. This represents a 500% efficiency increase over manual film application methods, allowing you to meet tight deadlines and handle large-volume projects with ease. The powerful 1.3m wide printhead and intelligent roll-to-roll feeding system make this road sign printer the ideal workhorse for any high-output facility.
Durability That Withstands the Elements
A sign is only as good as its longevity. The Masung MS-1590 traffic sign printer employs professional-grade thermal transfer printing technology to ensure every sign it produces is built to last. Each printed sign is rigorously tested and protected with layers of OC film, guaranteeing a minimum lifespan of 9 years even when exposed to harsh sunlight, heavy rain, and extreme temperature fluctuations from -50°C to 70°C. This commitment to durability makes it a trusted road sign printing machine for creating critical safety signage that communities can rely on.
Maximize Your Budget with Intelligent Cost-Saving Features
The Masung MS-1590 is designed not just for performance, but for profitability. Its intelligent "puzzling" functionality automatically nests designs to minimize material waste, while its innovative printing process cuts reflective film consumption by 37.5%. By reducing the need for a backing film and optimizing every square inch of material, this digital traffic sign printer delivers massive cost savings on consumables, significantly improving your operation's bottom line without compromising on quality.
User-Friendly Operation for Flawless Results

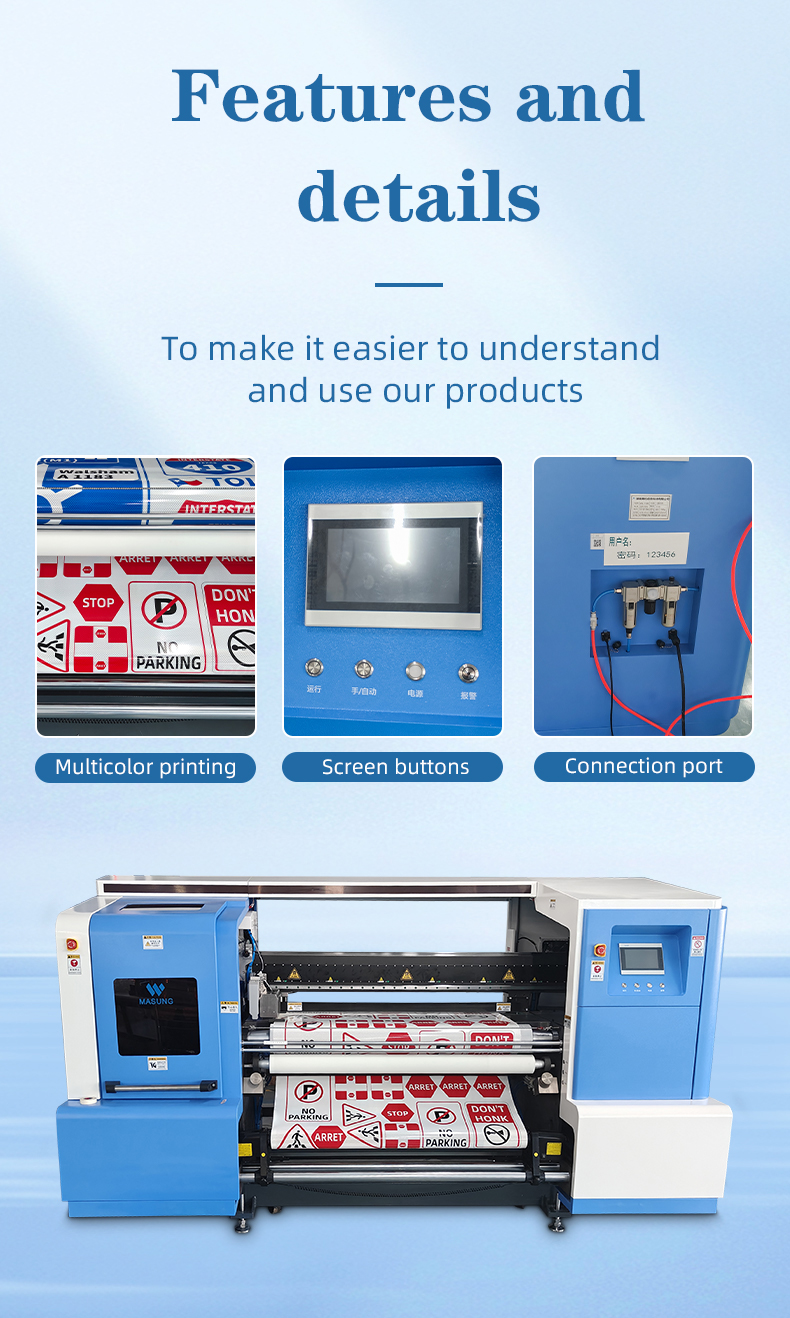

Ease of use is at the core of the Masung MS-1590's design. The one-click automatic printing operation eliminates misalignment and waste, while the integrated cooling system ensures consistent performance during extended high-speed runs. Paired with intuitive, template-free editing software, this traffic sign printer empowers your team to create and produce a wide variety of compliant signs quickly and effortlessly, reducing the need for specialized graphic design skills.
Built for Demanding Professional Environments
As a comprehensive signage solution, the Masung MS-1590 is more than just a street sign printer; it's a complete production system. It supports a wide range of industry-standard materials, including Class II through V reflective films, with a maximum effective print width of 1290mm. Engineered for reliability in a professional workshop, this robust road sign printing machine is the smart choice for public works departments, sign shops, and construction firms looking to bring high-quality, durable traffic sign production in-house.
Specifications:
Printhead Brand | Second-generation Hualing 3DPI Printhead |
Resolution | 300DPI |
Color Registration Accuracy | ±0.15mm |
Number of Printheads | 1*4 (4 printheads total) |

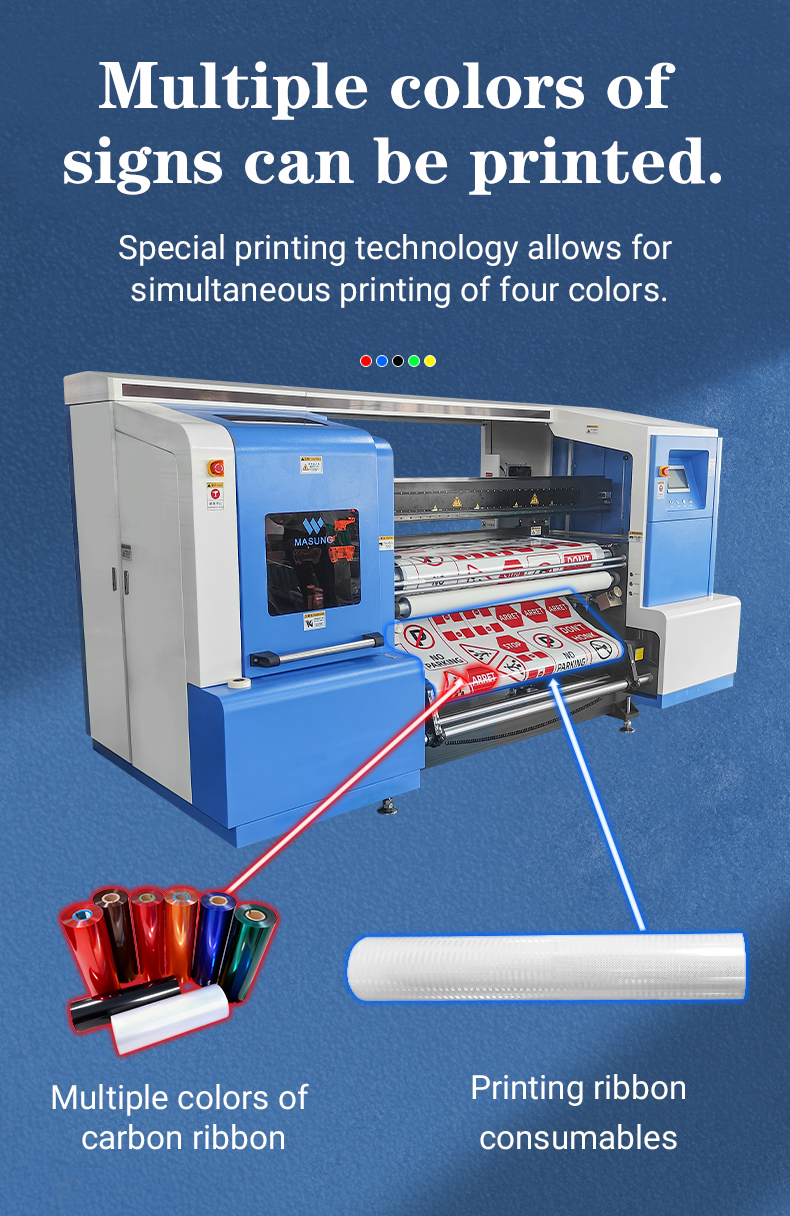

Print Colors | Maximum four colors simultaneously |

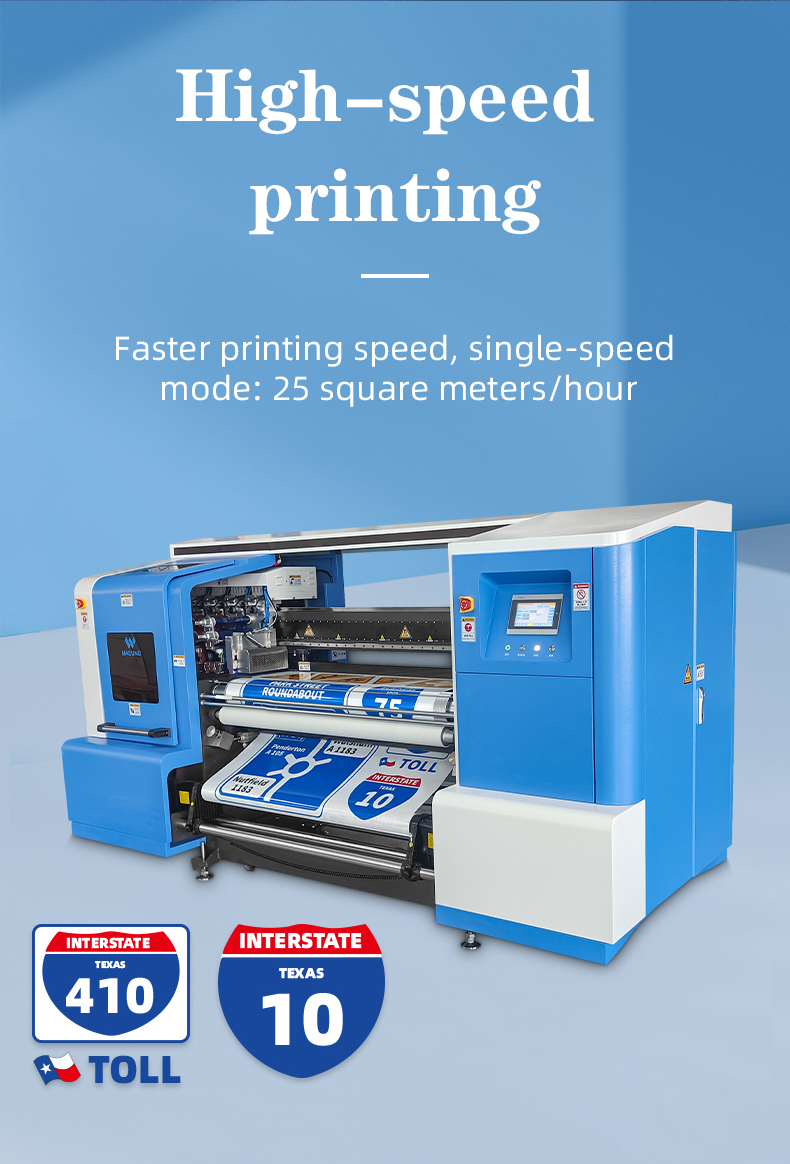

Printing Efficiency | Single speed mode: 25 square meters/hour |
Effective Print Width | Material support: maximum 1300mm, minimum 500mm Maximum effective print width: 1290mm |
Ribbon | Transportation-specific ribbon |
Substrate | Printing on Class II, III, IV, and V reflective films |
Feeding Method | Roll-to-roll |
Maximum Paper Roll Diameter | ≤ 200mm (3-inch paper tube in the center) |

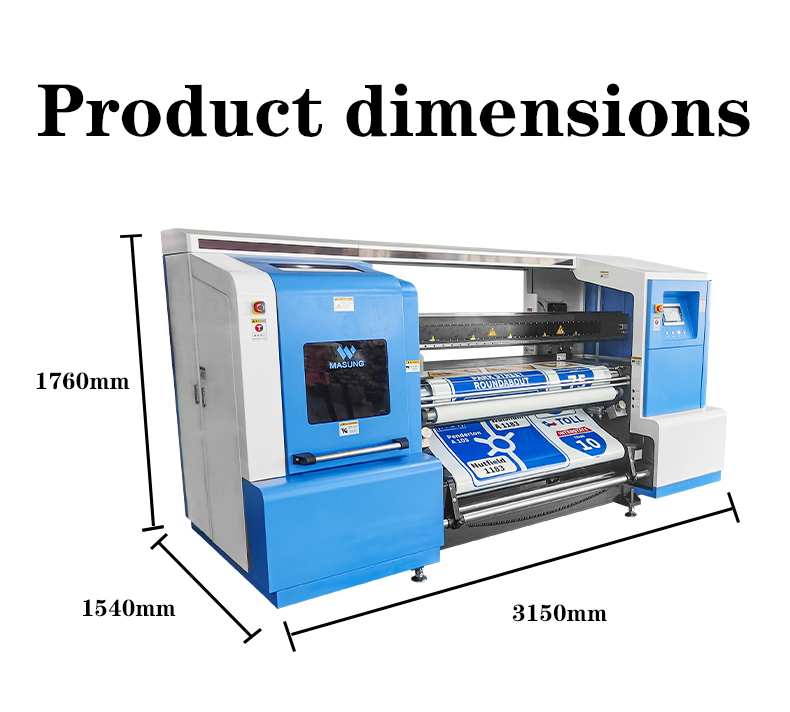

Overall Dimensions | 3150 (L) x 1540 (W) x 1760 (H) (mm) |
Machine Weight | 1532kg |
Operating Voltage | 220V (50Hz) |
Rated Power | 4.5kw |
Operating Air Pressure | 0.3-0.5Mpa |
Optimal Operating Environment | Ambient temperature: 5°C~45°C Ambient humidity: 20% ~ 80% RH (non-condensing) |
Operating Noise | < 75 dB |
