What are the Key Features to Look for in a Barcode Scanning Module for a Kiosk?

A barcode scanning module for kiosks should provide fast and reliable 1D and 2D barcode recognition, read codes from both printed materials and mobile phone screens, support hands-free operation, fit easily into a compact kiosk enclosure, and offer flexible communication interfaces. For OEM kiosk manufacturers, important selection factors also include scanning angle, motion tolerance, operating temperature, ambient-light performance, and integration options.

For self-service kiosks, ticketing machines, access-control terminals, payment equipment, and other unattended devices, choosing the right embedded barcode scanner module can directly affect scanning reliability and the overall user experience.

1. 1D and 2D Barcode Support

The first consideration is barcode compatibility.

A modern kiosk may need to scan traditional 1D barcodes such as EAN, UPC, Code 128, and Code 39, while also supporting 2D formats such as QR Code, Data Matrix, and PDF417.

A 1D/2D scanning module gives kiosk manufacturers greater flexibility because the same hardware can support different applications, from product identification and membership verification to digital tickets, payment codes, and access credentials.

Before purchasing a kiosk barcode scanner module, check its supported symbologies and make sure they match the barcode formats used by the final kiosk application.

2. Reliable Scanning from Mobile Phone Screens

Many modern kiosks need to scan digital rather than printed codes.

Customers may present a QR code displayed on a smartphone for a ticket, membership pass, mobile payment, appointment, identification, or access-control process. A suitable QR code scanner module therefore needs to perform reliably when reading electronic screens.

Screen-scanning performance can vary depending on screen brightness, reflections, barcode size, contrast, and scanning distance. For applications based heavily on digital tickets or mobile QR codes, these factors should be tested before final hardware selection.

3. Wide Scanning Angle and Flexible Positioning

Kiosk users do not always position their phones or tickets perfectly in front of the embedded scanner.

A scanner for kiosks with a suitable viewing angle and decoding tolerance can make the scanning process easier for users. This is especially important for public-facing equipment where users have different heights, hand positions, and scanning habits.

When comparing scanners, OEM manufacturers should check:

· Viewing angle

· Tilt and deflection tolerance

· Scanning distance

· Barcode size

· Minimum barcode resolution

· Rotation tolerance

These specifications can help determine whether users need to position a barcode precisely or can simply present it within a relatively broad scanning area.

4. Fast Scanning and Motion Tolerance

Scanning speed is important when a kiosk processes a large number of users.

A fast kiosk scanner can reduce the time required for each transaction and help maintain smooth user flow. Motion tolerance is also important because users may move their phones, tickets, or cards while scanning.

For applications such as ticketing, transportation, event access, and self-service payment, fast image capture and decoding can help minimize repeated scanning attempts and reduce queues.

5. Automatic and Hands-Free Scanning

Unlike handheld barcode scanners, kiosk modules are normally installed behind a fixed scan window.

An automatic sensing function can detect when a barcode or QR code enters the scanning area and begin decoding without requiring the user to press a physical trigger.

This is particularly useful for unattended equipment such as

· Self-service kiosks

· Ticketing machines

· Access gates

· Turnstiles

· Vending machines

· Visitor terminals

· Payment terminals

A hands-free scanning process can make the user interaction simpler and reduce the number of physical controls required on the kiosk.

6. Compact Embedded Form Factor

Space is often limited inside a kiosk. A barcode scanning module should therefore provide the required scanning performance without taking up unnecessary installation space.

Before selecting an embedded barcode scanner, check:

· Overall dimensions

· Mounting holes

· Scan-window dimensions

· Cable position

· Connector type

· Installation angle

· Required internal clearance

The physical design of the kiosk scanner module should be considered alongside the kiosk enclosure design, particularly when the scanner needs to be positioned behind a custom front panel.

7. Flexible Communication Interfaces

The scanner needs to communicate with the kiosk's main controller.

Common interfaces include USB and RS232, while some embedded applications may require TTL serial communication or other interface configurations.

USB can be convenient for many Windows-based systems, while serial interfaces may be more appropriate for dedicated kiosk controllers and embedded electronics.

The interface should therefore be selected according to the kiosk's motherboard, operating system, and application software rather than based solely on the scanner's decoding performance.

8. Software and System Compatibility

Hardware integration is only part of a kiosk development project. The scanner module also needs to work with the kiosk's software architecture.

Depending on the project, manufacturers may require compatibility with Windows, Android, or Linux, as well as configuration tools, SDKs, communication protocols, or customized commands.

It is also useful to check whether the embedded kiosk scanner allows developers to configure trigger behavior, output formats, decoding settings, and other parameters required by the kiosk application.

9. Environmental Durability

Public kiosks can operate continuously and may be installed in shopping centers, airports, railway stations, hospitals, hotels, factories, or outdoor locations.

Important environmental specifications include:

· Operating temperature

· Operating humidity

· Dust and water protection

· Vibration resistance

· Shock resistance

· Expected service life

· Ambient-light tolerance

For outdoor or semi-outdoor kiosks, environmental protection and sunlight tolerance may be especially important.

The scanner should be evaluated according to the actual installation environment rather than relying only on general product specifications.

10. Scan Feedback

An LED indicator, buzzer, or other feedback mechanism can tell users whether a barcode has been successfully recognised.

This is particularly useful for unattended equipment because users cannot rely on an operator to confirm whether the scan was successful.

Clear feedback can help prevent users from repeatedly presenting the same barcode and can make the self-service process easier to understand.

11. OEM and ODM Customization

For kiosk manufacturers developing proprietary equipment, standard scanner specifications may not always be sufficient.

OEM projects may require customization:

· Communication interfaces

· Trigger modes

· Firmware

· Decoding parameters

· Cables and connectors

· Mounting structures

· Scanner housings

· Scan windows

· Branding

· Application-specific functions

For high-volume kiosk projects, working with a manufacturer that can support application-specific integration can help reduce compatibility issues during product development.

How to Choose the Right Barcode Scanning Module for a Kiosk?

The right kiosk barcode scanner module depends on the intended application.

A ticketing kiosk may prioritize fast QR scanning and mobile-screen recognition. An access-control terminal may require automatic sensing and reliable scanning at different angles. A retail self-service kiosk may need broad 1D and 2D barcode compatibility, while an outdoor terminal may place greater emphasis on environmental protection.

Before selecting a scanner module, OEM manufacturers should evaluate:

Recommended Embedded Scanner for Kiosk Applications

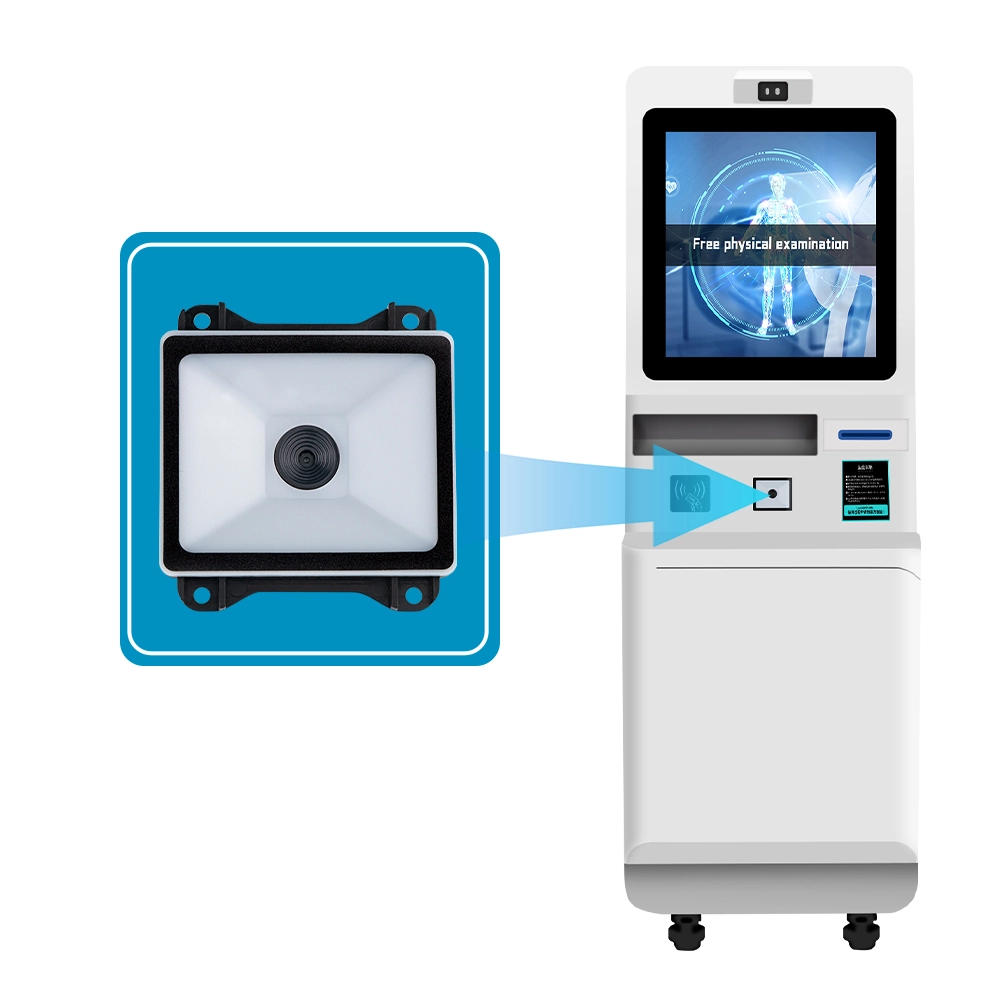

If you are looking for a compact barcode scanning module for a kiosk, the Masung MS-7710 Embedded QR and Barcode Scanner is worth considering for OEM and self-service equipment projects.

The MS-7710 combines 1D and 2D barcode recognition with a compact 64.8 × 60.5 × 21.2 mm form factor. It supports QR Code, Data Matrix, PDF417, UPC, EAN, and Code 128 and can scan electronic codes displayed on mobile phone screens. It provides an 80° diagonal viewing angle, multiple communication options including USB, USB COM, TTL, and RS232, and a 3.6–6 V operating voltage range.

The embedded scanning module is designed for embedded applications and can be used in self-service kiosks, ticketing equipment, access-control systems, turnstiles, queuing systems, medical equipment, financial terminals, and express delivery equipment.

For OEM manufacturers that need a compact QR and barcode scanning module with flexible integration options, the MS-7710 provides a practical starting point for kiosk development.
