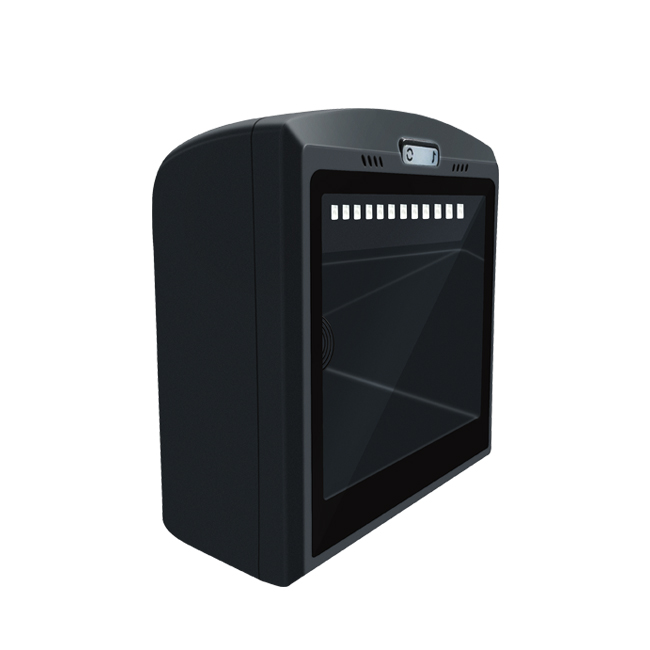

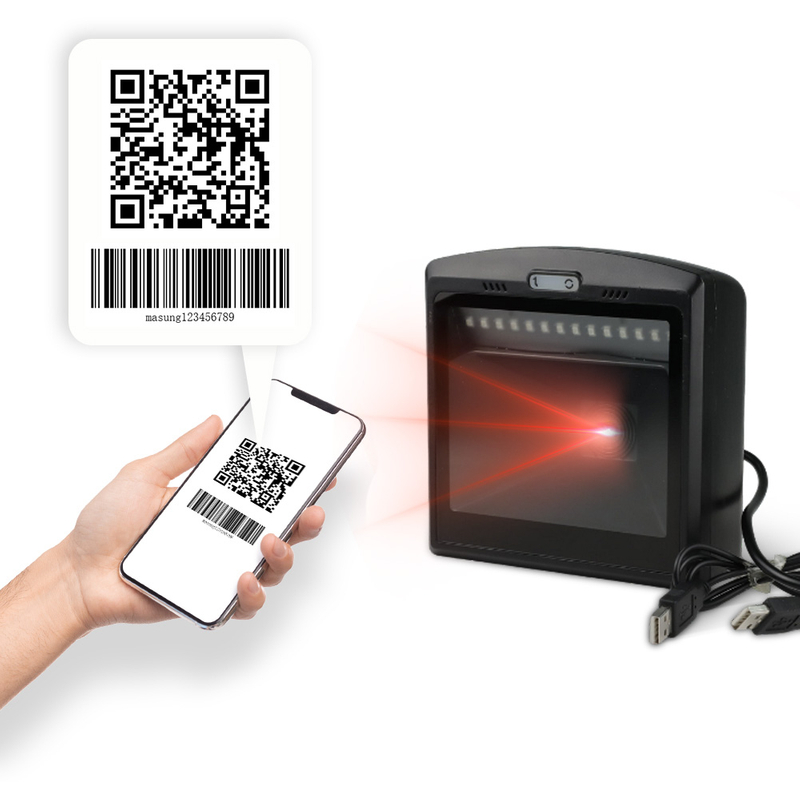

Omnidirectional 2d Barcode Scanner Scanning Platform

Availability:
Quantity:
  • MS-3200V
  • MASUNG

The body adopts plastic shell, large area glass window design, scanning adopts high-speed algorithm, decoding speed is fast.No need to use the machine.Storage function,Charging mode,Decoding technology


Product Characteristics:

* High Scanning Speed

 * 1/100 seconds rapid scanning, no need to focus

 * High Performance scanning technology

 * Wide scanning window

 * Turn angle 360°, elevation ±60°, deviation angle ±70°

 * 256K Bytes NV Logo download and printing

 * Storage function,Charging mode,Decoding technology


Data Sheet:


MS-3200V Scanner

Collection ability

Imaging Sensor

Image type, SXGA-W (width / Width1280* height / high1024) column / Ratio (5: 4)

Decoding Type

Paper, film, and dimension two-dimensional bar code; one-dimensional two-dimensional bar code of screen, mobile phone, flat panel,
etc.

System Compatibility

Linux,Android,Windows XP,7,8,10, MAC

Reading ability

Recognition Accuracy

Code39 ≥4mil

Reading Mode

Continuous reading

Scanning Depth of Field

Test condition:

Depth of field


5mil(Code39):

1cm~15cm


UPC-13mil:

1cm~33cm


20mil(code39):

1cm~40cm


20mil(QR Code):

1cm~28cm

Scan Angle Roll/Pitch/Skew

360°, ± 60°, ± 70°

Code

1D:EAN-8、EAN-13、 EAN-13 2 add-on、EAN-13 5 add-on. ISSN. ISBN. UPC-A. UPC-E. Code11.Code 32、Code 39. Code 93. Code 128. Codabar.
Industrial2 of 5. Interleaved 2 of 5. Matrix2 of 5.ISBT-128、GS1-128、 GS1 DataBar(RSS14). GS1 DataBar Limited. GS1 DataBar
Expanded.2D:PDF417、MicroPDF417、QR-code. MicroQR, Data Matrix. QR. Aztec.

Print Contrast

A minimum reflection difference of 20%

LED

Indicator

Red and blue double indicator: red(reading) blue (prompt)

Buzzer

Start prompt, reading prompt

Physical parameters

Dimension (mm)

150mm × 75mm × 155mm

Weight

655g

Material

ABS+PC

Cable Standard

180cm±3cm

Interface

USB+RS232

Environmental Parameter

Working Temperature

-20 ℃ ~ 55 ℃

Storage Temperature

-20 ℃ ~ 60 ℃

Humidity

Relative humidity 5% ~ 95% (no condensation)

Ambient Light

Max.70,000 Lux

Seismic Capacity

Can withstand 1.5 meters of free fall 3 times

Electrical parameter

Input Voltage

5V

Working Current, Power

0.33A ≤ 0.481A, power ≤ 2.405W

Dormancy Current

2mA

3200V
