In many countries across the globe, especially developed countries such as the USA, UK, Australia, and the majority of countries in Europe and the Middle East, it’s mandatory to apply safety signs in electrical distribution rooms to meet industrial regulations and safety standards: OSHA, ANSI, NFPA 70E, IEC, and ISO.

Although the safety regulation standard varies from one country to another, these below electrical safety signs are commonly used in the above countries.

1. High-voltage warning signs

Standard safety signs for high-voltage electrical distribution rooms typically measure 10" x 14" or 7” x 10”. These sizes are designed to comply with OSHA 1910.335(b)(1), which mandates warning signs at all access points for rooms containing exposed live parts.



The text to be printed on the electrical safety signs usually reads as below or has a similar meaning to warn people of the potential hazard of electrical shock or staying away from the electrical equipment.



· "DANGER HIGH VOLTAGE”

· "WARNING ELECTRICAL HAZARD”

· "RISK OF ELECTRIC SHOCK”

· "LIVE ELECTRICAL EQUIPMENT”



High-voltage electrical safety signs should be mounted in conspicuous spots where electric shock or accidents are more likely to occur. For example:

· Room entrances

· Switchgear cabinets

· Transformer rooms

· High-voltage panels

2. Prohibitive/restricted entry signs

Although not all countries mandate to put a warning sign to show only authroized personel to enter electrical distribution rooms, we all should have the awareness that electrical distribution room is dangerous to enter.

Whenever you see a sign of below words on a room door,

·  “AUTHORIZED PERSONNEL ONLY”

·  “RESTRICTED AREA”

·  “NO UNAUTHORIZED ENTRY”



Be cautious to not go in unless you’re postive of what is inside the room.

Standard "Authorized Personnel Only" signs for electrical distribution rooms typically range from 7" x 10” to 14” x 20”, with 10” x 14” being the most common and widely recognized size.

Common locations to apply electrical warning signs are:

·  Room entrances

·  Security doors

·  Control areas

3. Arc Flash Warning Labels

They are widely used across the states, along with their increasing popularity worldwide.

While there is no single mandated size for arc flash warning labels, they must be "sufficiently durable" and "clearly visible" before examination or servicing. Common industry-standard sizes for electrical distribution rooms range from 4" × 6" to 7" × 10", depending on the viewing distance required.

Common text to be printed on arc flash warning labels can be the words below or semantically similar to them.



· "WARNING ARC FLASH HAZARD”

· "APPROPRIATE PPE REQUIRED”

· "SHOCK AND ARC FLASH BOUNDARY”

to serve the purpose of warning workers of arc flash hazards or specify required personal protective equipment (PPE).



Arc flash hazard labels are usually applied on:



· MCC control panels

· Switchboards

· Electrical cabinets

· Industrial control panels



Incidentally, if you are a property or real estate company that manages a number of electrical distribution rooms, you might need this printer for arc flash warning labels.

It prints peelable safety warning or hazard signs with their sizes customizable.

4. Mandatory PPE Signs

In environments that impose a safety threat for personnel or operators, it's essential to put up PPE label signs reading:



· "EYE PROTECTION REQUIRED”

· "WEAR INSULATED GLOVES”

· "SAFETY HELMET MUST BE WORN."

· "HEARING PROTECTION REQUIRED”



By enforcing the implementation of this policy, can the hazard and risk be minimized?



There is no single mandated size for PPE signs in electrical distribution rooms. Instead, OSHA and ANSI Z535 guidelines dictate that signs must be large enough so that the text and safety symbols are clearly legible from a safe distance before you reach the hazard.

They are more often applied in the below scenes:



· Room entrances

· Maintenance areas

· Arc flash hazard zones

5. Lockout/Tagout (LOTO) Signs

Like many other safety procedures, LOTO procedures are mandatory in many countries. If you are not clear what lockout & tagout are and their uses, referring to this article might be helpful. In short, Lockout/Tagout (LOTO) signs fulfill the duty of

· Preventing unexpected equipment startup

· Isolating hazardous energy sources

· Protecting maintenance personnel

· Meeting safety regulations

Common Text to Print on Lockout/Tagout (LOTO) Signs



· “DO NOT OPERATE”

· “DO NOT ENERGIZE”

· “LOCKED OUT”

· “MAINTENANCE IN PROGRESS”



And may show:

 · The identity of the authorized employee who applied the lockout/tagout device and is responsible for the servicing or maintenance of the equipment.

· The reason for the lockout/tagout, such as repair, inspection, cleaning, or adjustment.

· The date and time of the lockout/tagout application and the expected duration of the servicing or maintenance activity.

Lockout/Tagout (LOTO) signs are usually seen on broken-down equipment or facilities that need maintenance or repair, warning people of the current status of that equipment in an electrical distribution room.

6. Fire Safety Signs

Electrical rooms must have clear fire and emergency signage, as these areas contain high-voltage equipment, electrical panels, transformers, cables, and switchgear that present significant fire and electrical hazards. Proper safety signage, similar to lockout & tagout signs, helps prevent accidents, protect personnel, and ensure compliance with workplace safety regulations.



It's essential for an electrical room to have safety and hazard signs to effectively prevent or put out a fire source.

Common text to print on fire safety signs

· “FIRE EXTINGUISHER" to show where to use the equipment in case of a fire

· “NO SMOKING," to eradicate the possibility of a fire.

· “EMERGENCY EXIT" to navigate people in the event of a fire.

· “EMERGENCY POWER OFF" to indicate that power will black out in an emergency of a fire.

Common Locations to apply the signs:

· Conspicuous spots for warning purposes

· Exit routes

· Fire extinguisher locations

· Emergency shutoff areas

It's a top choice among power utilities panel manufacturers, industrial companies, and electrical contractors to buy industrial thermal transfer printers to produce

· Arc flash labels

· Equipment nameplates

· Cable markers

· LOTO tags

· Safety warning stickers

· Reflective electrical signs

If you are on the hunt for a printer for electrical hazard signs, Masung has a few options to offer:

1. Masung MS-TTR380DAC two-color Large Format Printer Machine, Two-color Logo, All-in-one Machine features:

1. Simultaneous two-color printing in a single pass

2. Wide-format printing up to 303 mm (12 inches)

3. Automatic cutting for increased productivity

4. Fade-proof, weather-resistant thermal transfer labels

5. Supports PVC, aluminum, and specialty sign materials

6. High-visibility safety and warning sign production

7. Ideal for electrical, utility, industrial, and infrastructure applications

8. Reduces signage production costs and lead times.

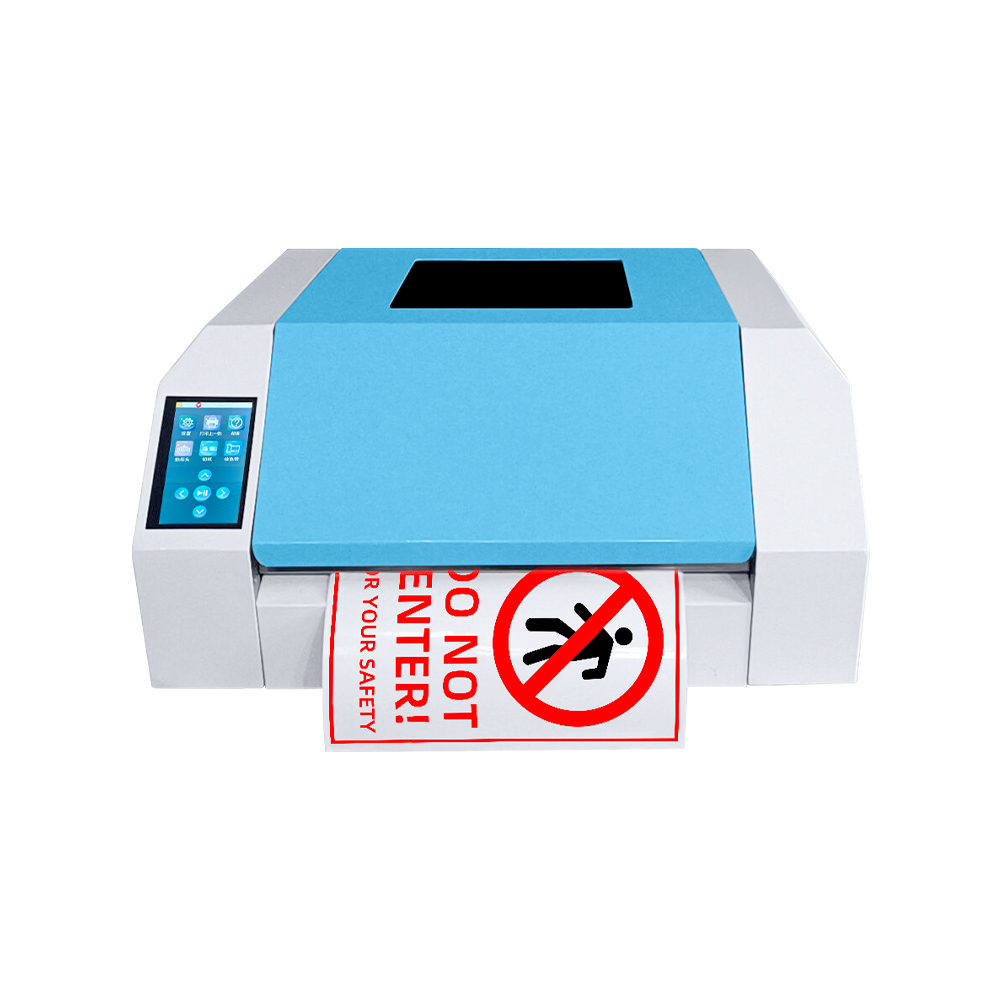

2. Masung MS-CH362, Safety Signage Printer with Auto Cutter, features:

1. Wide-format printing up to 10 inches (252 mm)

2. Handles labels from 110 mm to 320 mm

3. Automatic roll-fed feeding and integrated cutter

4. Carbon ribbon thermal transfer printing

5. Supports PVC, laminated aluminum, and perforated sheets

6. Scratch-proof, fade-resistant, and long-lasting output

7. Rugged industrial design for harsh environments

8. Optional USB and Bluetooth connectivity

3. Masung MS-TTR370 Die Cut Sticker Printer Machine with High-Precision & Auto Die-Cutting, features:

1. Print and die-cut custom stickers in one machine

2.  ±0.3 mm cutting precision for professional-quality results

3. 300 DPI high-resolution thermal transfer printing

4. Supports PVC and PET self-adhesive materials

5. Durable, waterproof, and fade-resistant labels

6. Large touchscreen for simple operation

7. USB and Bluetooth connectivity options

8. Ideal for safety signs, hazard labels, asset tags, garden labels, and industrial identification applications

9. Reduces production time, labor costs, and material waste

10. Perfect for industrial, commercial, and signage printing businesses

4. Masung MS-CH570, Thermal Transfer Label Printer for Printing Durable Signs & Markings, features:

1. Wide-format thermal transfer printing up to 10 inches (252 mm)

2. High-resolution, durable, scratch- and fade-resistant output; can print metallic signs.

3. Compatible with a wide range of materials: PET, PVC, OPP, aluminum foil, adhesive paper, non-woven fabrics, and more

4. User-friendly touchscreen interface for easy operation

5. Automatic paper feed with sensors for smooth, uninterrupted printing

6. USB connectivity for direct printing from PC or laptop

7. Supports resin, wax, and hybrid ribbons, including RFID-enabled options.
