MD-825
Masung
Reliable High-Speed Performance for Ticketing

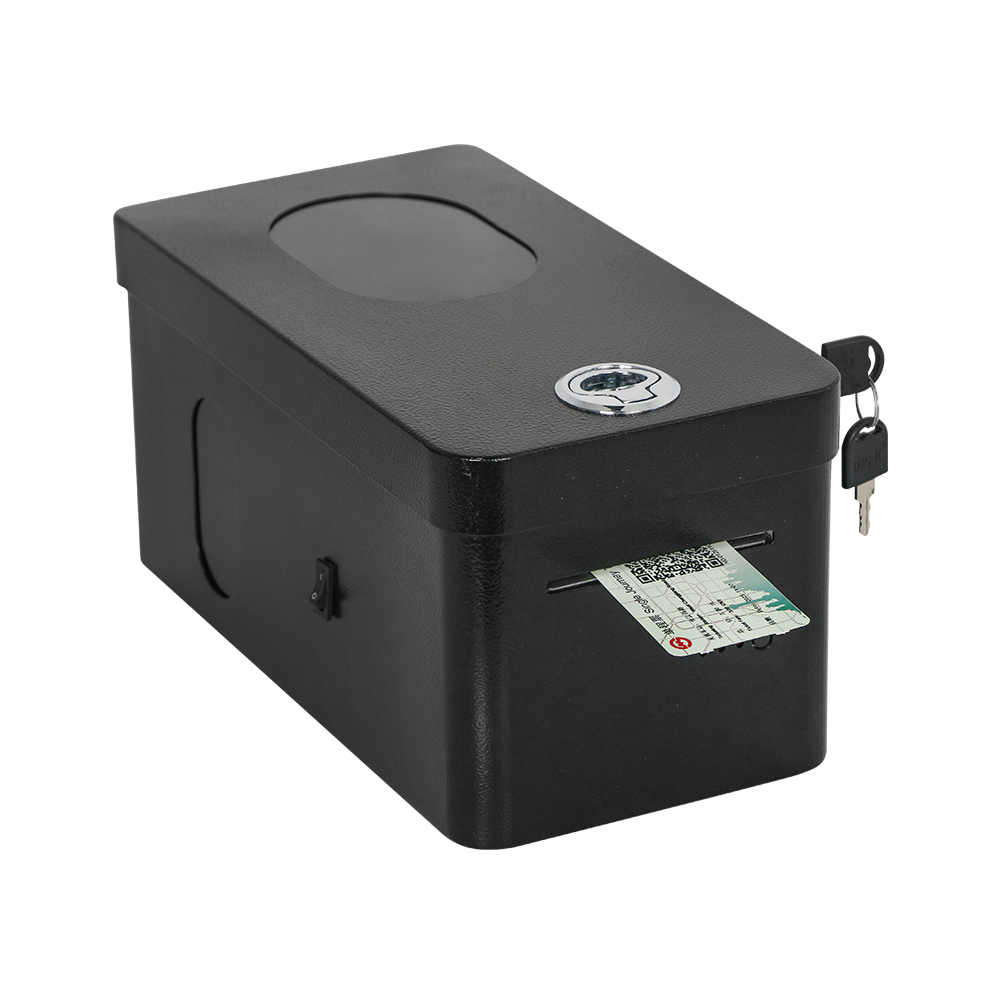

The MS-MD825 is a thermal ticket printer designed for use in environments such as rail transit and large-scale events. It supports print speeds of up to 150mm/s and features a 384-dot print head, which allows it to handle high-volume printing tasks while maintaining consistent output quality. The all-in-one design integrates the control board directly with the mechanism, reducing the overall module footprint and simplifying system integration for developers.
Handling Thick Paper Tickets
Unlike standard receipt printers, the MS-MD825 is configured as a printer for thick paper tickets, supporting paper thicknesses from 150 to 250μm. This makes it suitable for paper tickets that require added durability, including magnetic stripe rail tickets, folding ticket stock, and event passes. The module includes an automatic paper suction mechanism and a full-cut cutter rated for 1,000,000 cuts, contributing to reliable operation with rigid cardstock.
Applications in Transit and Events

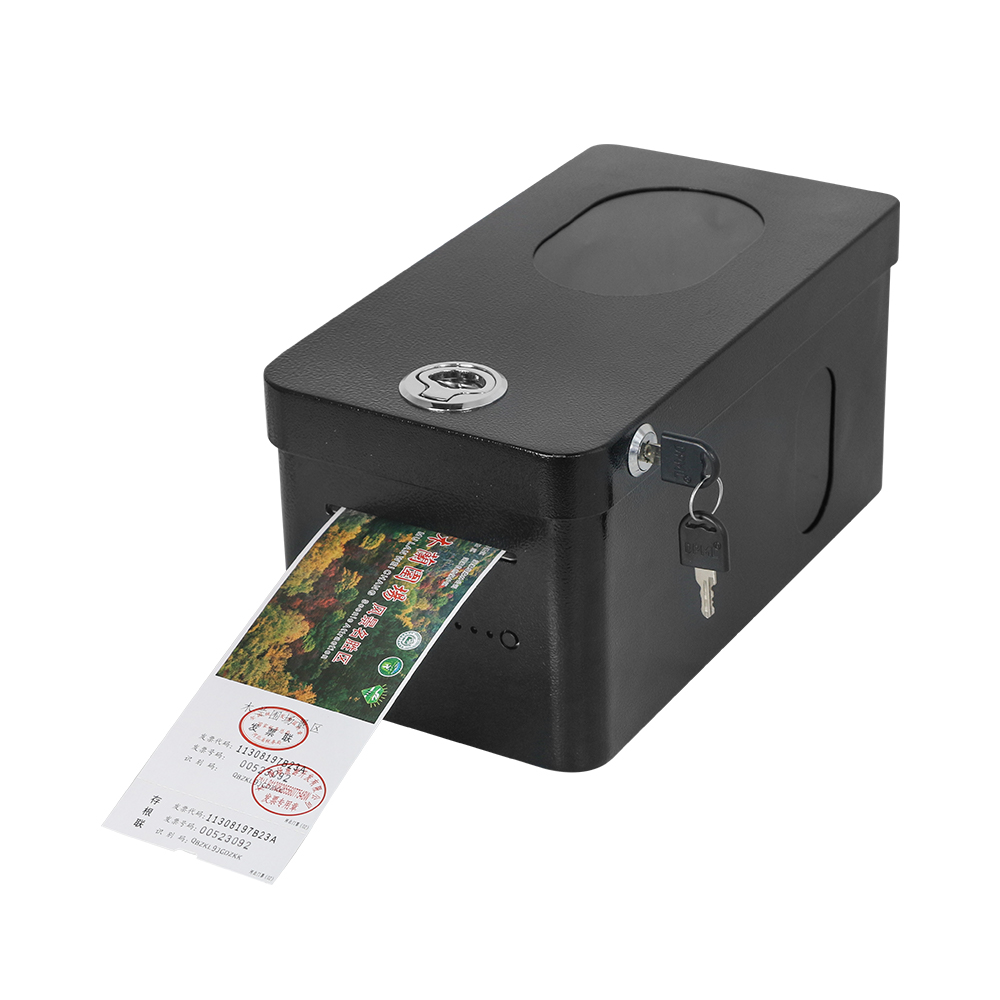

The MS-MD825 can be used as an event ticket printer for concerts and sports venues or as an admission ticket printer for museums and theme parks. It incorporates an anti-stick thermal head and a gap detection sensor to help reduce paper jams and misprints, while its low-noise operation makes it appropriate for customer-facing environments. With support for RS232 and USB interfaces and a wide operating temperature range, the module is compatible with kiosks, ticket vending machines, and automatic fare collection gates.
Specification
Category | Parameter | Specification |
|---|---|---|
Product | Model | MS-MD825 |
Printing Method | Line thermal printing | |
Paper | Width / Thickness | 54 mm / 150–250 μm |
Effective Print Width | 48 mm | |
Print Length | 100 KM | |
Performance | Dot Matrix | 384 dots |
Print Speed | 150 mm/s (MAX) | |
Print Format | Reverse, underline, italic, bold, etc. | |
Handling | Feeding / Cutting | Automatic suction (horizontal 180°) / Full cut |
Cutter Life | 1,000,000 cuts | |
Sensors | Head Temp / Lever / Paper Out / Gap | Temp sensor / Micro switch / Mechanical / Transmissive photoelectric |
Electrical | Voltage / Avg Current / Peak Current | 24±10% V / 2A @24V (37.5% dots) / 6A |

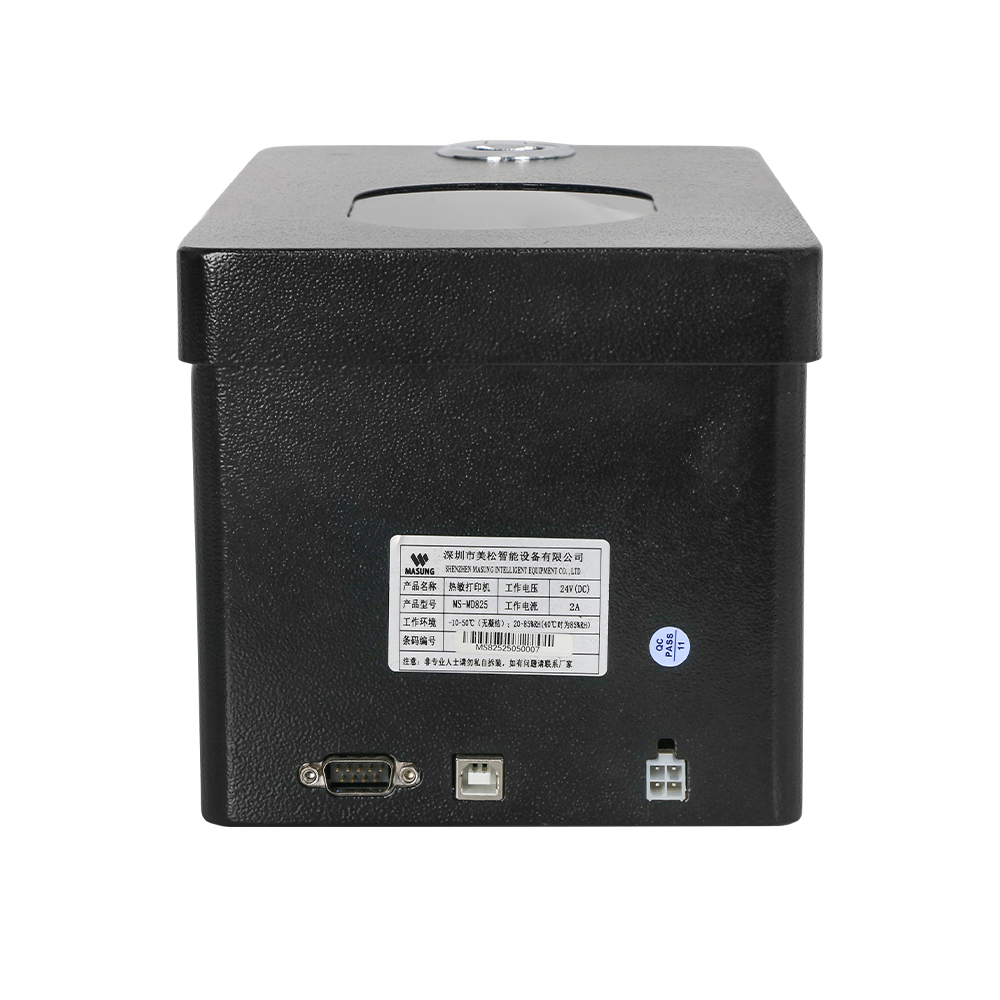

Interface | Communication / Baud Rate | RS232, USB / 9600, 19200, 38400, 115200 |
Characters | ASCII / Chinese | 9×17, 12×24 / 24×24 dots |
Environment | Operating Temp/Humidity | -10~50°C / 20%~95% RH |
Storage Temp/Humidity | -20~70°C / 10%~95% RH | |
Physical | Dimensions (L×W×H) | 298.1×160.6×148.4 ±0.5 mm |
Weight | 3.92 kg (excluding paper) |
