A Complete Guide to QR & Barcode Scanning Technology
Barcode and QR scanning technology has become essential across retail, logistics, healthcare, ticketing, manufacturing, and self-service systems. From supermarket checkout counters to mobile payment terminals, every scanner barcode reader plays a critical role in fast and accurate data capture.
What is a Barcode Scanner?
A barcode scanner, also called a barcode reader or scanning gun, is a device that reads encoded information from one-dimensional (1D) barcodes and two-dimensional (2D) codes such as QR codes. Modern devices can instantly decode printed labels, screen-based codes, and even damaged symbols, then transmit the data to a POS system, kiosk, computer, or mobile terminal through wired or wireless connections.
In this guide, we’ll explain:
· How does the barcode scanner work?
· What types of barcode scanners are there?
· What are the technical support technologies behind barcode scanners?
· How to determine barcode scanner resolution
How Does a Barcode Scanner Work?
A barcode scanner works by combining optics, sensors, decoding software, and signal processing hardware.
The main components usually include:
· Light source
· Optical lens
· Scanning module
· Analog-to-digital conversion circuit
· Decoding chip
· Protective housing
The process starts when the light source illuminates the barcode or QR image. The reflected light is collected through the optical lens and sent to the scanning sensor. The sensor converts the optical signal into an electrical signal, which is then digitised by the analog-to-digital converter.
The decoding engine analyses contrast differences between dark and light areas, converts them into binary data, and outputs readable text, numbers, URLs, or commands.
For a QR code reader, the process is even more advanced because the scanner must recognise finder patterns, alignment markers, error correction zones, and image rotation. This allows modern systems to scan damaged or partially obscured codes with high reliability.
Today’s advanced qr code bar scanner devices can also decode codes from:
· Mobile phone screens
· Curved surfaces
· Reflective packaging
· Low-contrast labels
· High-density industrial symbols
This is why barcode scanning technology is widely used in fast-paced environments where speed and precision are essential.

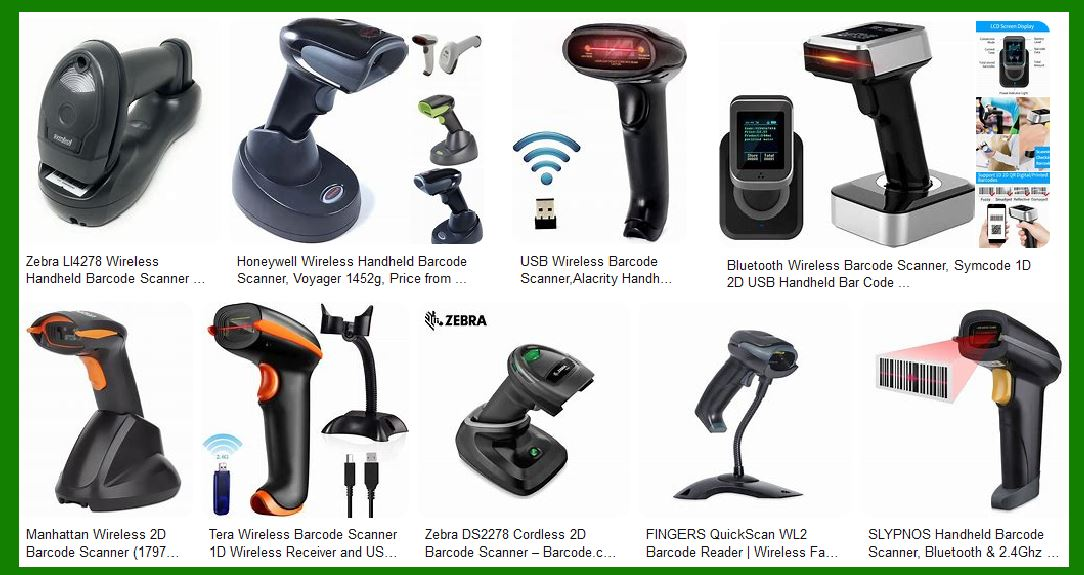

What Types of Barcode Scanners Are There?
Barcode scanners can generally be divided into 1D scanners and 2D QR code scanners.
For modern business applications, 2D scanning has become the dominant choice because it supports QR codes, Data Matrix, PDF417, and mobile payment codes.
1) Embedded QR Code Scanner
Embedded scanners are integrated directly into kiosks, ticketing gates, vending machines, lockers, and access control systems.
Typical applications include the following:
· Subway ticket gates
· High-speed rail terminals
· Smart lockers
· Self-service kiosks
· Attendance systems
· Identity verification terminals
An embedded QR code scanner is ideal for OEM and smart device integration because it offers compact size, fast decoding, and stable fixed-position performance.
2) Fixed Mount Barcode Scanner
A fixed or desktop scanner is installed in a stationary position and automatically reads codes presented in front of it.
These are commonly used for:
· POS checkout counters
· Self-checkout systems
· Hospital registration desks
· Ticket validation terminals
· Electronic coupon redemption
Membership systems
A desktop scanner barcode reader can easily read both paper labels and mobile phone screen QR codes, making it highly versatile.
3) Handheld Barcode Scanner
A handheld barcode scanner is one of the most widely used scanning devices in warehouses, retail stores, and logistics centers.
It offers excellent flexibility because users can move the scanner freely to scan labels from different angles and distances.
Common uses include:
· Warehouse picking
· Express logistics
· Inventory management
· Retail checkout
· Manufacturing traceability
· Library systems
A modern handheld scanner can support both wired USB and wireless Bluetooth communication, improving productivity for mobile workstations.
What Are the Technical Support Technologies of Barcode Scanners?
Modern barcode scanners mainly rely on four core technologies:
1) Light Pen Technology
The light pen was one of the earliest contact-based barcode-reading solutions. It is economical and simple, but less common today.
The operator moves the pen tip directly across the barcode surface. Reflected light differences generate voltage changes, which are then decoded.
2) CCD Technology
CCD scanners use LED illumination and photoelectric sensors to capture barcode images.
Advantages include:
· Fast short-range reading
· Stable close-up scanning
· Lower cost
· Good performance for retail labels
CCD remains common in entry-level handheld barcode scanner products.
3) Laser Scanning Technology
Laser barcode scanners provide excellent long-distance reading and high-speed line scanning.
They are widely used in:
· Retail checkout
· Warehouse shelves
· Industrial production
· Logistics sorting
A laser-based scanner barcode reader is especially effective for reading 1D codes from longer distances.
4) Image-Based Red Light Technology
Image-based red light scanners are becoming the mainstream for 2D scanning.
They outperform traditional laser systems because they can decode the following:
· QR codes
· Screen codes
· Damaged labels
· Inverted colour codes
· Wrinkled labels
· Low-quality prints
This makes them the preferred choice for any QR code reader used in e-commerce, ticketing, and smart retail.
How to Determine the Resolution of a Barcode Scanner
Barcode scanner resolution is determined by optical performance, hardware processing, and software algorithms.
Optical Resolution
This refers to how many actual light points the optical sensor can capture per inch.
Higher optical resolution improves performance when reading:
· Small barcodes
· High-density QR codes
· Fine printed labels
· Tiny PCB labels
· Medical specimen codes
Hardware Resolution
The hardware decoding board, processor, and image sensor all influence final scan precision.
A better processor improves:
· Motion tolerance
· Low-light decoding
· Damaged code recovery
· Screen scanning performance
Software Resolution
Modern decoding software uses intelligent algorithms to enhance image quality and reconstruct incomplete data.
This is especially important for a QR code bar scanner working in:
· Mobile payment terminals
· Smart lockers
· Ticketing kiosks
· Self-service vending systems
The higher the configured resolution, the more detailed the captured image—but file size, processing load, and hardware requirements also increase.
Why 2D QR Barcode Scanners Have a Strong Future
As digital transformation accelerates, QR codes now connect the physical and digital worlds more effectively than ever.
They are used in:
· Mobile payments
· Electronic tickets
· Product traceability
· Smart manufacturing
· Warehouse automation
· Medical systems
· Visitor management
· Smart transportation
Because businesses demand faster, smarter, and more connected data capture, the future of the handheld scanner and embedded QR scanning industry remains highly promising.
Founded in 2006, Shenzhen Masung Intelligent Equipment Co., Ltd. focuses on intelligent scanning and printing innovation, delivering reliable OEM and custom barcode scanning solutions for global B2B clients.
If your business needs a dependable handheld barcode scanner, embedded QR code scanner, or fixed QR code reader, Masung can provide cost-effective and customizable solutions for retail, kiosk, industrial, and smart terminal applications.
Conclusion
Understanding what types of barcode scanners are there helps businesses choose the right solution for their application.
Whether you need:
· A compact embedded QR module
· A high-speed handheld barcode scanner
· A versatile qr code reader
· A robust handheld scanner for warehouse use
The best choice depends on your environment, code type, scanning distance, and integration requirements.
For modern B2B operations, 2D image-based scanning technology is quickly becoming the industry standard.
