MASUNG independently developed 80mm automatic paper cutting industrial design micro printer MS-FPT302
MS-FPT302 adopts line thermal print head, which is an 80mm automatic paper cutting industrial design printer independently developed by MASUNG; High-speed thermal printing, low noise, strong reliability, and large paper thickness; MS-FPT302 positioning holes can be installed on the side, front and rear sides, which is convenient and quick to install and maintain; Easy paper loading, sliding automatic paper cutting and other functions; The paper will be adjusted manually as much as possible, and the most accurate paper will be detected (accurate number of sheets); Opening method: 1. Wrench opening 2. Electronic opening 3. Computer command opening; A variety of sensors assist in control, and it has a paper jam detection function; Unattended inline thermal printer; Self-service terminal printing equipment for medical, government, retail, catering and other industries

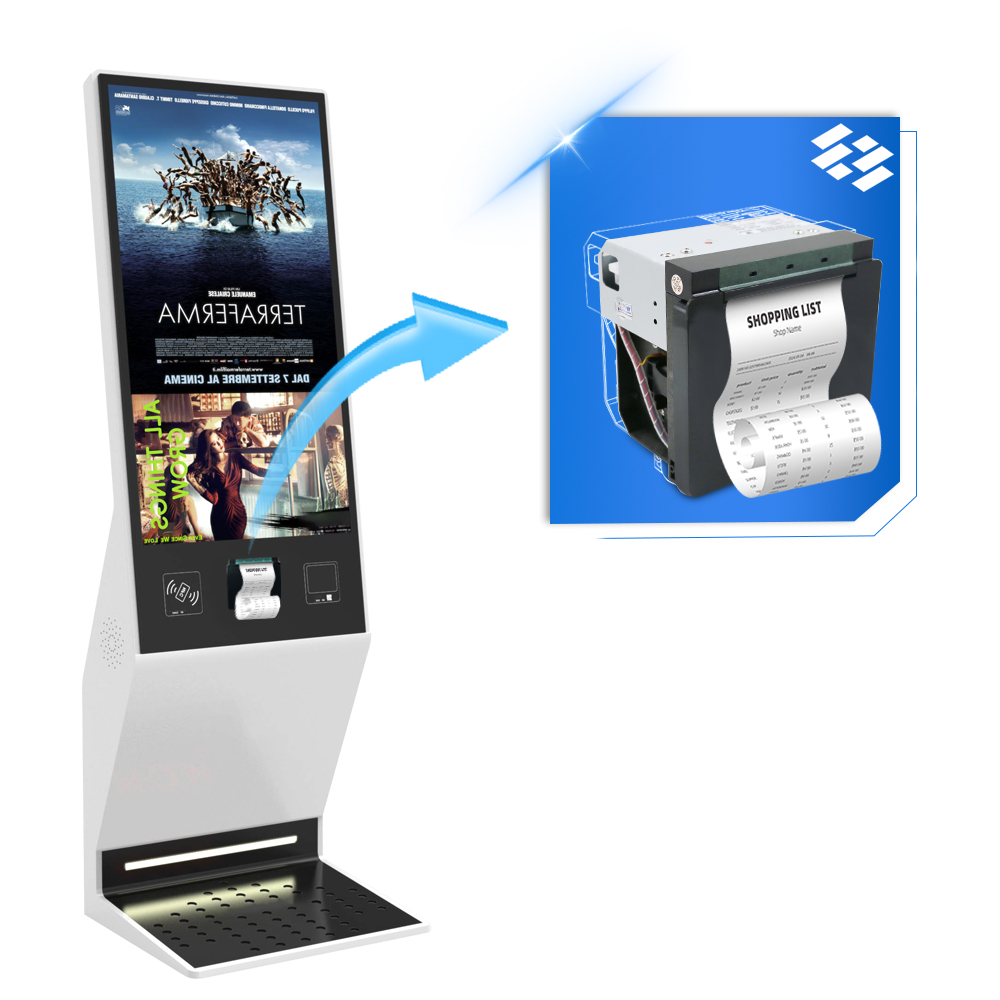

Micro printer introduction: Model MS-FPT302 micro printer is an 80mm embedded micro printer. Unlike POS printers, which can be carried around, the embedded micro printer only needs a simple installation to realize the printing module, which is the same as the 58mm micro printer. It can be embedded in different terminal devices, such as gas stations, catering cash registers, queuing payment machines, etc. Micro thermal printers are self-service terminal printing devices for medical, government, retail, catering and other industries.
Thermal printer driver self-service printer solution thermal printing solution retail printer thermal printing core
thermal printer unit self-service gate printer self-service terminal printer medicine vending machine printer embedded printer
human electronic scale printer government affairs hall reservation machine bank queuing machine unattended embedded thermal
| Model | MS-FPT302 |
| Paper Width | 80mm/58mm |
| Speed | 250 mm/s(max) |
| Print Points | 576dots/line |
| Print Width | 72mm(max) |
| Paper Cutting Condition | Full/partial |
| Operating Voltage | DC24 ± 10% V |
| Average Current | 24V/2A (Effective print points25%) |
| Weight | About 0.90kg (without paper roll) |
| Interface | Serial /USB |
| Dimension(W*D*H) | W127mm * D127mm * H100mm |
