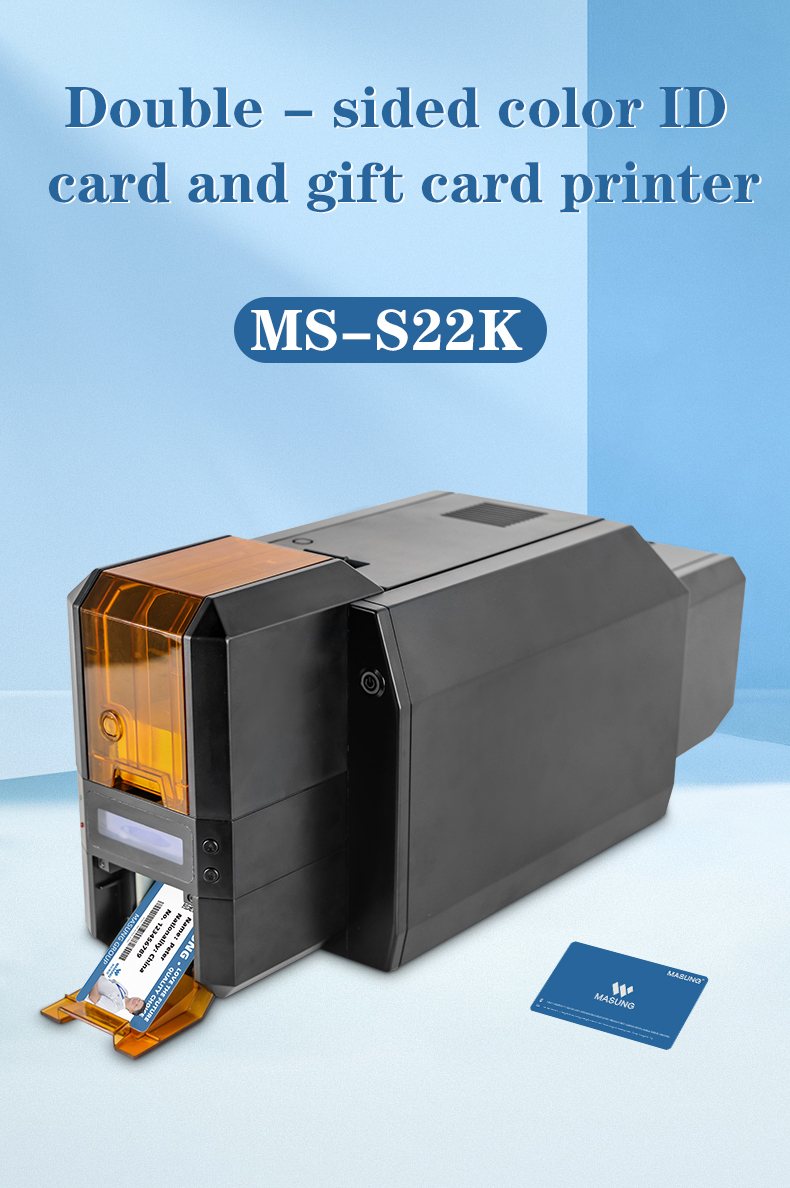

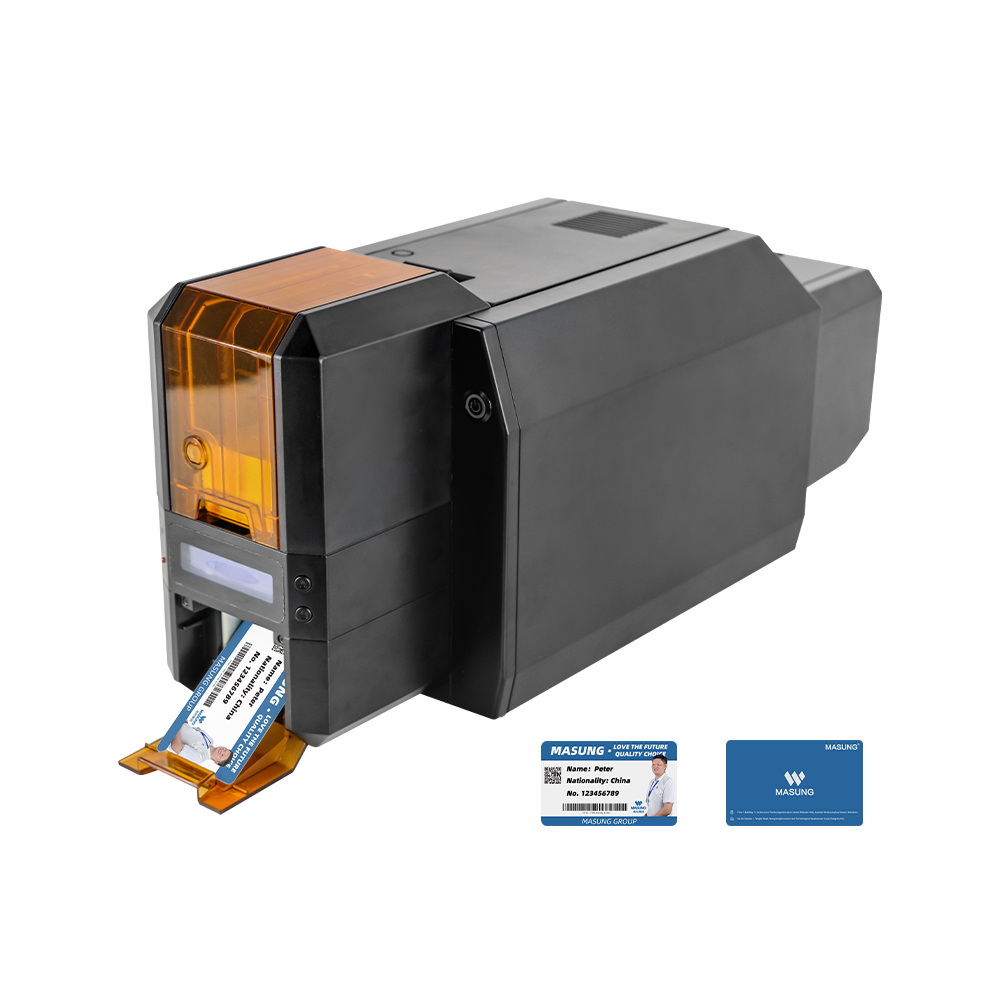

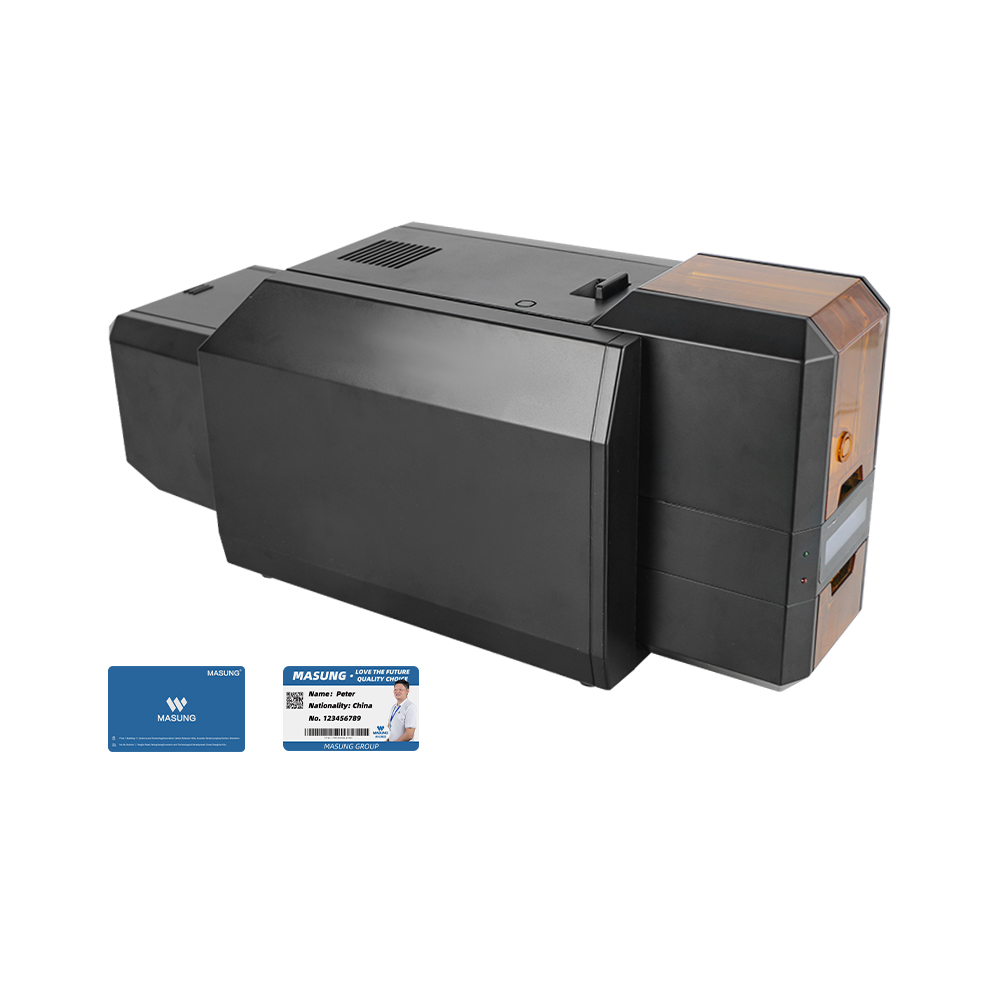

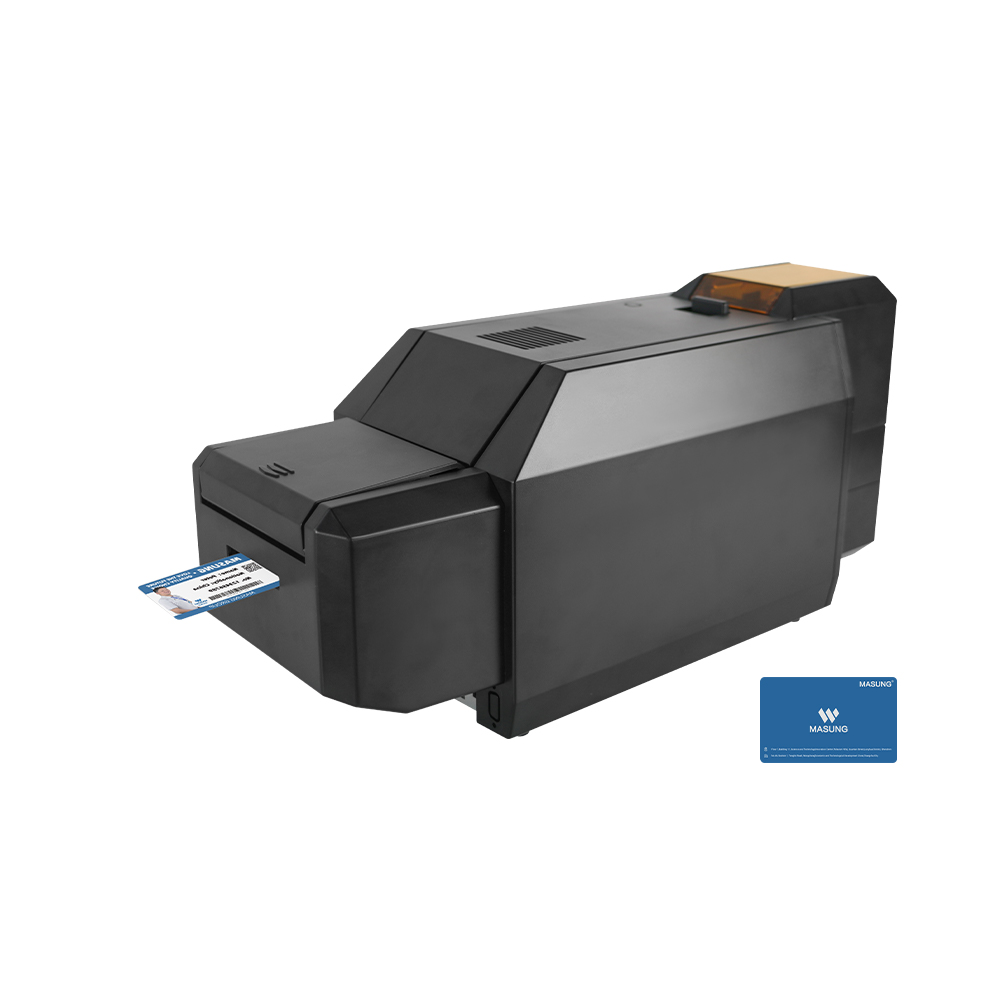

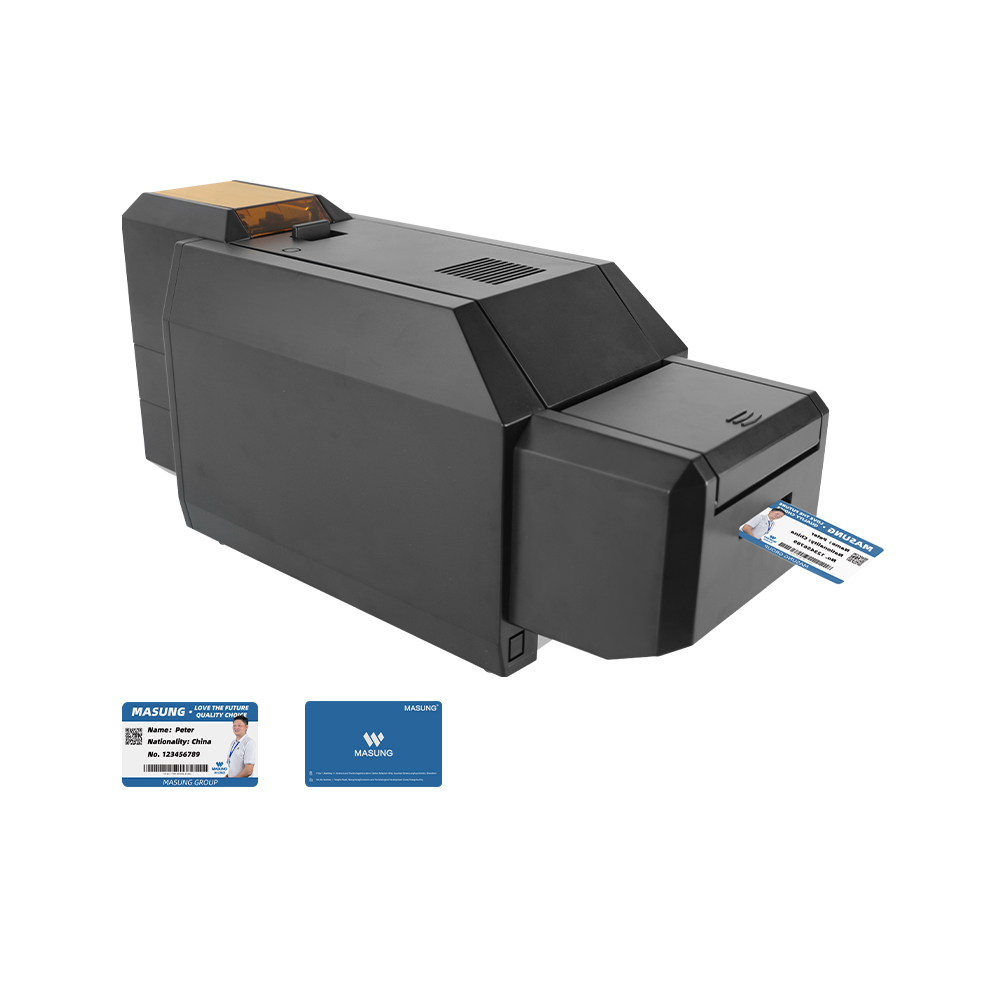

MS-S22K
MASUNG
This badge card printer adopts high-resolution transfer dye-sublimation color printing technology, ensuring vibrant and durable output.
It features a standard 600 dpi × 600 dpi high-resolution dual-sided printing capability for sharp, professional results.
With superior image quality and crisp text reproduction, the plastic badge printer delivers professional-level printing effects.
The system perfectly achieves full-edge (over-edge) printing, covering the entire card without borders.
Equipped with a high-speed printing engine, the employee badge printer maximizes efficiency without compromising quality.
The all-metal movement ensures durability and stable, uninterrupted card printing.

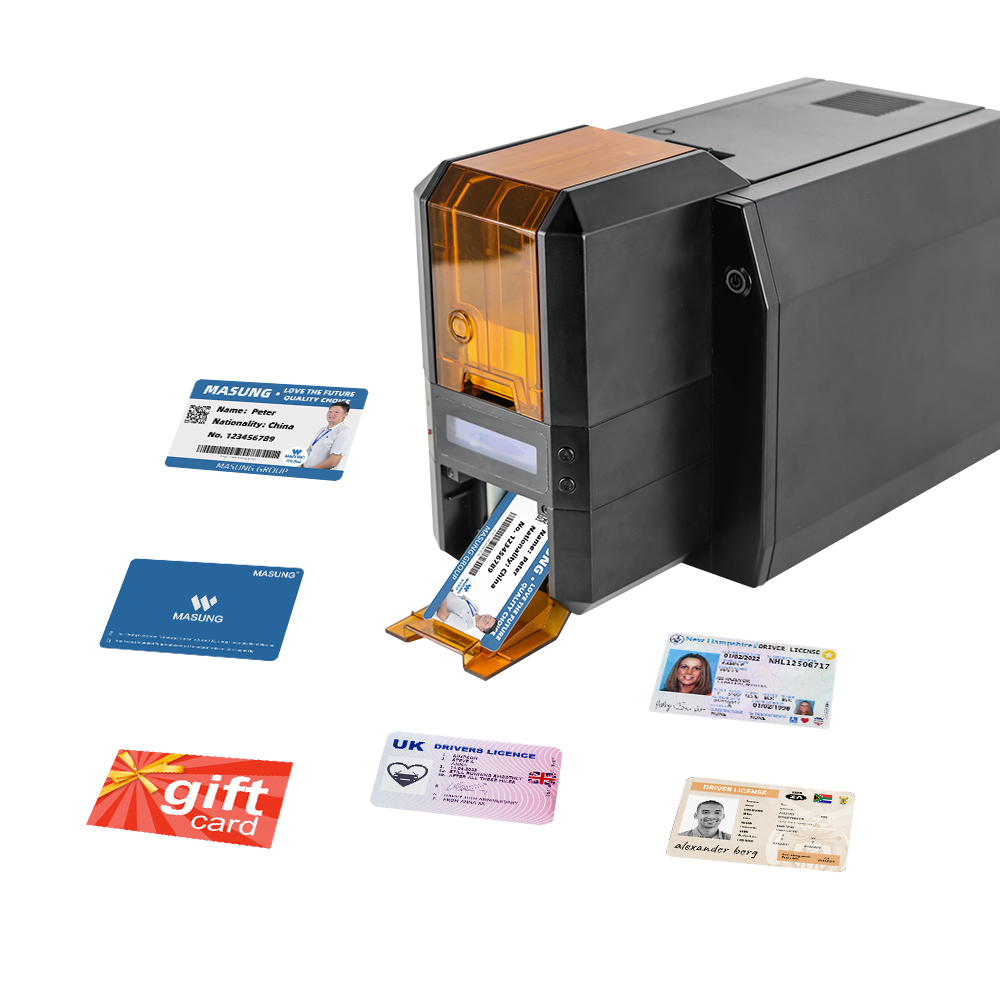

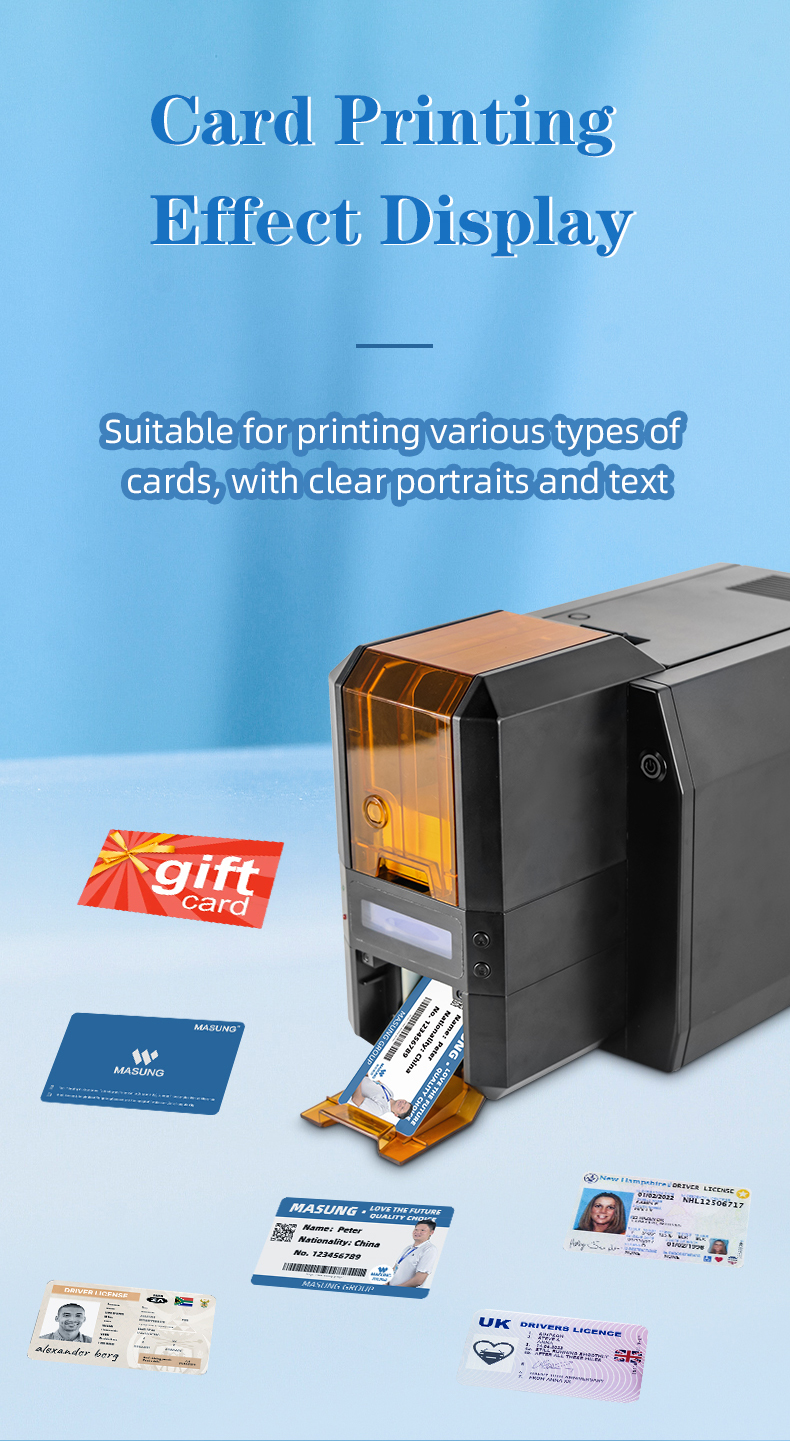

It supports a wide range of materials, including PVC, composite PVC, ABS, PET, and PC, for versatile, high-quality card production.
A standard bend correction module prevents warping, ensuring consistently flat and precise prints.
The intuitive 3.5-inch color touchscreen simplifies operation, making the printer more user-friendly and efficient.
Model: | MS-S22K |
Specifications | 376 × 160 × 207 (mm), 6.8Kg |

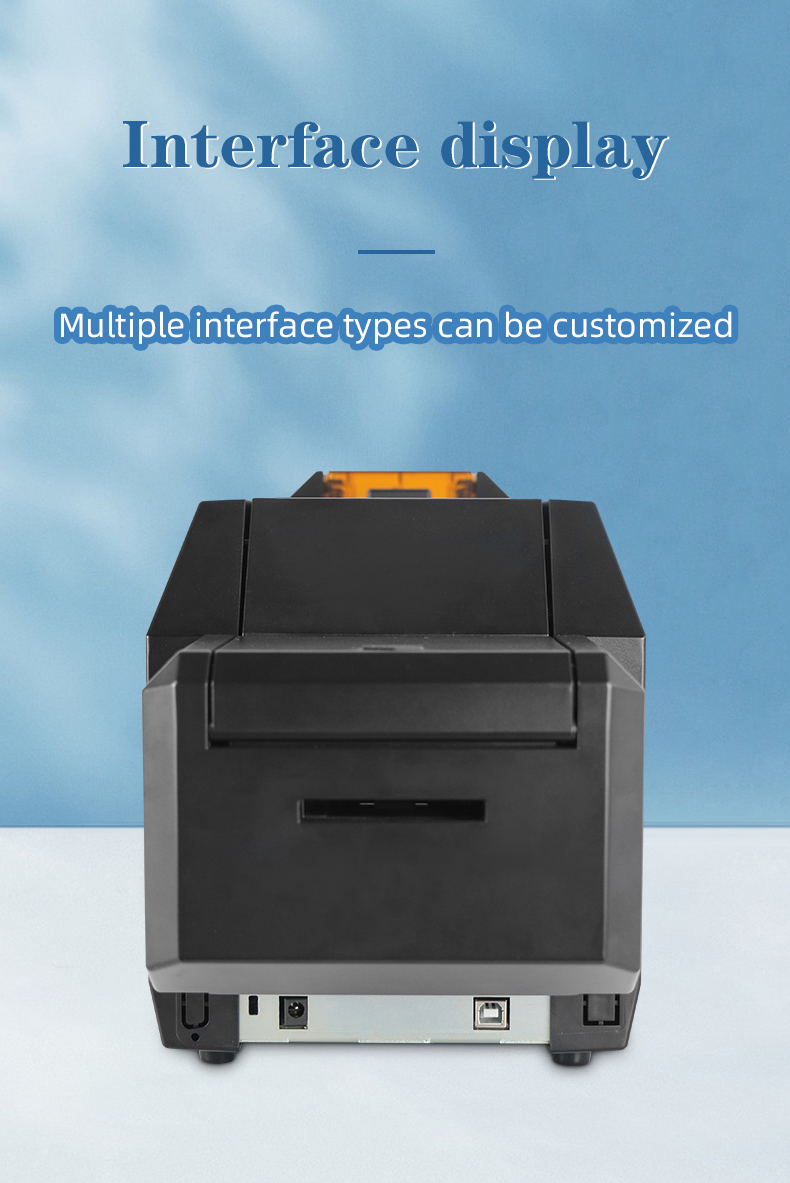

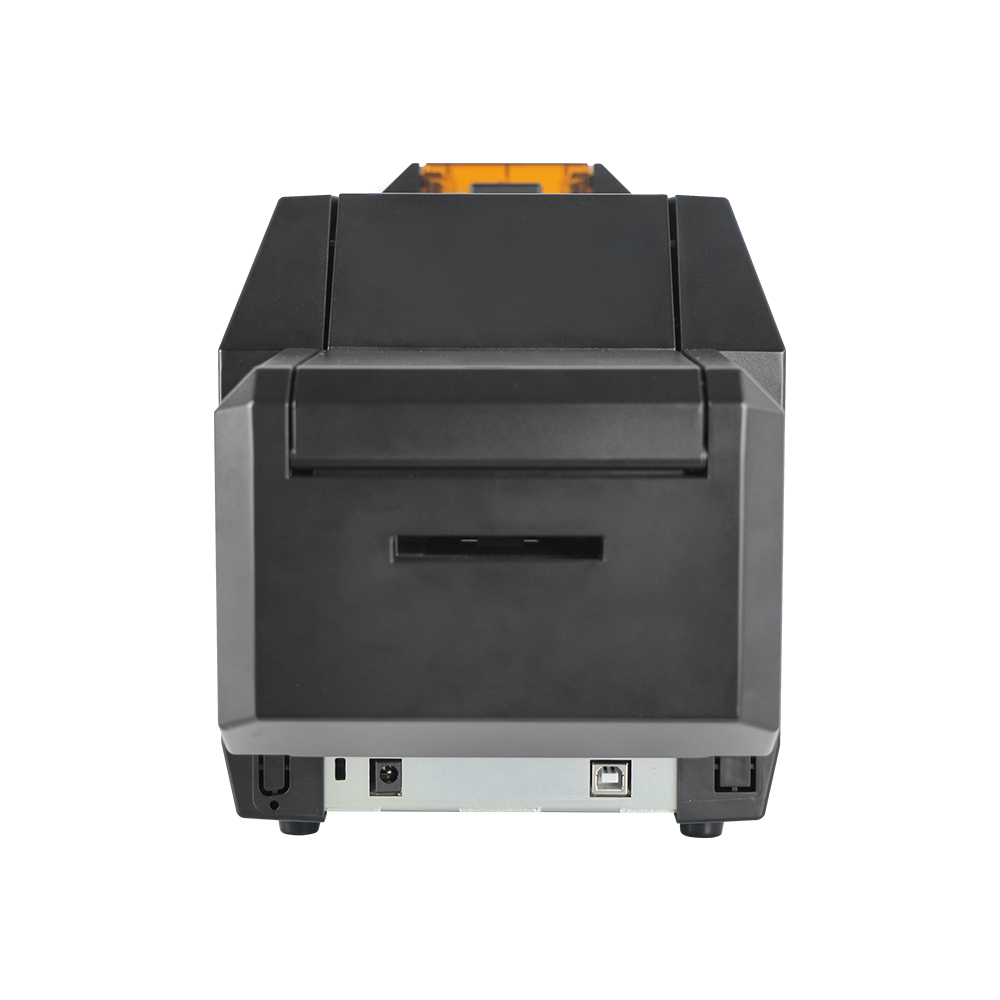

Interfaces | USB & Ethernet & RS232 |

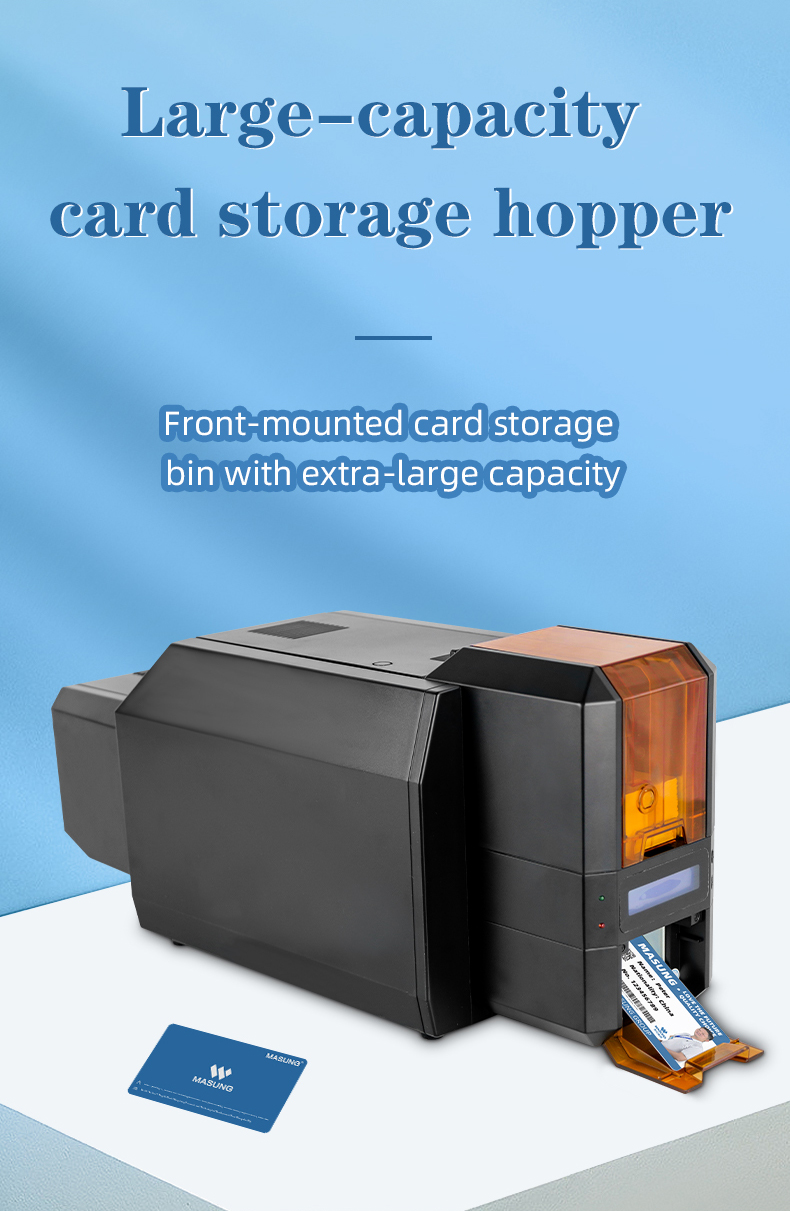

Input Capacity | 100 cards(Standard 100 pcs/High capacity input hopper 400 pcs/ Locking card input hopper 200 pcs) |
Print Speed | Monochrome printing: 3~5 s per card(single-sided) / 7~12 s per card(dual-sided); Full-color(YMCKO) printing: 20 s per card(single-sided) / 42 s per card(dual-sided). |
Card Material | PVC / Composite PVC / Other material upon request and validation |
Power | 100-240V, 50-60Hz |
Print Dimension | ISO CR80 (53.98mm×85.60mm), edge-to-edge printing |
Print Resolution | 300dpi × 300dpi(300 dpi × 600 dpi, 300 dpi × 1200 dpi print resolution optional) |
Memory | 128MB |
Print Method | Dye sublimation (Direct-to-card) |
Card Thickness | 0.3-1.05mm |
LCM Display | Chinese: 8 characters per line, 2 lines / English: 16 characters per line, 4 lines / Multi-language |
Operation System | Driver: support Windows XP/7/8/10 , Windows Server 2003/2008/2012/2016, Linux, Android Card design software: ICARDE, support Windows® XP/7/8/10 (32 or 64 bit) |
Warranty | 1-year (artificial damage excluded) |
Operating Condition | 1. Regular running temp.: 15℃-30℃(59-86℉), 20%~65% RH non-condensing 2. Lowest / Highest running temp.: 0℃(32℉) / 40℃(104℉), 20%~65% RH non-condensing |
Storage Condition | Temp.: -5℃-70℃(23-158℉), 20%~70% RH non-condensing |
Certificates | CCC, FCC, CE, ROHS, BIS |
