Ultra-High-Speed Performance & Advanced Cutting

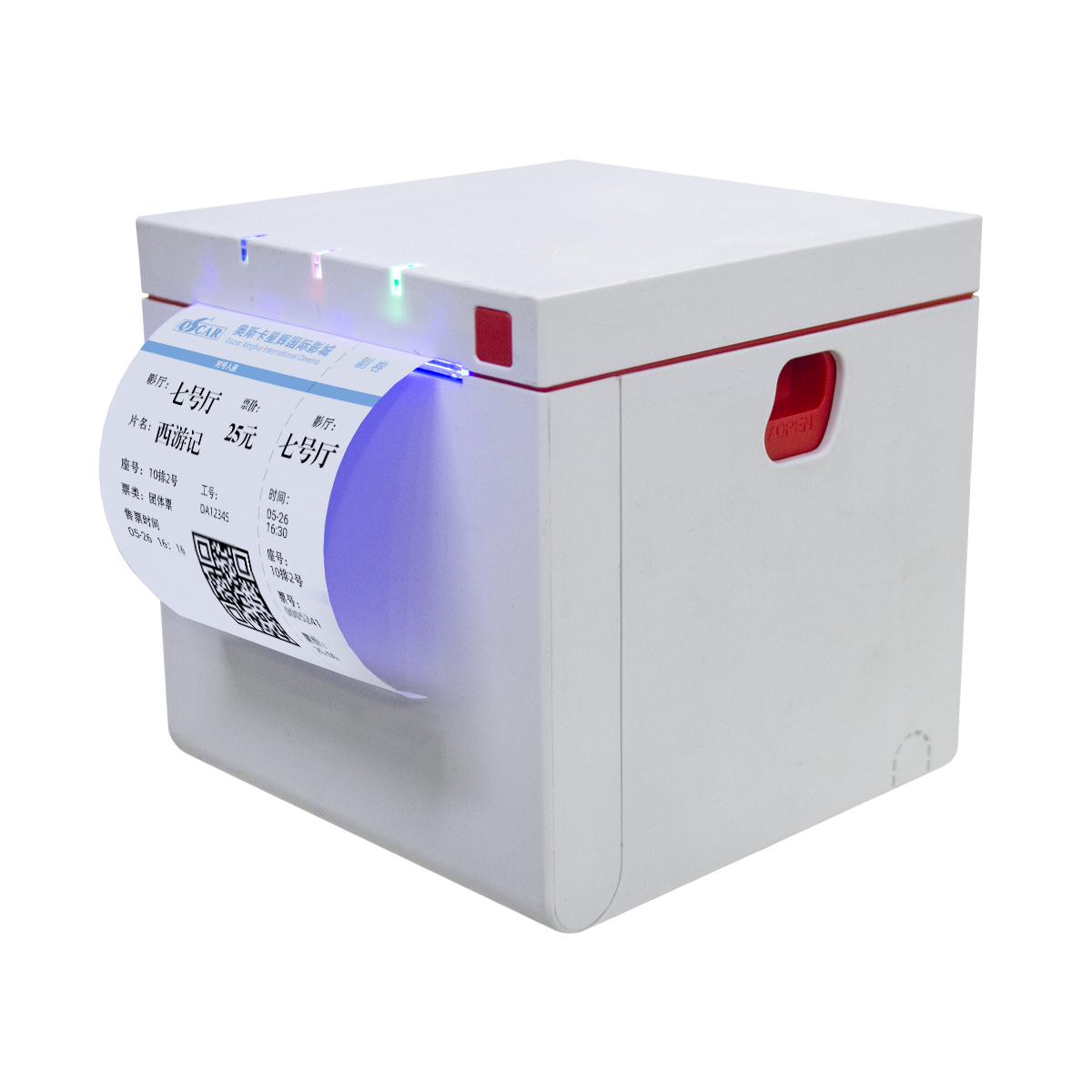

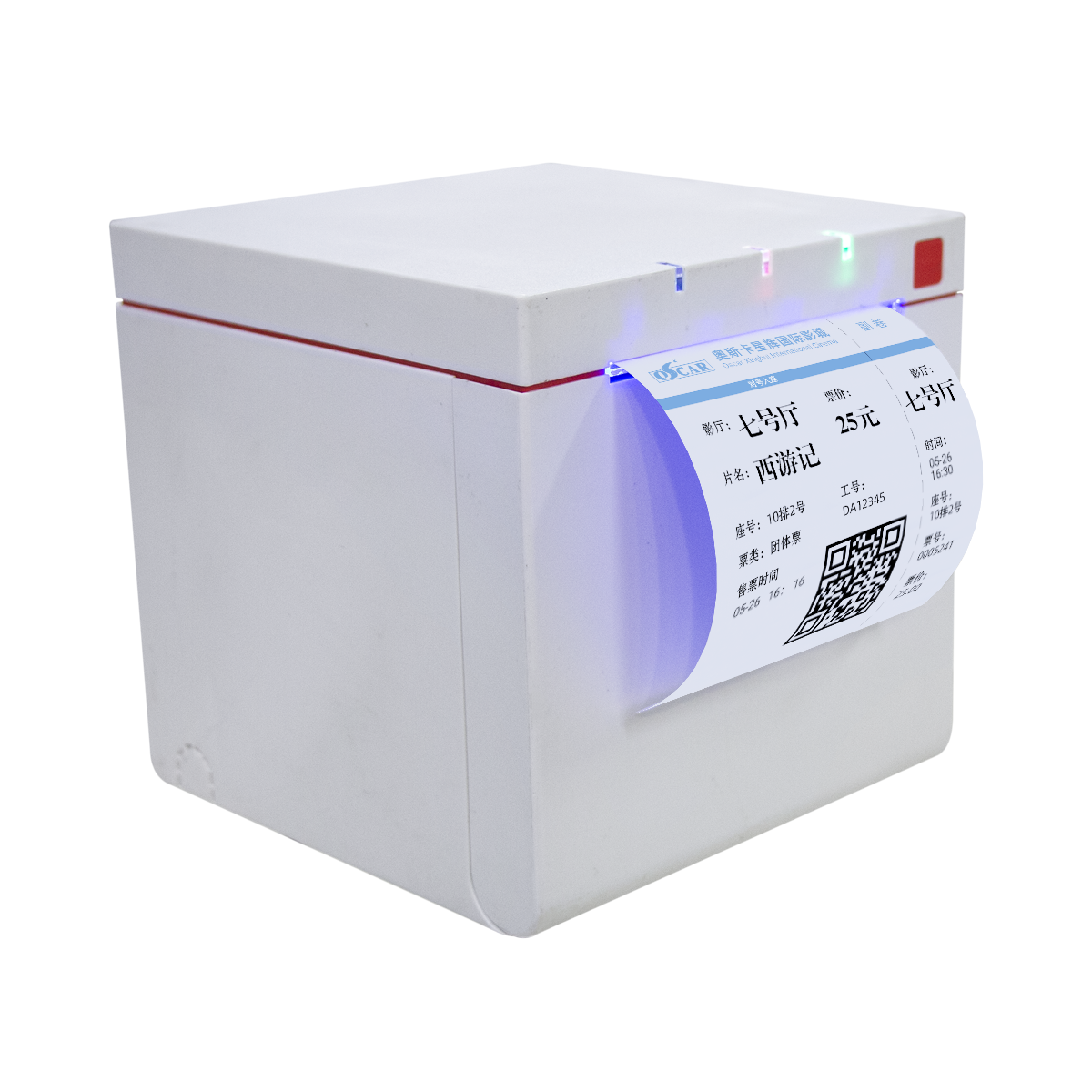

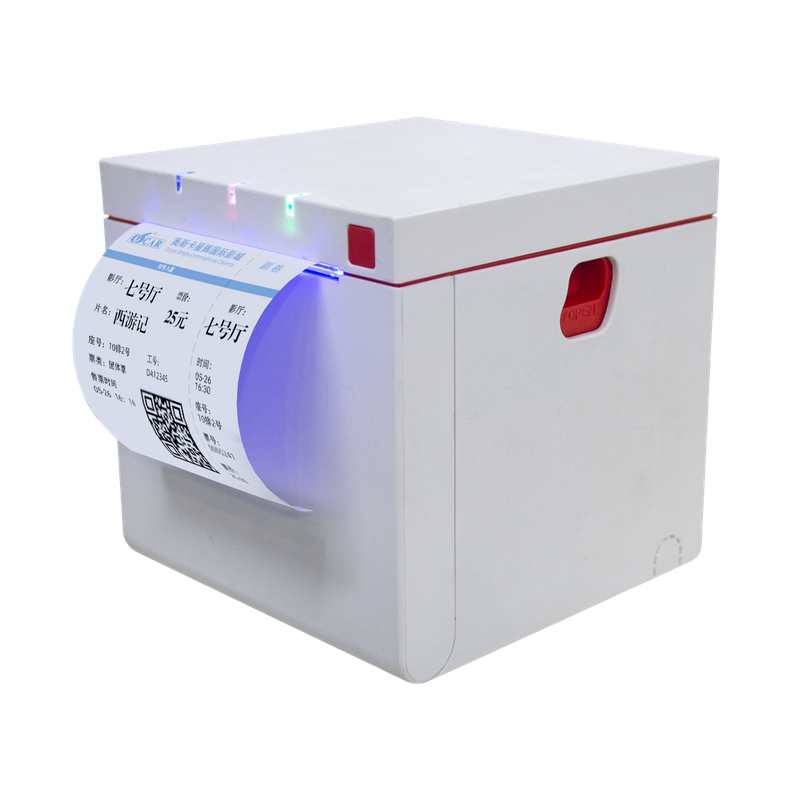

Built for speed and reliability, the MS-MD80I delivers exceptional line thermal printing at a remarkable 250 mm/s. It features a durable sliding cutter with both partial and full cut options, boasting a cutter life of 1,000,000 cuts. This ensures smooth, rapid transaction processing, allowing businesses to maintain high throughput without sacrificing print quality or causing customer delays.
Versatile Connectivity & Multi-System Compatibility
This mobile Bluetooth thermal printer is equipped with multiple standard interfaces, including Serial (RS232), USB, Parallel, Ethernet, and an optional Bluetooth module. It provides flexible solutions by seamlessly integrating with Android, Windows, Linux, and various POS systems, making it an ideal choice for diverse technological ecosystems in retail, hospitality, and self-service applications.
Compact, Versatile Design & Easy Maintenance
With an elegant, rounded integrated design and a streamlined shape, the MS-MD80I fits seamlessly into any environment, whether placed on a countertop or mounted on a wall. Its compact dimensions (132.6 × 135 × 133 mm) and lightweight body (1.05 kg) are complemented by an all-in-one mechanism and easy paper loading, ensuring quick roll changes and minimal operator intervention.
Durable Build & Intelligent Sensor Technology
Engineered for longevity, the printer handles paper rolls up to 80mm in diameter and offers an impressive mechanical life of 100 km. It is equipped with advanced sensors, including an end-of-paper reflective photoelectric sensor and print head thermal resistors, ensuring consistent operation. The MS-MD80I supports a wide array of barcodes, QR codes, and multiple international languages for global versatility.
Applicable Scenes & Customization
The Masung MS-MD80I is perfectly suited for dynamic and fast-paced environments such as retail supermarkets, e-commerce operations, theaters, hospitality venues, and property management offices. Its flexibility makes it an excellent choice for self-service kiosks and mobile point-of-sale setups where space is at a premium.
Furthermore, as a dedicated OEM/ODM manufacturer, Masung offers extensive customization availabilities for this model. This includes tailoring hardware interfaces (such as adding or modifying Bluetooth and WiFi capabilities), firmware adjustments, custom branding, and specific mechanical modifications to perfectly align with your unique business requirements and system integrations.
Specifications:
| Model | MS-MD80I |
|---|
| Printing |
|
| Method | Line thermal printing |
| Paper Width | 80mm |
| Paper Feed Speed | 250 mm/s (max) |
| Dot Density | 8 dots/mm |
| Dots per Line | 576 dots/line |
| Print Width | 72mm (max) |
| Paper Loading | Easy paper loading |
| Print Length | 100 km |
| Cutter |
|
| Cutting Method | Sliding cutter |
| Cutting Type | Partial cut, full cut |
| Paper Thickness | 60–120 μm |
| Cutter Life | 1,000,000 cuts |
| End-of-Paper Sensor | Reflective photoelectric sensor |
| Print Head Temperature | Thermal resistor |
| Operating Voltage | DC 24 ± 10% V |
| Average Current | 24V / 2A (at 25% printing density) |
| Peak Current | 6.5A |
| Environment |
|
| Operating Temperature | -10~50°C (no condensation) |
| Operating Humidity | 20%–85% RH (85% RH at 40°C) |
| Storage Temperature | -20~60°C (no condensation) |
| Storage Humidity | 10%–90% RH (90% RH at 50°C) |
| Physical |
|
| Weight | 1.05 kg (without paper roll) |
| Interfaces | Serial (RS232), USB, Parallel, Ethernet, Cash Drawer |
| Mechanical Life | 100 km |
| Maximum Paper Roll Diameter | 80 mm |
| Dimensions (W × D × H) | 132.6 mm × 135 mm × 133 mm |
