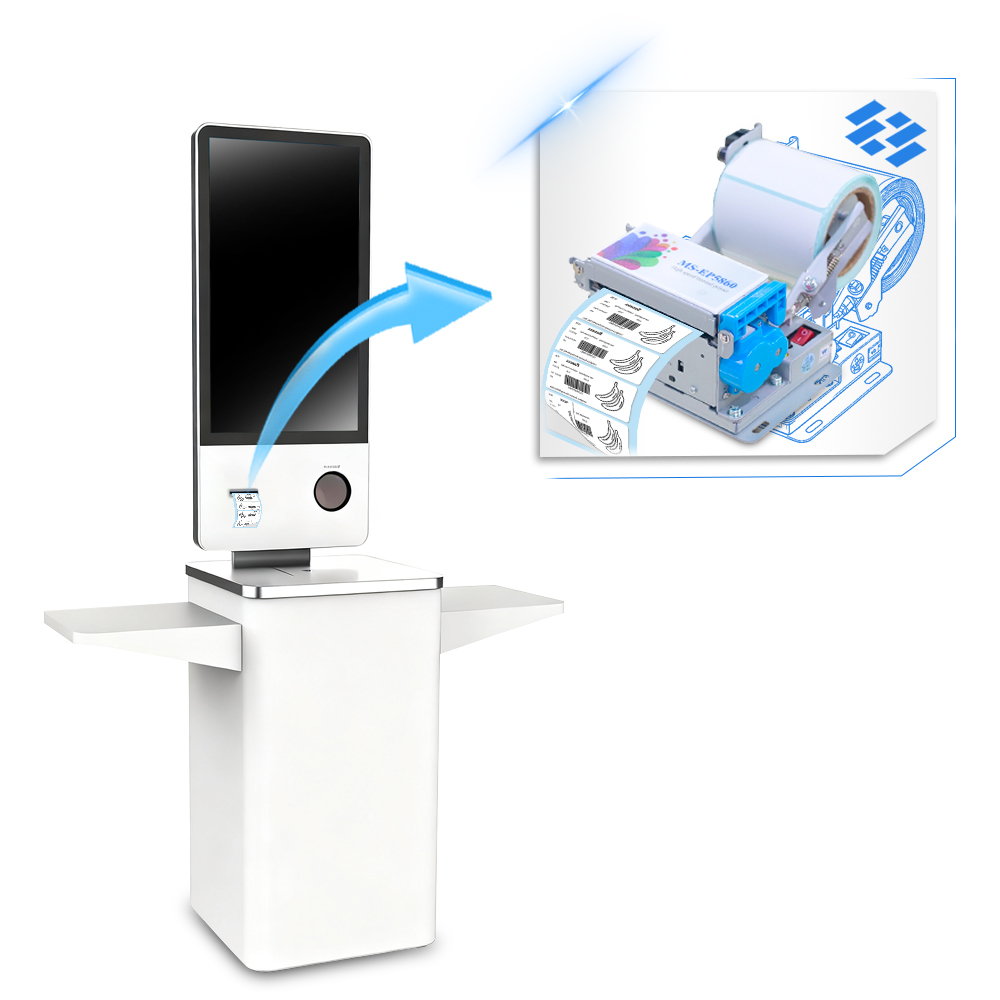

Masung MS-EP5860-BC, Embedded Mini Thermal Receipt Printer with Auto Whole/Half Cutter

Utilizing the ROHM line thermal printhead, the MS-EP5860-BC high-speed thermal printer module boasts the advantages of low noise, strong reliability, high print quality, wide paper cutting thickness, and a stylish design. It also features a dedicated plastic paper outlet, making installation and maintenance quick and easy.

This all-in-one embedded thermal printer module is popular for being used as vending machine printer with USB interface integrates the control board and the engine into a single unit, significantly saving space and greatly facilitating development and design. The mini thermal receipt printer is designed to be embedded into numerous devices and equipment, especially for the public service.
Availability:
Quantity:
Inquire Add to Basket

  • MS-EP5860-BC

  • MASUNG

More advantages of the MS-EP5860-BC custom vending printer:

1. Accepts paper rolls up to 80mm in diameter.

2. Compact size yet powerful.

3. Easy to maintain paper jams.

4. Features a gap sensor for detecting gaps between paper strips, suitable for printing with self-adhesive thermal paper.

5. Adjustable paper hopper support.

6. Side-flip design for reliable print quality.

7. Highly integrated, with customizable bracket configurations for easy integration into various terminal devices.

8. Supports printing on self-adhesive, black label, and thermal paper.

9. Patented anti-blocking and anti-drag technology.

10. Large gear-operated paper feed ensures secure and fast paper feeding.


MODEL MS-EP5860-B
printing method Thermal dot line printing
lattice 432dots
printing speed 200mm/s（max）
Print width 54mm (max)
Paper width 60mm(max)
Paper cutting method Full cut/half cut
Average current 2A@24V
Communication Interface RS232、USB
Dimensions 95.3mm×47mm×52.4mm
Paper roll capacity: Ø80 mm (max)
Paper feed: Automatic paper suction (horizontal 180°)
Paper cutting: Full/half cut
Paper feed: Print life: 100 km
Print format: Highlight, underline, italic, bold, etc.
Cutter life: 1 million times
Print baud rate: 9600, 19200, 38400, 57600, 115200
Operating voltage: 24 ± 5% V / 2A
Peak current: 5.5A
Paper type: Thermal paper roll
Recommended paper types: TF50KS-E (65 μm), PD 160R (75 μm), P350 (62 μm), Hansol Thermo 65 (65 μm)
Operating temperature: -10 to 50°C (non-condensing)
Operating humidity: 20% to 85% RH (80% RH at 40°C)
Weight: 0.45 kg (excluding paper roll, paper outlet, and bracket)
