Masung MS-2104, Barcode Scanner Lens Board with Custom Solutions
Key features of this barcode scanner lens board:
Leading decoding technology-Self-developed core technology, fast response, rapid development and customized requirements.
Wide-angle lens-With a relatively large Angle, it scans a closer and closer depth of field than traditional scanning heads Close to users' usage habits.

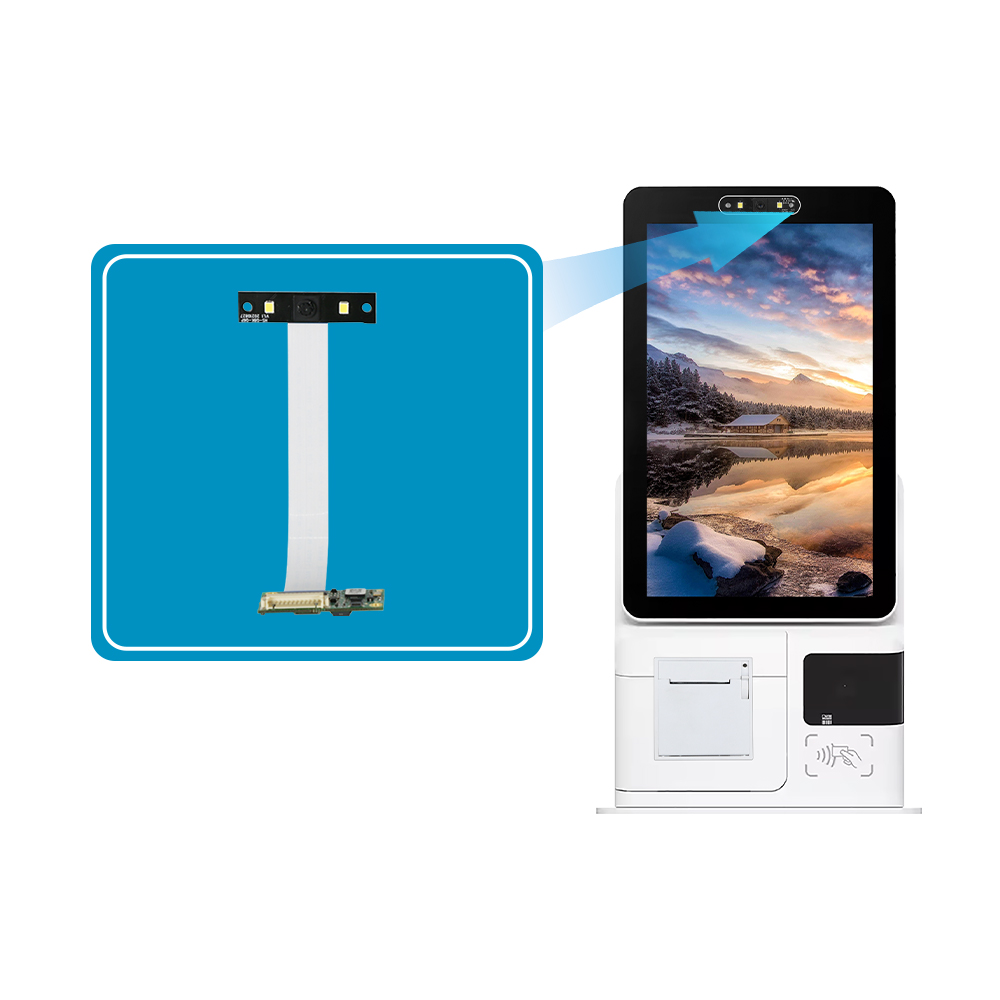

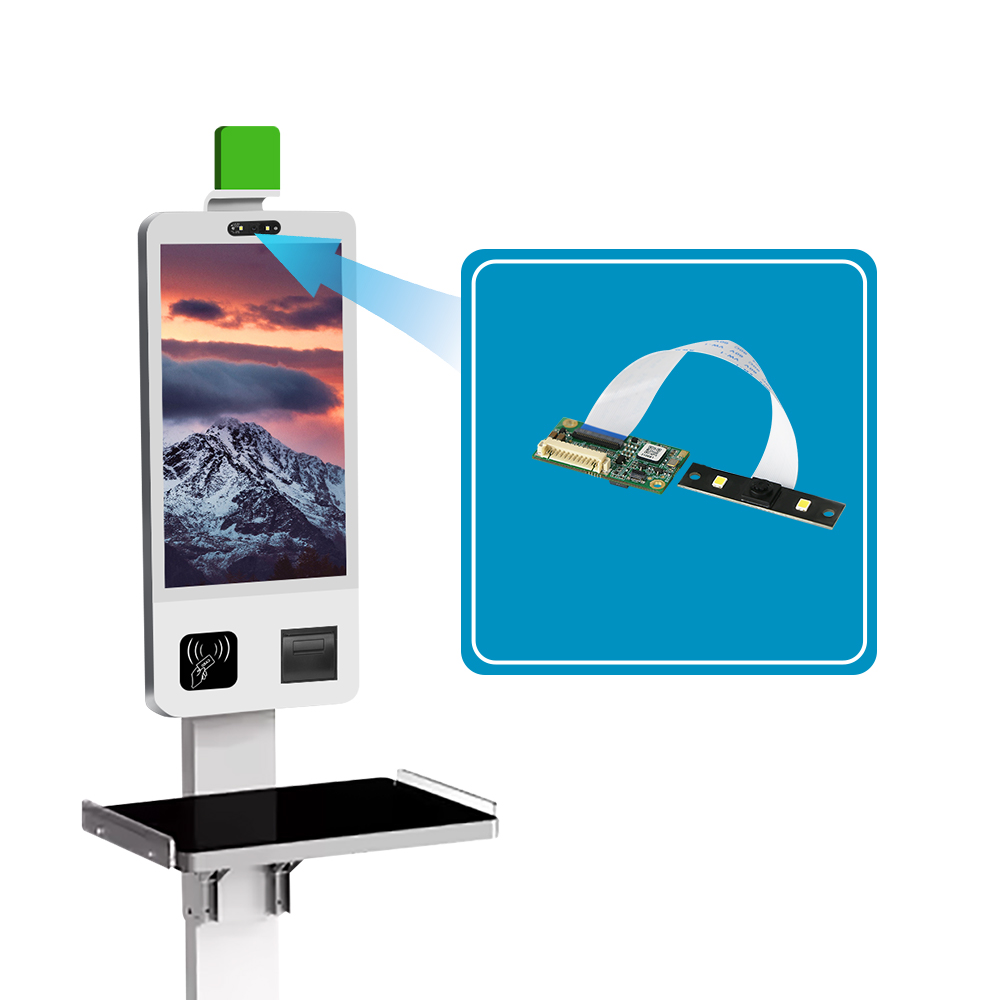

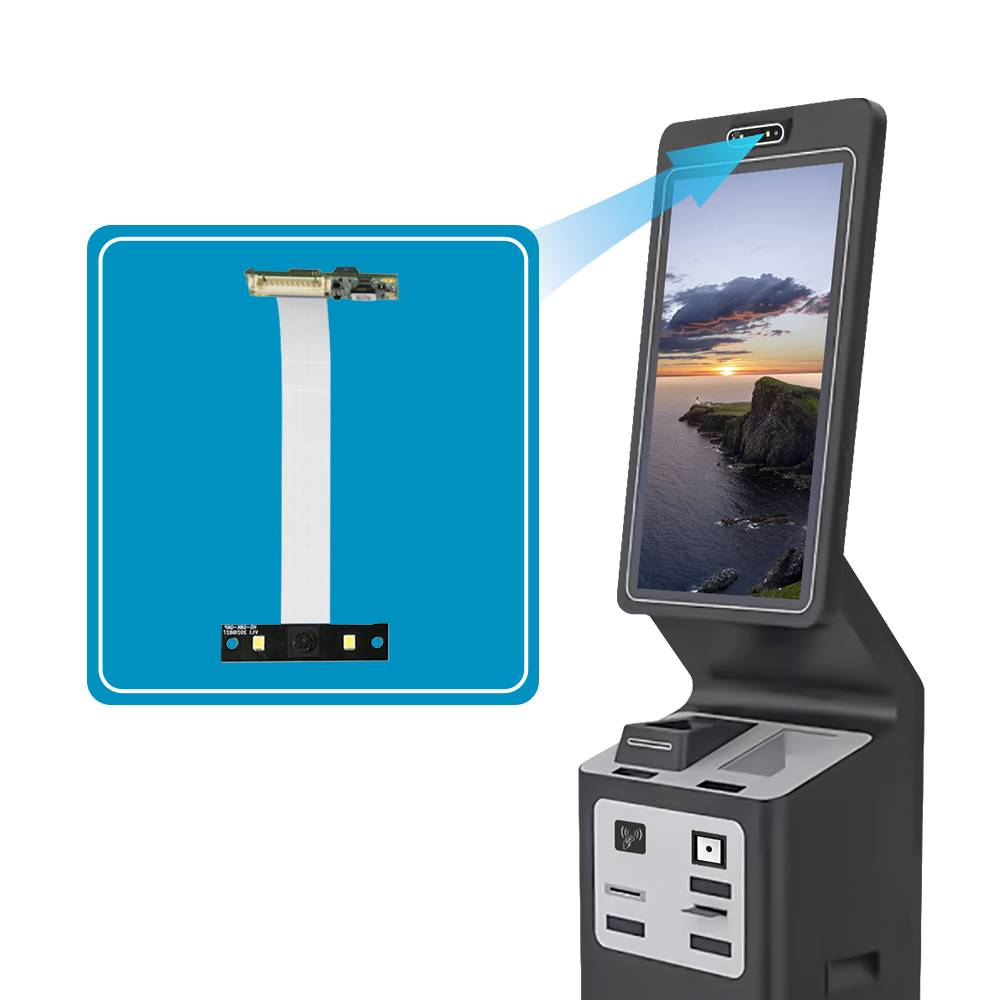

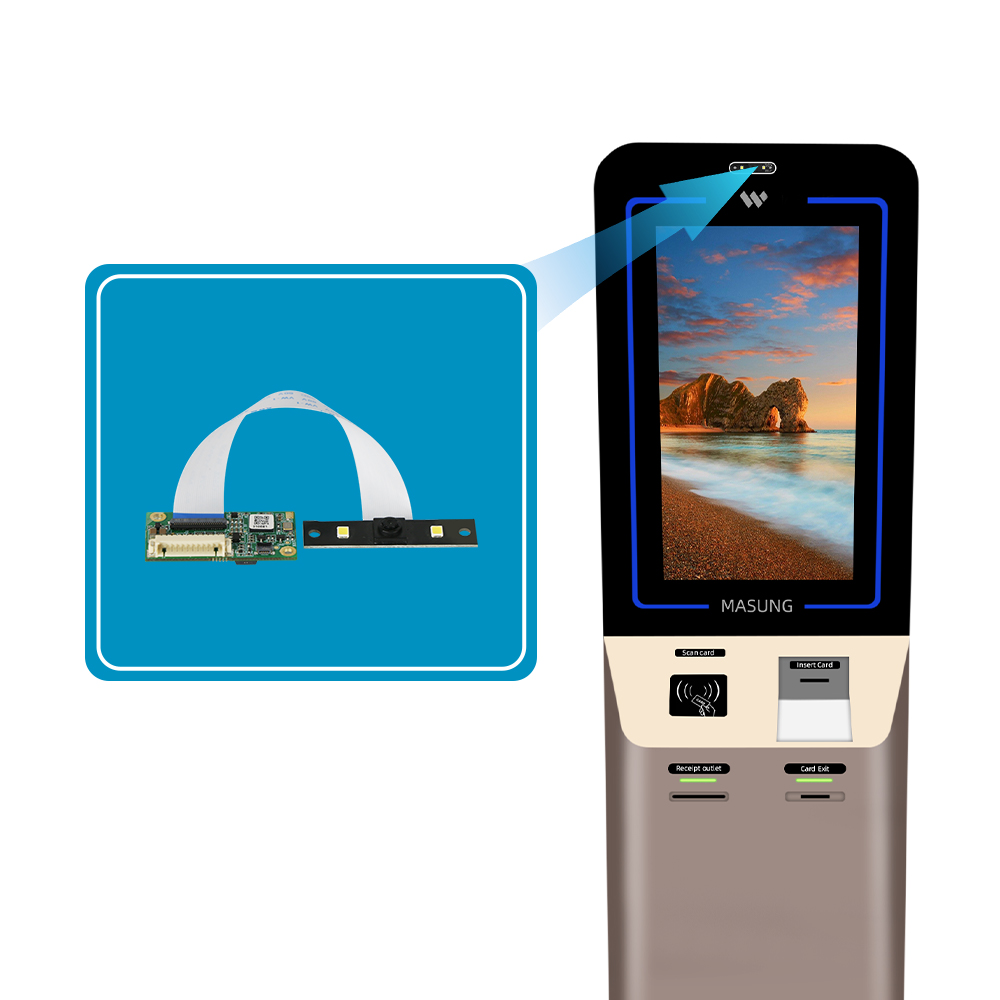

Split design-The overall thickness of the lens board is 3mm. The lens board and the decoding board can be connected through 24-pin FPC wires of any length, making the structure more easy to integrate.
Compatible with both paper and mobile phone codes-Compatible with both paper and mobile phones, it supports both one-dimensional and two-dimensional QR code scanning, making it more widely applicable.
Leading decoding technology-Self-developed core technology, fast response, rapid development and customized requirements.
Wide-angle lens-With a relatively large Angle, it scans a closer and closer depth of field than traditional scanning heads Close to users' usage habits.
Split design-The overall thickness of the lens board is 3mm. The lens board and the decoding board can be connected through 24-pin FPC wires of any length, making the structure more easy to integrate.
Compatible with both paper and mobile phone codes-Compatible with both paper and mobile phones, it supports both one-dimensional and two-dimensional QR code scanning, making it more widely applicable.
| Quantity: | |
|---|---|
-
MS-2104
-
MASUNG
Meet the next generation of integration-ready scanning technology with our advanced Barcode Scanner Lens Board. This innovative solution is built upon self-developed, leading decoding technology, ensuring exceptionally fast response times and the flexibility for rapid development and customization. Its core advantage lies in a revolutionary split design, separating the ultra-slim 3mm lens board from the decoding board. This allows the two components to be connected via a 24-pin FPC wire of any length, providing unparalleled freedom for embedding into the most compact and uniquely shaped devices.
Engineered for superior performance, the scanner features a high-quality 640 x 480 CMOS image sensor and a specialized wide-angle lens. This optical design creates a closer and wider field of view, aligning perfectly with common user habits for a more intuitive scanning experience. It effortlessly decodes a comprehensive range of 1D and 2D symbologies, from ubiquitous UPC and Code 128 to QR Codes and Data Matrix, making it fully compatible with both traditional paper labels and modern mobile phone screens.
Versatility and ruggedness are at the heart of its design. Despite its compact dimensions, the module delivers a robust performance with a depth of field suitable for most applications, such as reading a 10mil QR code from 30mm to 100mm away. It supports multiple interface options including USB, RS232, and TTL, ensuring easy connectivity to a wide array of host systems. Built to endure demanding environments, it operates reliably in temperatures from -20°C to +60°C and can withstand ambient light up to 100,000 lux.
This lens board is the ideal choice for OEMs and integrators designing self-service kiosks, portable payment systems, and smart retail terminals. Its unique split architecture solves complex spatial constraints, while its wide compatibility with both paper and digital codes future-proofs your applications. By combining a user-centric wide-angle lens, industrial-grade durability, and leading decoding intelligence, this component provides a powerful, flexible, and easy-to-integrate scanning solution that pushes the boundaries of what's possible in modern device design.
Performance performance | Image sensors | 640 X 480 CMOS | |
Illumination | White light LED | ||
Symbologies | 2D | PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,etc | |
1D | UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar, Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal,etc | ||
Resolution | ≥5mil | ||
Depth of field | Code 128 10mil | 40~150mm | |
QR 10mil | 30~100mm | ||
DM15mil | 30~120mm | ||
Symbol Contrast | ≥25% | ||
Scan Angle | Skew ± 50°, Pitch ±50°, Roll 360° | ||
Physical | interface | USB, RS232, TTL, | |
Dimensions (mm) | 43*10*3mm 37*19*7mm | ||
Working voltage | DC 3.3-5V | ||
Rated Current | 500mA | ||
Environmental | Operating temperature | -20℃~+60℃ | |
Storage temperature | -40℃~+80℃ | ||
humidity | 5%~95%（ non-condensing ） | ||
Ambient lighting | 0~100,000LUX | ||
Drop | 1.2m | ||
