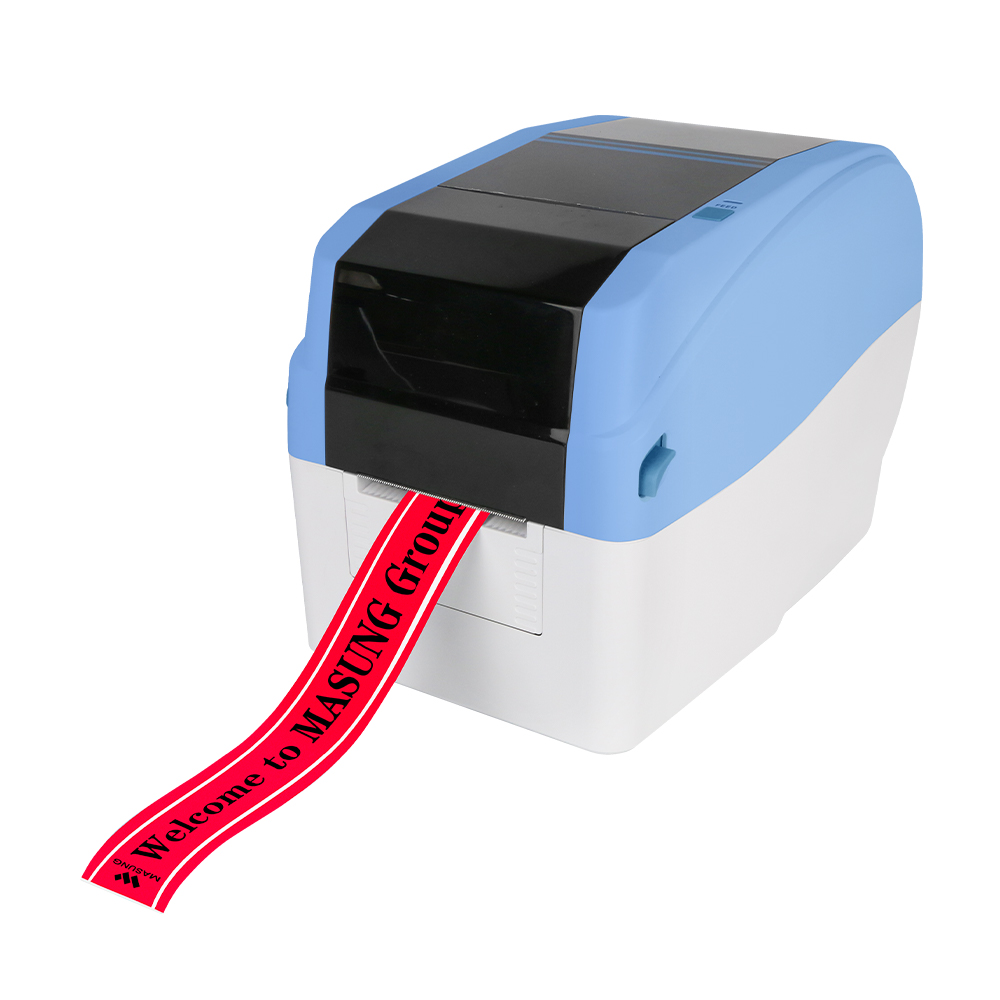

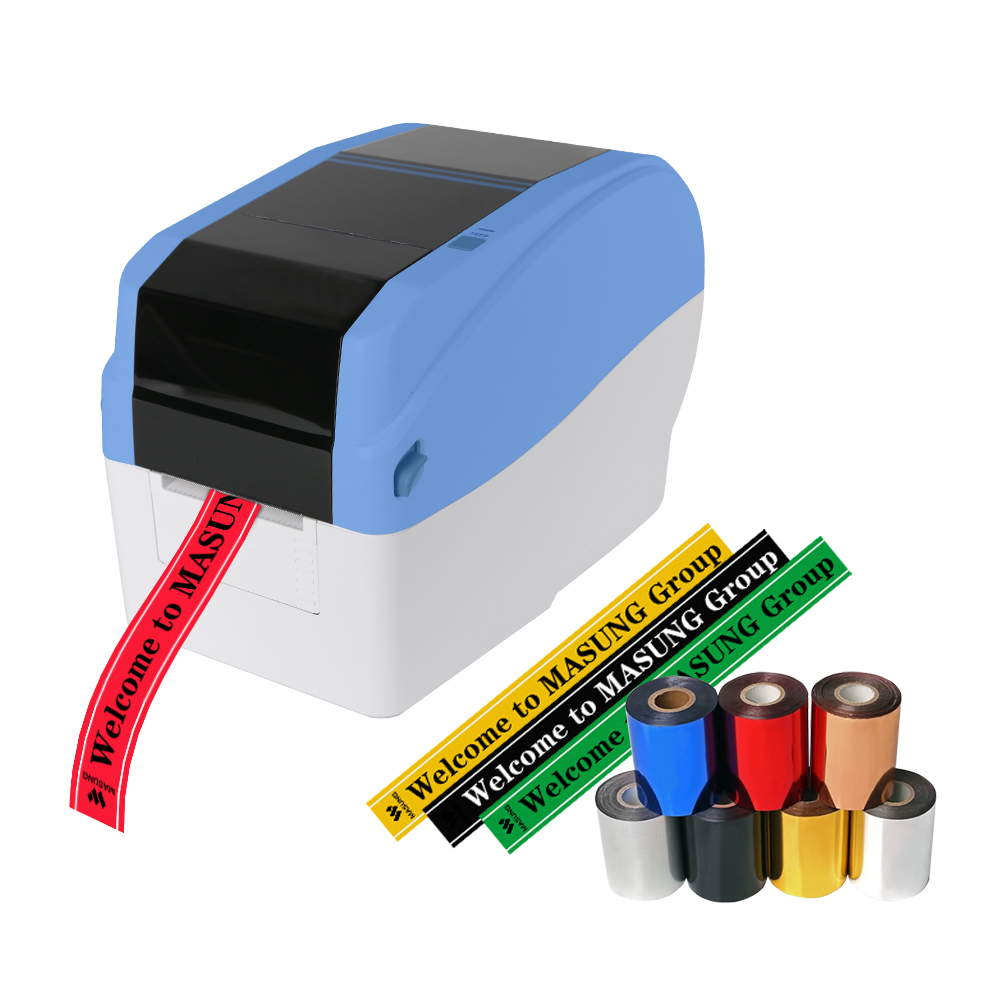

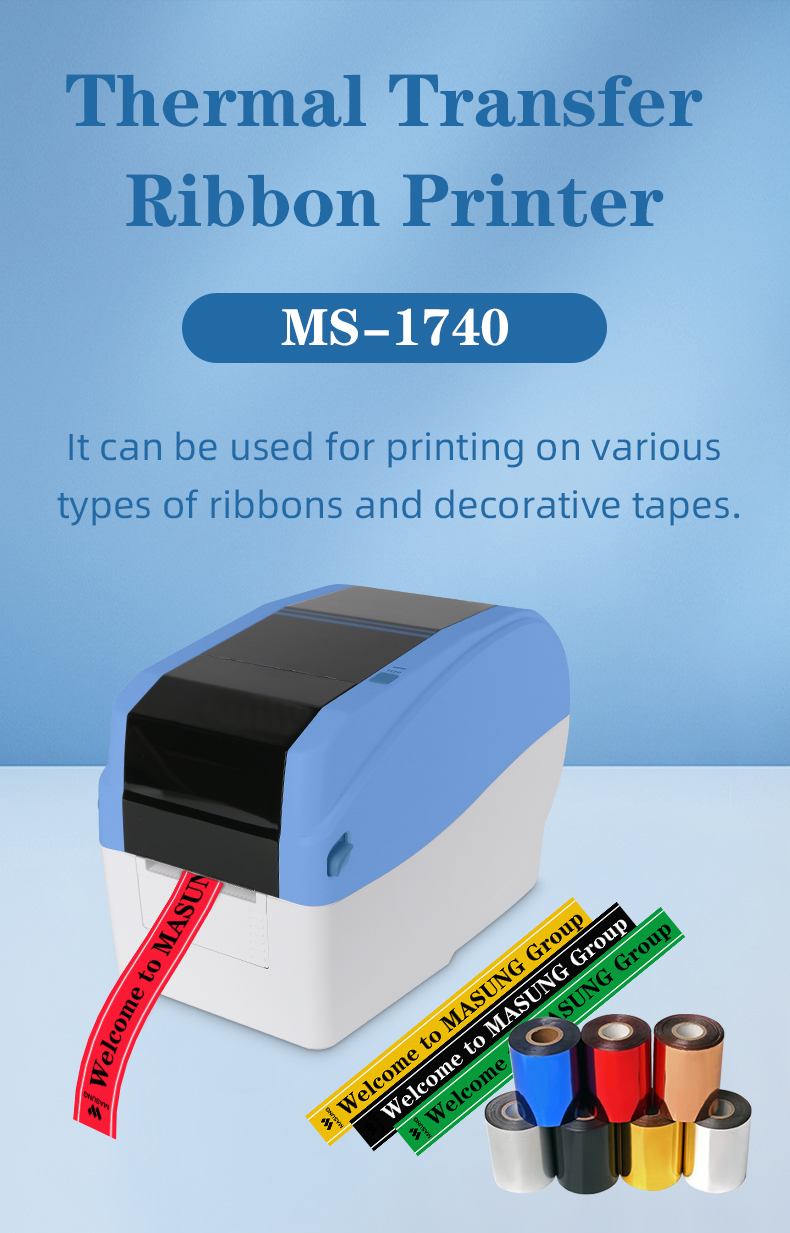

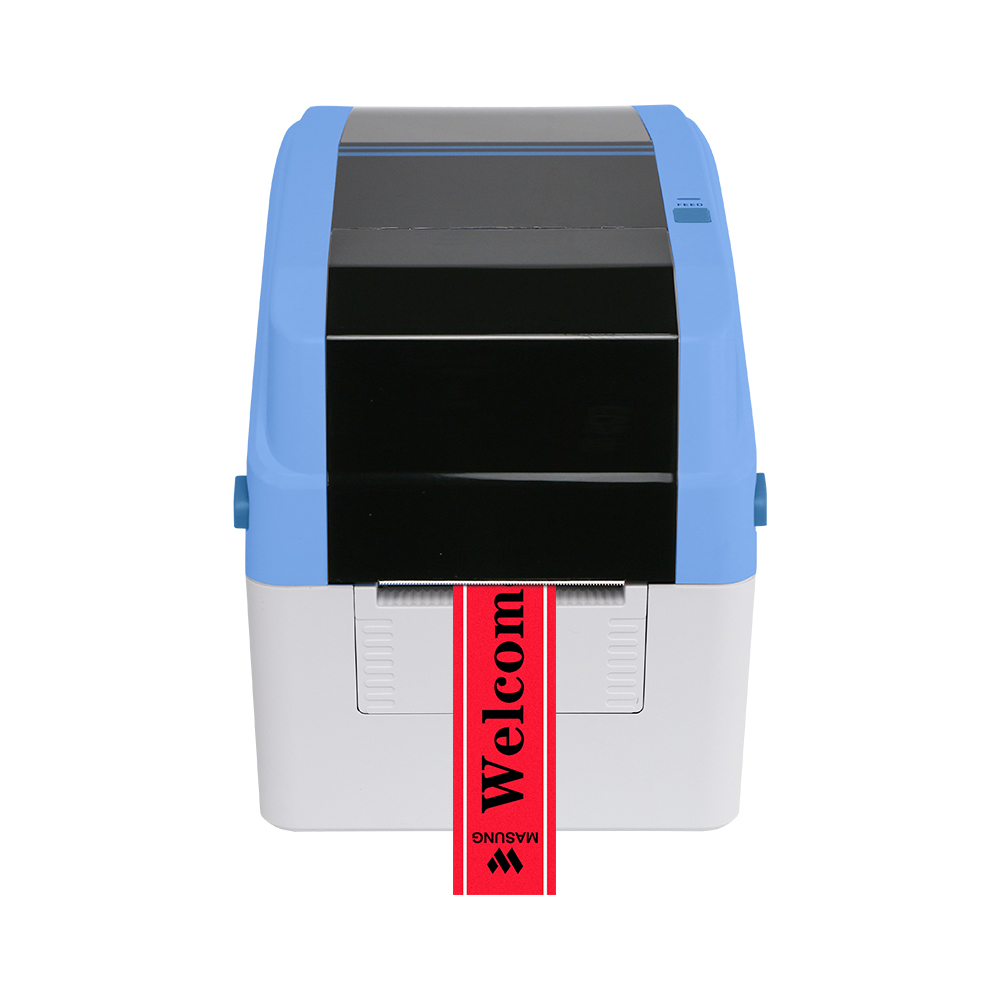

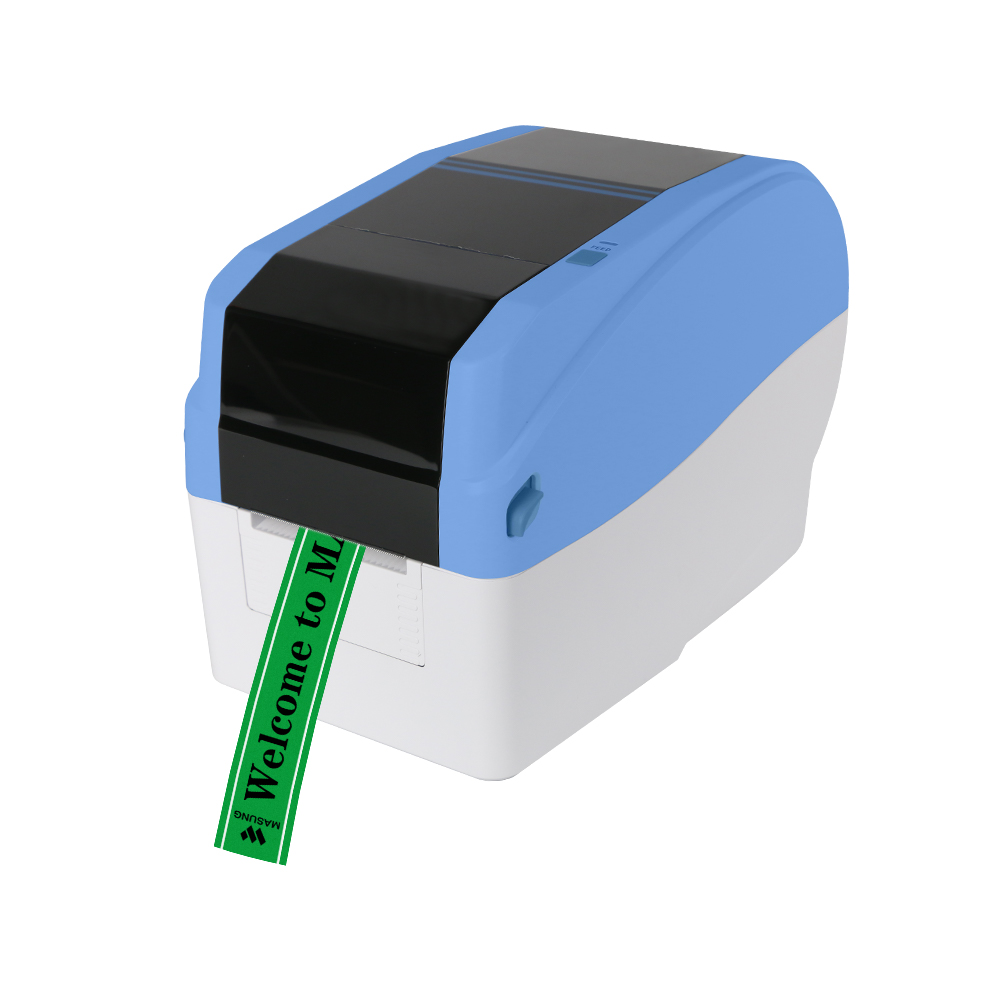

Masung MS-1740, Customizable Ribbon Label Maker Printer with Auto/Partial Cutter
Thermal Transfer Printer for Ribbon Making and Printing Is Highly Customizable:
1. The auto cutter of the ribbon printer can be made in whole or partial cut mode per your preference.
2. You have the option to connect the ribbon maker via USB port, Bluetooth, Wi-Fi, or a combination.
3. The width of the paper roll is also customizable in accordance with the various common standard sizes.
2. You have the option to connect the ribbon maker via USB port, Bluetooth, Wi-Fi, or a combination.
3. The width of the paper roll is also customizable in accordance with the various common standard sizes.
| Quantity: | |
|---|---|
-
MS-1740
-
Masung
The MS-1740 ribbon maker features high-resolution printing of 300 DPI. It adopts the thermal transfer printing method, featuring a maximum printing speed of 6 inches per second. Printed text and patterns by the MS-1740 are sharp and clear, and it supports the adjustment of printing density.
Model | MS-1740 |
Product Name | Customizable Ribbon Label Maker |
Paper Feed Method | Manually feed the Paper and adjust the limit module. |
Resolution | 300DPI |
Printing Speed | 6inch/s(MAX) |

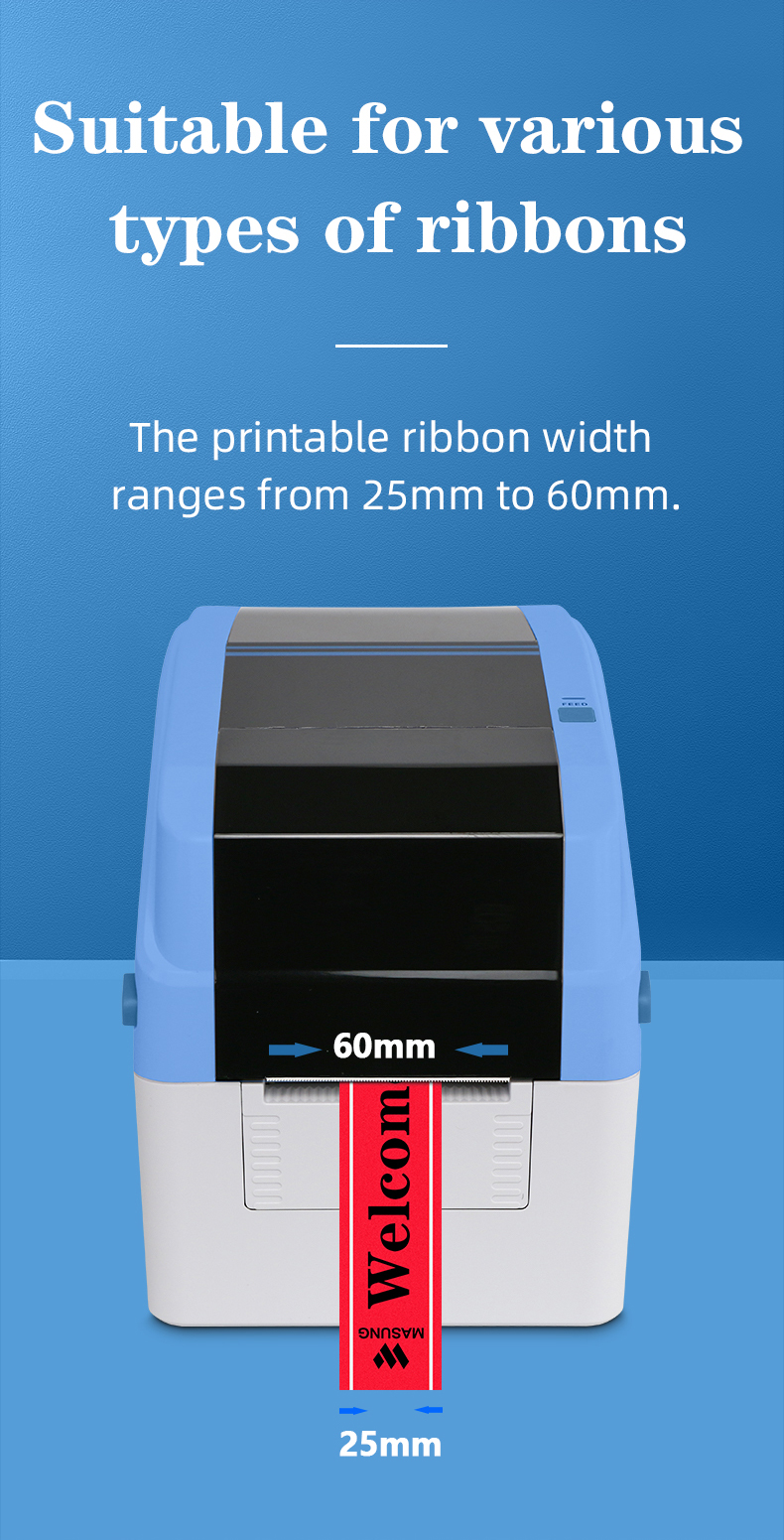

Adjustable Paper Width | 25mm- 60mm（MAX） |
Printable Width | 26-54mm |
Ribbon Type | mixed-based |
Communication Interface | USB, Bluetooth, Wi-Fi |
Operating Voltage and Current | Input: AC 100-240V,1.5A, 50-60Hz Output: DC 24V, 2.5A |
Operating Temperature | 5℃ - 40℃ (no condensation) |
Operating Relative Humidity | 25~85%RH (no condensation) |
Storage Temperature (Whole Machine) | -20~60℃ (no condensation) |
Storage Temperature (Ribbon) | -10~40℃ (no condensation) |
Storage Relative Humidity | 10~90%RH (no condensation) |
Net Weight | 1.65KG |

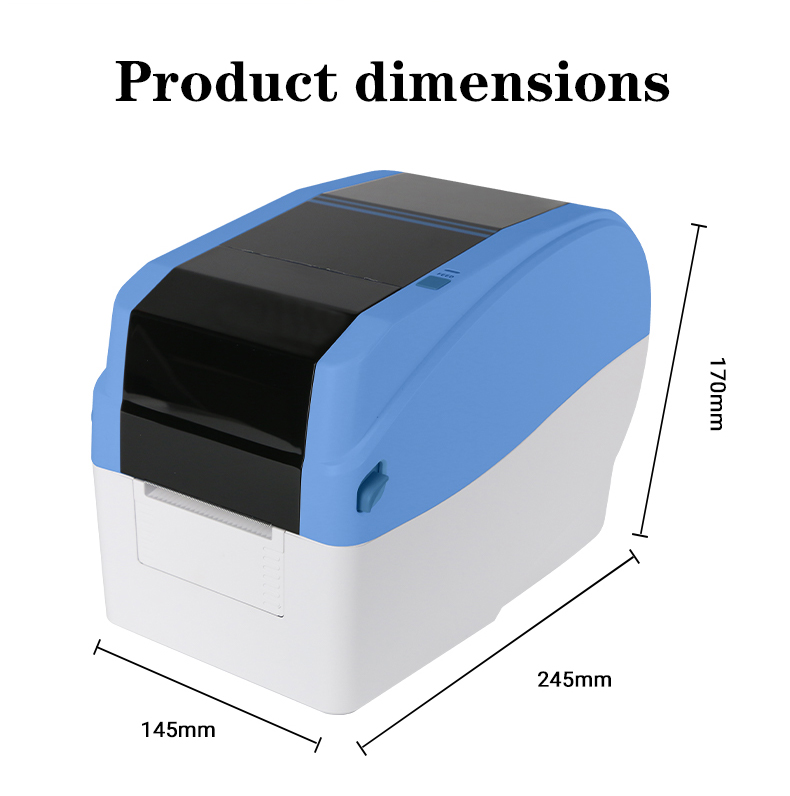

Overall Dimensions | 245mm(D)x145mm(W)x170mm(H) |
Operation precautions of the MS-1740 Thermal Transfer Printer for Ribbon:
1. It's not advised to manually flip or press the print head of the ribbon maker with force.
2. It's not advised to use the ribbon label printer in a humid environment to avoid personal injury.
3. It is strictly forbidden for children to operate this thermal printer for ribbon to avoid damage to it.
4. Before turning on the label ribbon printer, please check whether the power cord is safely plugged.
5. Before sending data, be sure to check the ribbon label maker is set.
6. The ribbon label printer will not receive new data when it is executing a printing task. Only after the printing is completed and the next batch of ribbons is automatically loaded can new task data be received normally. Otherwise, errors are prone to occur.
8. If the ribbon label printer is planned not to be used for a long time, please unplug all connecting cables; otherwise, the printer is easily damaged.
9. Do not disassemble or drag the ribbon printer at will. If a fault occurs, please turn off the power and contact us immediately.
11. Foreign objects (staples, metal fragments, liquids, etc.) should be prevented from entering the ribbon printing machine; otherwise, it may cause electric shock or machine malfunction.
12. Do not touch the metal part of the print cable connector or the print head. Do not touch when the print head is working.
13. Do not use sharp tools such as tweezers to scratch the thermal plate of the print head and sensor; otherwise, it will affect the normal use of the printer.
